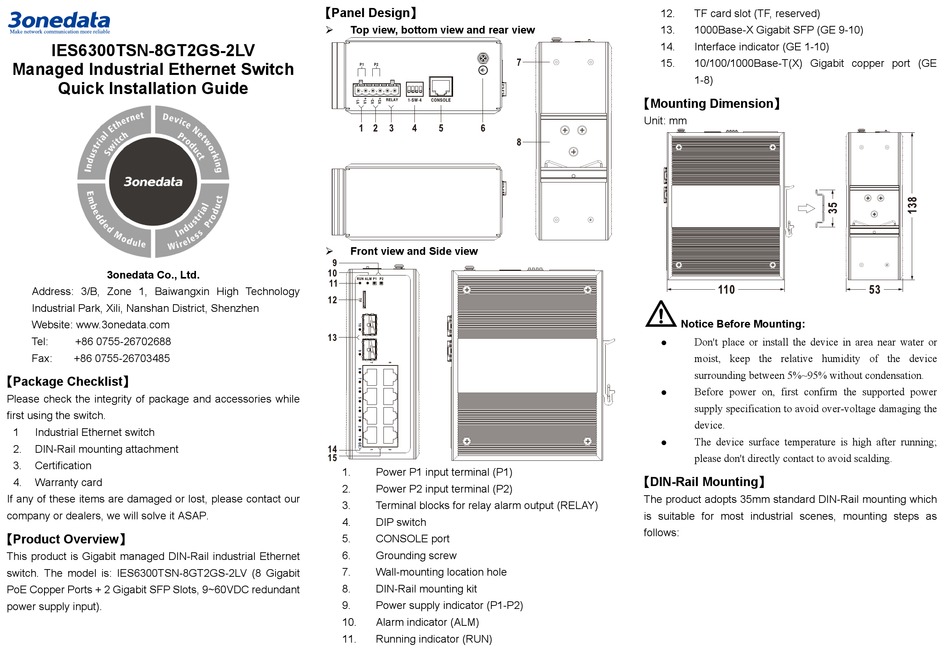

IES6300TSN-8GT2GS-2LV
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
Website: www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485

【Package Checklist】

Please check the integrity of package and accessories while
first using the switch.
1
Industrial Ethernet switch
2.
DIN-Rail mounting attachment
3.
Certification
4.
Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

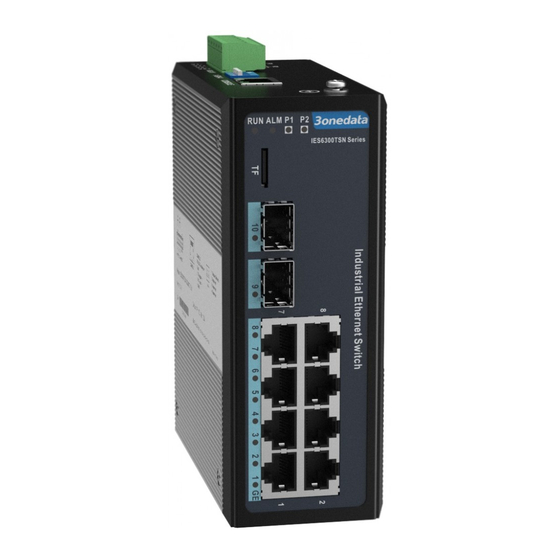

This product is Gigabit managed DIN-Rail industrial Ethernet
switch. The model is: IES6300TSN-8GT2GS-2LV (8 Gigabit
PoE Copper Ports + 2 Gigabit SFP Slots, 9~60VDC redundant
power supply input).

【Panel Design】

Top view, bottom view and rear view
Front view and Side view
1.
Power P1 input terminal (P1)
2.
Power P2 input terminal (P2)
3.
Terminal blocks for relay alarm output (RELAY)
4.
DIP switch
5.
CONSOLE port
6.
Grounding screw
7.
Wall-mounting location hole
8.
DIN-Rail mounting kit
9.
Power supply indicator (P1-P2)
10.
Alarm indicator (ALM)
11.
Running indicator (RUN)
12.
TF card slot (TF, reserved)
13.
1000Base-X Gigabit SFP (GE 9-10)
14.
Interface indicator (GE 1-10)
15.
10/100/1000Base-T(X) Gigabit copper port (GE
1-8)

【Mounting Dimension】

Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;
please don't directly contact to avoid scalding.

【DIN-Rail Mounting】

The product adopts 35mm standard DIN-Rail mounting which
is suitable for most industrial scenes, mounting steps as
follows:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IES6300TSN-8GT2GS-2LV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 3onedata IES6300TSN-8GT2GS-2LV

  • Page 1 CONSOLE port Grounding screw This product is Gigabit managed DIN-Rail industrial Ethernet Wall-mounting location hole switch. The model is: IES6300TSN-8GT2GS-2LV (8 Gigabit DIN-Rail mounting kit PoE Copper Ports + 2 Gigabit SFP Slots, 9~60VDC redundant Power supply indicator (P1-P2) power supply input).
  • Page 2 【Checking LED Indicator】 independent DC power supply systems, P1 and P2, and supports dual power The device provides LED indicators to monitor its operating supply redundancy. The power supply status, which has simplified the overall troubleshooting function non-polarity process. The function of each LED is described in the table connection, and the device can still work below: normally after the reverse connection.
  • Page 3 TF card slot (reserved) 1 TF(Micro SD) card slot, reserved Alarm interface 1 relay alarm output, 6-pin 5.08mm pitch terminal blocks, relay occupies the right 2 pins, current carrying capacity 1A@30VDC or 0.3A@125VAC CONSOLE port CLI command line management port (RS-232), RJ45 Indicator RUN indicator, ALM indicator, Click “Login”...
