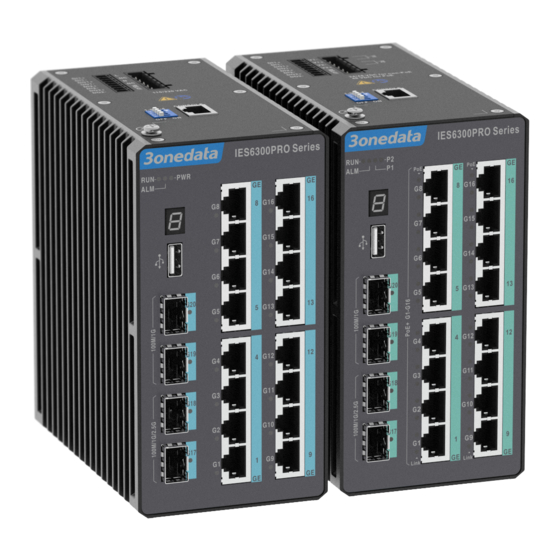

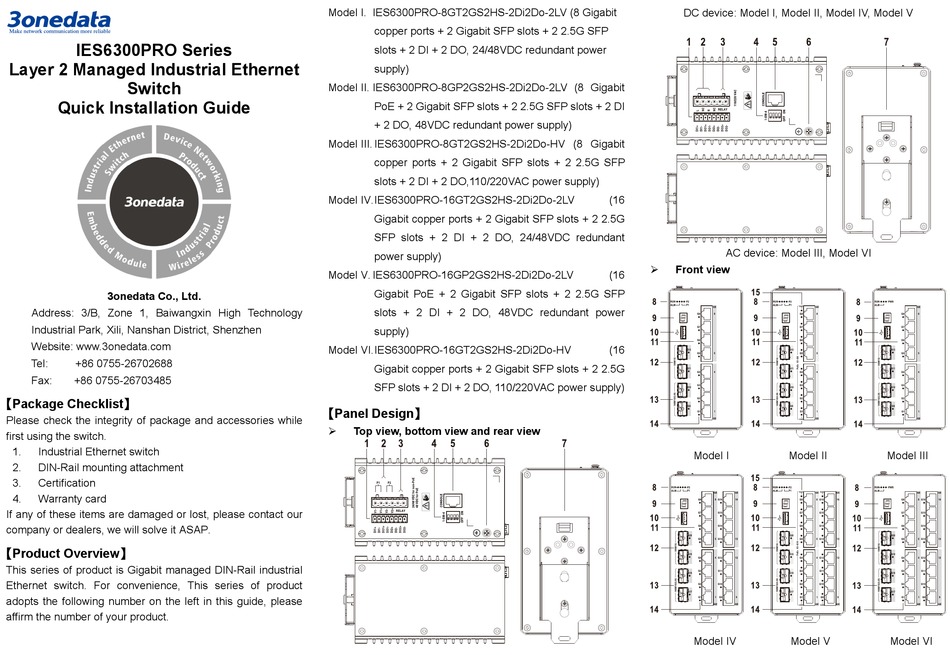

IES6300PRO Series
Layer 2 Managed Industrial Ethernet
Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
Website: www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1.
Industrial Ethernet switch
2.
DIN-Rail mounting attachment
3.
Certification
4.
Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This series of product is Gigabit managed DIN-Rail industrial
Ethernet switch. For convenience, This series of product
adopts the following number on the left in this guide, please
affirm the number of your product.
Model I. IES6300PRO-8GT2GS2HS-2Di2Do-2LV (8 Gigabit
copper ports + 2 Gigabit SFP slots + 2 2.5G SFP
slots + 2 DI + 2 DO, 24/48VDC redundant power
supply)
Model II. IES6300PRO-8GP2GS2HS-2Di2Do-2LV (8 Gigabit
PoE + 2 Gigabit SFP slots + 2 2.5G SFP slots + 2 DI
+ 2 DO, 48VDC redundant power supply)
Model III. IES6300PRO-8GT2GS2HS-2Di2Do-HV (8 Gigabit
copper ports + 2 Gigabit SFP slots + 2 2.5G SFP
slots + 2 DI + 2 DO,110/220VAC power supply)
Model IV. IES6300PRO-16GT2GS2HS-2Di2Do-2LV
Gigabit copper ports + 2 Gigabit SFP slots + 2 2.5G
SFP slots + 2 DI + 2 DO, 24/48VDC redundant
power supply)
Model V. IES6300PRO-16GP2GS2HS-2Di2Do-2LV
Gigabit PoE + 2 Gigabit SFP slots + 2 2.5G SFP
slots + 2 DI + 2 DO, 48VDC redundant power
supply)
Model VI. IES6300PRO-16GT2GS2HS-2Di2Do-HV
Gigabit copper ports + 2 Gigabit SFP slots + 2 2.5G
SFP slots + 2 DI + 2 DO, 110/220VAC power supply)
【Panel Design】
Top view, bottom view and rear view
DC device: Model I, Model II, Model IV, Model V
(16
AC device: Model III, Model VI
Front view
(16
(16
Model I
Model II
Model IV
Model III
Model V
Model VI
