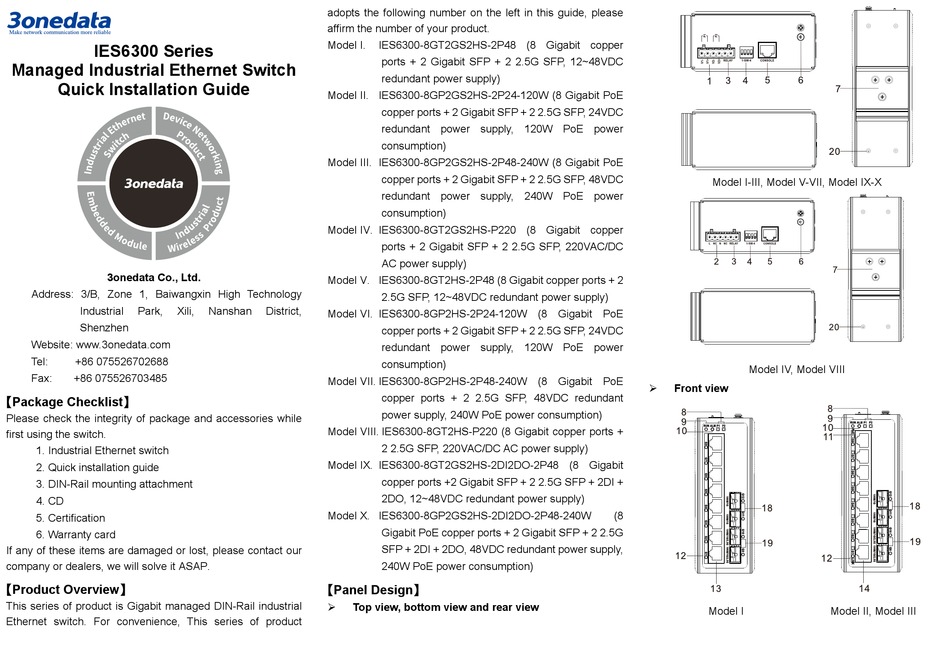

IES6300 Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Xili,
Shenzhen
Website: www.3onedata.com
Tel:
+86 075526702688
Fax:
+86 075526703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch
2. Quick installation guide
3. DIN-Rail mounting attachment
4. CD
5. Certification
6. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

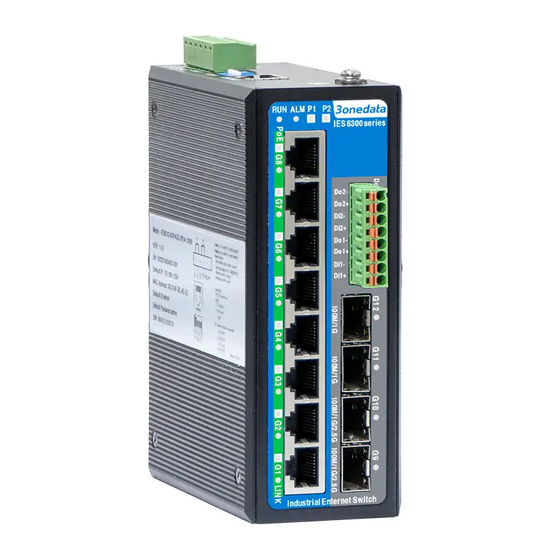

【Product Overview】
This series of product is Gigabit managed DIN-Rail industrial
Ethernet switch. For convenience, This series of product
adopts the following number on the left in this guide, please
affirm the number of your product.
Model I.
IES6300-8GT2GS2HS-2P48 (8 Gigabit copper
ports + 2 Gigabit SFP + 2 2.5G SFP, 12~48VDC
redundant power supply)
Model II. IES6300-8GP2GS2HS-2P24-120W (8 Gigabit PoE
copper ports + 2 Gigabit SFP + 2 2.5G SFP, 24VDC
redundant power supply, 120W PoE power
consumption)
Model III. IES6300-8GP2GS2HS-2P48-240W (8 Gigabit PoE
copper ports + 2 Gigabit SFP + 2 2.5G SFP, 48VDC
redundant power supply, 240W PoE power
consumption)
Model IV. IES6300-8GT2GS2HS-P220 (8 Gigabit copper
ports + 2 Gigabit SFP + 2 2.5G SFP, 220VAC/DC
AC power supply)
Model V. IES6300-8GT2HS-2P48 (8 Gigabit copper ports + 2
2.5G SFP, 12~48VDC redundant power supply)
Nanshan
District,
Model VI. IES6300-8GP2HS-2P24-120W (8 Gigabit PoE
copper ports + 2 Gigabit SFP + 2 2.5G SFP, 24VDC
redundant power supply, 120W PoE power
consumption)
Model VII. IES6300-8GP2HS-2P48-240W (8 Gigabit PoE
copper ports + 2 2.5G SFP, 48VDC redundant
power supply, 240W PoE power consumption)
Model VIII. IES6300-8GT2HS-P220 (8 Gigabit copper ports +
2 2.5G SFP, 220VAC/DC AC power supply)
Model IX. IES6300-8GT2GS2HS-2DI2DO-2P48 (8 Gigabit
copper ports +2 Gigabit SFP + 2 2.5G SFP + 2DI +
2DO, 12~48VDC redundant power supply)
Model X. IES6300-8GP2GS2HS-2DI2DO-2P48-240W
Gigabit PoE copper ports + 2 Gigabit SFP + 2 2.5G
SFP + 2DI + 2DO, 48VDC redundant power supply,
240W PoE power consumption)
【Panel Design】
Top view, bottom view and rear view
Model I-III, Model V-VII, Model IX-X
Model IV, Model VIII
Front view
(8
Model I
Model II, Model III
