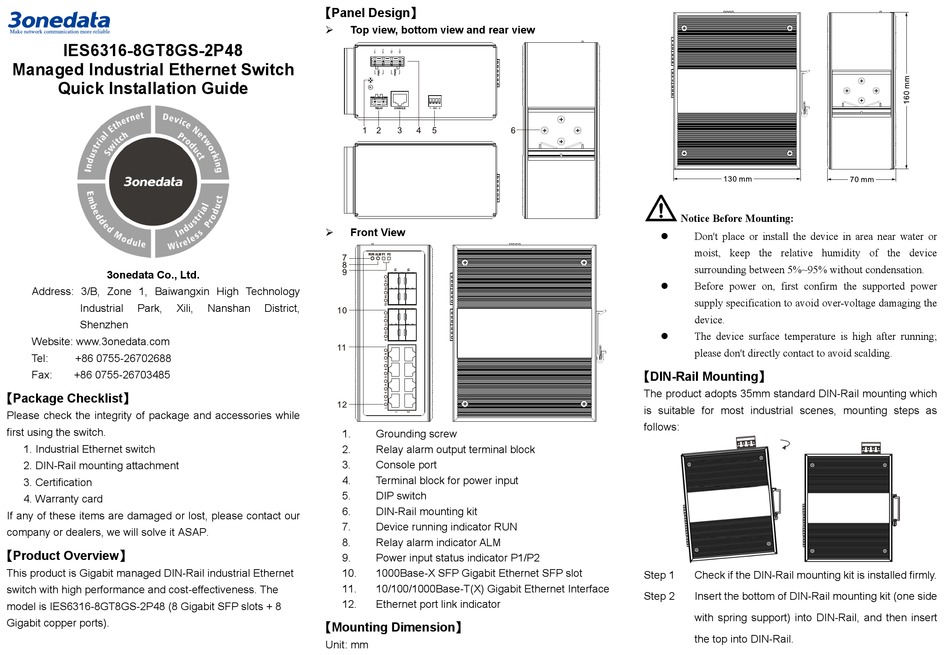

3onedata IES6316-8GT8GS-2P48 Quick Installation Manual

IES6316-8GT8GS-2P48
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485

【Package Checklist】

Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch
2. DIN-Rail mounting attachment
3. Certification
4. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

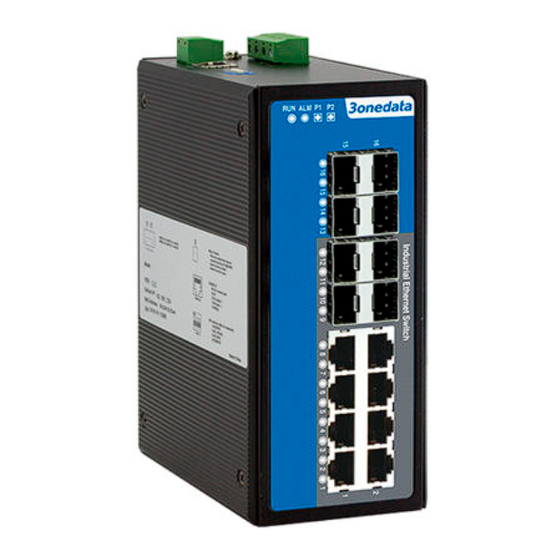

This product is Gigabit managed DIN-Rail industrial Ethernet
switch with high performance and cost-effectiveness. The
model is IES6316-8GT8GS-2P48 (8 Gigabit SFP slots + 8
Gigabit copper ports).

【Panel Design】

Top view, bottom view and rear view

Front View

Nanshan District,
1. Grounding screw
2. Relay alarm output terminal block
3. Console port
4. Terminal block for power input
5. DIP switch
6. DIN-Rail mounting kit
7. Device running indicator RUN
8. Relay alarm indicator ALM
9. Power input status indicator P1/P2
10. 1000Base-X SFP Gigabit Ethernet SFP slot
11. 10/100/1000Base-T(X) Gigabit Ethernet Interface
12. Ethernet port link indicator

【Mounting Dimension】

Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.

【DIN-Rail Mounting】

The product adopts 35mm standard DIN-Rail mounting which
is suitable for most industrial scenes, mounting steps as
follows:
Step 1 Check if the DIN-Rail mounting kit is installed firmly.
Step 2 Insert the bottom of DIN-Rail mounting kit (one side
with spring support) into DIN-Rail, and then insert
the top into DIN-Rail.
