CAME ZC3N Installation Manual

Control panel for 230 v gearmotors

Hide thumbs

Table Of Contents

Quick Links

Download this manual

Control panel for 230 V gearmotors

FA02003-EN

ZC3N

ZC3NC

INSTALLATION MANUAL

English

Table of Contents

Need help?

Do you have a question about the ZC3N and is the answer not in the manual?

Questions and answers

Summary of Contents for CAME ZC3N

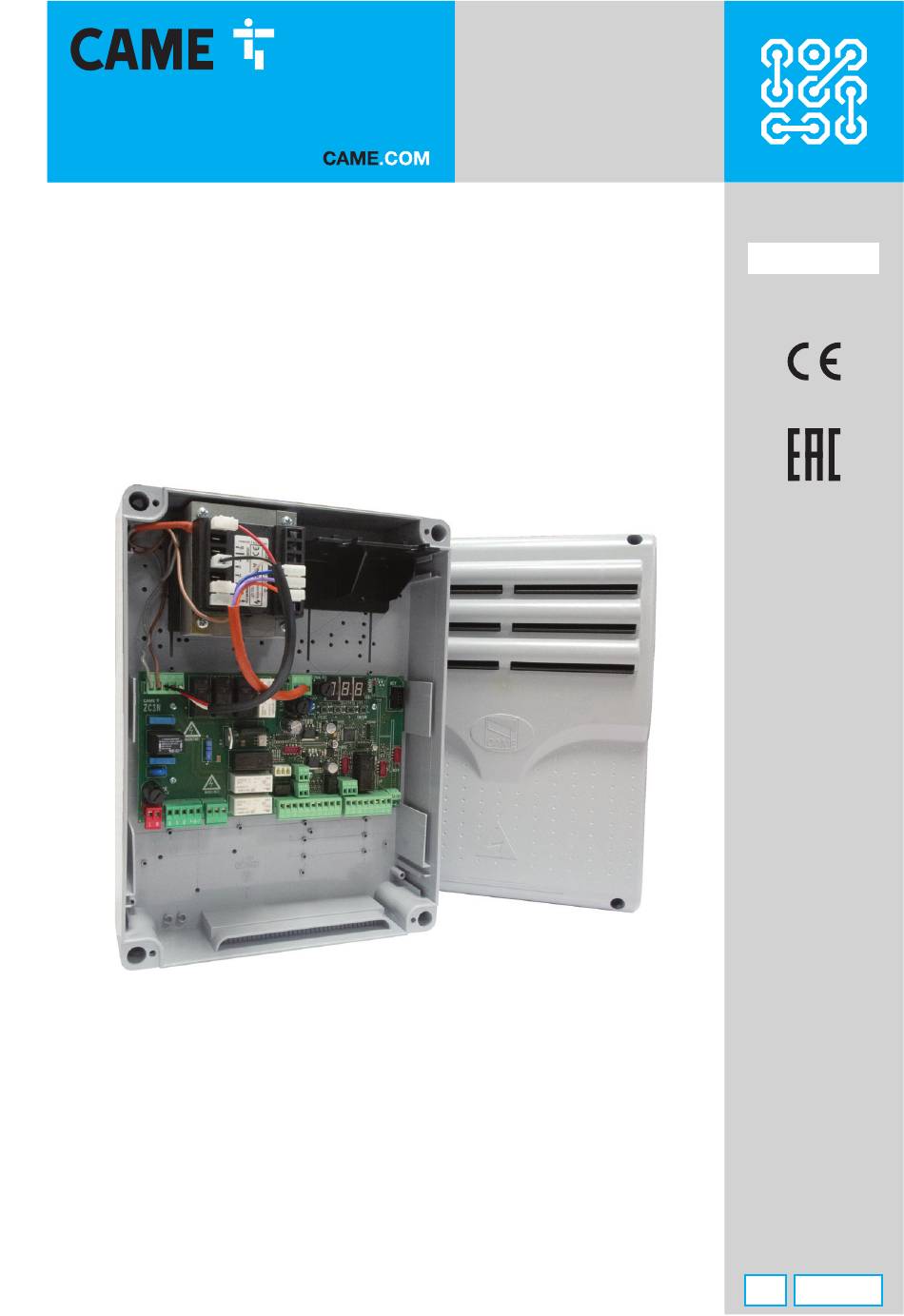

Page 1 Control panel for 230 V gearmotors FA02003-EN ZC3N ZC3NC INSTALLATION MANUAL English...
Page 2 ﬁ nal installation to comply with the Machinery Directive (2006/42/ EC) and with the reference harmonised technical standards are speciﬁ ed in the general CAME product catalogue or on the website www.came.com. • Check that the temperature ranges given are suitable for the installation site. • Make sure that no direct jets of water can wet the product at the installation site (sprinklers, water cleaners, etc.).
Page 3 • The manufacture date is provided in the production batch printed on the product label. If necessary, contact us at https://www.came.com/global/en/contact-us. • The general conditions of sale are given in the offi cial CAME price lists.
Page 4: Dismantling And Disposal
UNI EN ISO 14001 standard to ensure that the environment is respected and safeguarded. Please continue safeguarding the environment. At CAME we consider it one of the fundamentals of our operating and market strategies. Please follow these brief disposal guidelines: DISPOSING OF THE PACKAGING The packaging materials (cardboard, plastic, etc.) can be disposed of easily as solid urban waste, separated for recycling.
Page 5: Fuse Table
CAME technical manual. The average product life is also aff ected, including signiﬁ cantly, by other variables such as, but not limited to, climatic and environmental conditions. The average product life should not be confused with the product warranty.
Page 6: Description Of Parts
Description of parts...
Page 7 Terminal board for connecting control devices Memory Roll card connector Terminal board for connecting the signalling devices Connector for CAME KEY device / Wi-Fi – BLE Gateway Terminal board for motor connection and capacitor / Slave module Power supply terminal board...
Page 8 Size Cable types and minimum thicknesses Cable length (m) up to 20 from 20 to 30 Flashing beacon 230 V AC 2 x 1 mm² 2 x 1 mm² Electric lock or electromagnetic lock 2 x 1 mm² 2 x 1 mm² TX Photocells 2 x 0.5 mm²...
Page 9: Installation
INSTALLATION Preparing the control panel Separate the parts of the control panel. Assemble the pressure hinges. Insert the hinges into the box (either on the left or the right) and fasten them using the screws and washers supplied. The hinges slide to rotate. Drill the pre-marked holes.
Page 10 Fastening the control panel Drill the ﬁ xing points in the control panel in a protected area. Fasten the base using screws and plugs. Use Phillips round head screws (maximum diameter 6 mm). Insert the cable gland with the corrugated tubes for threading the electrical cables...
Page 11: Electrical Connections
ELECTRICAL CONNECTIONS Preparing the electrical cables Connect all wires and cables in compliance with the law. Use cable glands to connect the devices to the control panel. One of these must be used exclusively for the power supply cable.
Page 12 Mains power supply (230 V AC - 50/60 Hz) L - Phase N - Neutral F - Line fuse ZC3N ZC3NC Connecting up the gearmotor Gearmotor without limit switch Gearmotor with limit switch If unused, short circuit the limit-switch terminals.
Page 13 Adjusting the motor torque To vary the motor torque, move the corresponding Faston terminal to one of the four positions; from 1 (minimum) to 4 (maximum). Capacitor connection...
Page 14 Connecting accessories Power supply output for accessories (24 V) Maximum capacity of contacts The total power of the outputs listed below must not exceed the maximum output power [Accessories] Device Output Power supply (V) Maximum power (W) Accessories 10 - 11 24 AC Passage-open warning light 10 - 5...
Page 15 Command and control devices STOP button (NC contact) See the [F1 – Total stop] function. Control device (NO contact) Open command When the [F6 – Hold-to-run] function is active, a control device must be set to OPEN. Control device (NO contact) Partial Opening command See function [F71 - Adjusting partial opening].
Page 16: Signalling Devices
Signalling devices Flashing beacon It ﬂ ashes when the operator opens and closes. Additional light It increases the light in the manoeuvring area. See function [F18 - Additional light]. Operator status warning light (Passage-open warning light) See function [F10 - Passage-open warning light]. Safety devices Connect the safety devices to the C1 and/or CX inputs.
Page 17 DXR/DLX photocells 10 11 TS 1 2 C1 CX 10 11 TS 1 2 C1 CX 10 11 10 11 10 11 10 11 RX TX RX TX DXR/DLX DXR/DLX DFWN sensitive edge 10 11 TS 1 2 C1 CX C NO NC DFWN Electric lock or electromagnetic lock...
Page 18: Getting Started
PROGRAMMING Programming button functions ESC button The ESC button is used to perform the operations described below. - Exit the menu - Delete the changes - Go back to the previous screen - Stop the operator (outside the programming menu) <...
Page 19 OFF (Default) C1 = Reopen while closing (photocells) C3 = Partial stop Only with [F19 - Automatic close] activated. C4 = Obstacle standby (photocells) F2 CX input Associate a function with the CX input. C7 = Reopen while closing (sensitive edges).
Page 20 0 = Warning light on (default) - The light stays on when the operator is moving or open. 1 = Warning light ﬂ ashing - The warning light ﬂ ashes every half a Passage-open second when the passage is opening It notiﬁ...
Page 21 Set the time before automatic closure after a partial opening command. Automatic The function does not work if any of the safety closing after 1 to 180 seconds (Default 10) devices are triggered when an obstacle is detected, partial opening after a complete stop, during a power outage or if there is an error.
Page 22 0 = 1200 bps 1 = 2400 bps 2 = 4800 bps 3 = 9600 bps Set the remote connection system communication speed F63 RSE speed 4 = 14400 bps on the RSE port. 5 = 19200 bps 6 = 38400 bps (default) 7 = 57600 bps 8 = 115200 bps OFF (Default)
Page 23 1 = Step-by-step - The ﬁ rst command is to open and the second to close. 2 = Sequential - The ﬁ rst command is to open, the second to STOP, the third to close and the fourth to STOP. 3 = Open Register up to a maximum of 250 users and assign a 4 = Partial opening...
Page 24: Import/Export Data
001 = 100 manoeuvres 010 = 1000 manoeuvres Manoeuvre 100 = 10000 manoeuvres View the number of operator manoeuvres. counter 999 = 99900 manoeuvres CSI = Maintenance work H1 FW version Display the ﬁ rmware version. Import/export data Save user data and system conﬁ guration data on a MEMORY ROLL card.
Page 25: Error Messages
DISPLAY WARNINGS KEY C<n> Wired safety device active The <n> value is associated with the selected parameter for the functions. R7 safety device (sensitive edge) active Total stop active P<n> RIO safety device active The <n> value is associated with the selected parameter for the functions [RIO ED T1 - RIO ED T2] and [RIO PH T1 - RIO PH T2] Passage fully open Passage fully closed...
Page 26: Final Operations
FINAL OPERATIONS Before closing up the casing, check that the cable inlets are sealed to stop insects getting in and to prevent damp.
Page 28 AFFIX THE PRODUCT LABEL FROM THE BOX HERE CAME S.p.A. Via Martiri della Libertà, 15 31030 Dosson di Casier Treviso – Italy Tel. (+39) 0422 4940 Fax (+39) 0422 4941...

This manual is also suitable for:

Zc3nc
