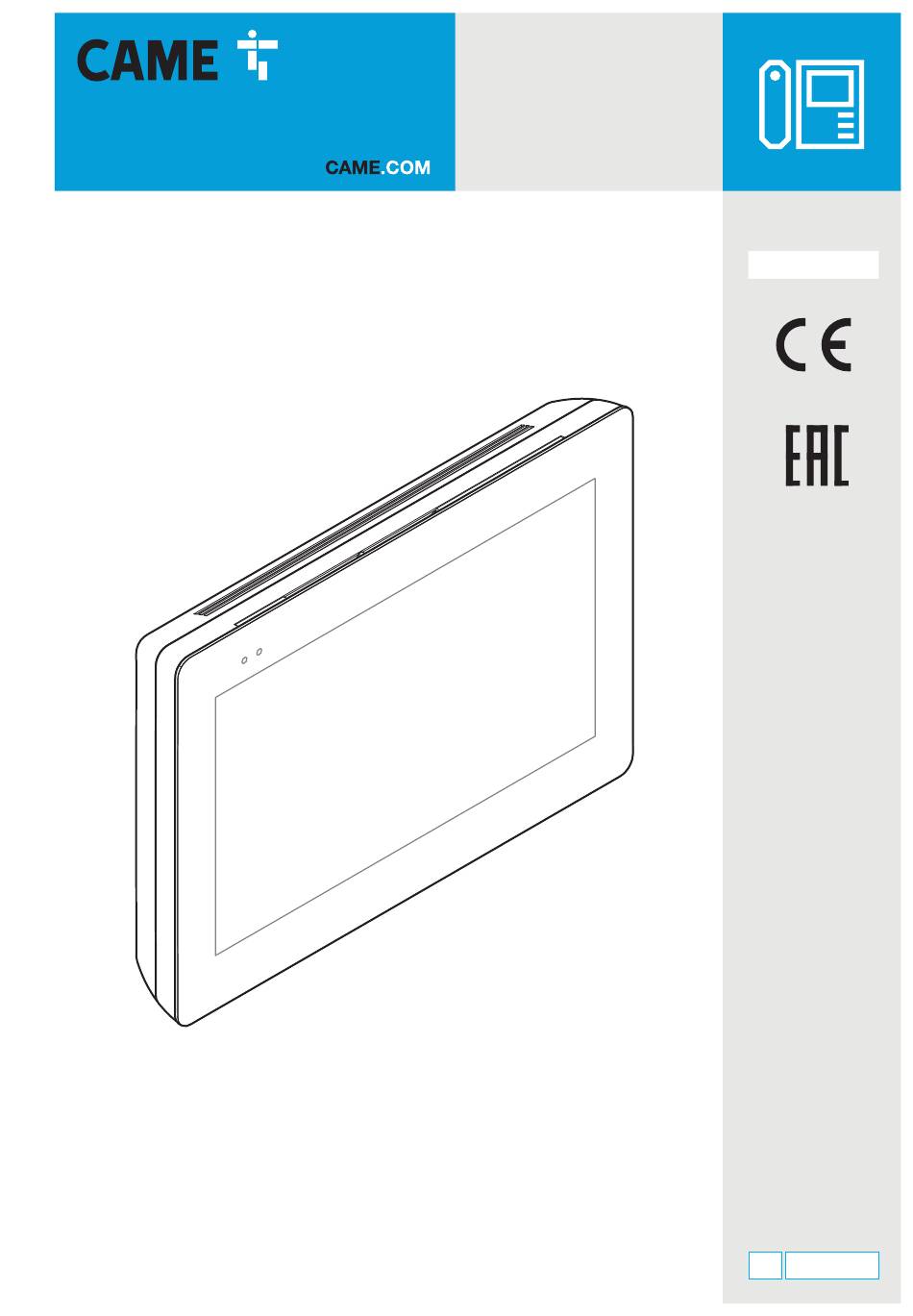

- Page 1 Handsfree entry phone for IP360 system FA01682-EN XTS 7IP WH WIFI XTS 7IP BK WIFI XTS 7IP WH WFBF EN English INSTALLATION AND CONFIGURATION MANUAL...
-
Page 2: General Precautions
• Only use this product for its intended purpose. Any other use is hazardous. Came S.p.A. is not liable for any damage caused by improper, erroneous or unreasonable use. • Only use soft, dry or slightly damp cloths to clean the device. Do not use any chemical products. • Do not obstruct the ventilation or heat dissipation vents or slots. -
Page 3: Description Of Parts
DESCRIPTION Full-touch speaker video intercom for IP360 system, 7˝ TFT touch screen display, Wi-Fi and Graphical User Interface. Description of parts Front view 1 Signaling LED 2 Speaker 3 Touch-screen display 4 Microphone. Rear view 5 Socket for connecting the device to the LAN PoE network. -
Page 4: Technical Data
Technical data Type XTS 7IP WIFI local power supply (V DC) 14 to 18 PoE power supply IEEE 802.3af-PD Maximum draw (mA) 420 series Current draw in stand-by mode (mA) 340 series Stocking temperature (°C)* -25 to +70 Operating temperature (°C) 0 to +40 Protection rating (IP) 30 series... -
Page 5: Installation
INSTALLATION... - Page 6 to make the device's installation more solid, use the supplied screws and dowels to fasten the frame to the wall. Notes on installing indoor receivers connected to the WiFi network Install the indoor receiver: away from any metal objects that may interfere with the signal, or from any devices that generate magnetic fi...
-
Page 7: Examples Of Installation
Examples of installation The Master/Slave confi guration of the devices is programmed using the PCS/XIP software. Single-family system with POE power supply Switch PoE Master Modem router Wi-Fi Slave MTMV/IP Single-family system with local power supplies and internal receiver connected in Wi-Fi VAS/101 Master Modem router Wi-Fi... - Page 8 Multi-family system with an internal receiver for each apartment APARTMENT 4 APARTMENT 3 APARTMENT 2 APARTMENT 1 APARTMENT 4 APARTMENT 3 MODEM MODEM ROUTER Wi-Fi ROUTER Wi-Fi SWITCH PoE APARTMENT 2 APARTMENT 1 MODEM MODEM ROUTER Wi-Fi ROUTER Wi-Fi SWITCH PoE Master Slave MTMV/IP...
- Page 9 (managed by the internal Master receiver of the apartment), whether they are connected to the LAN line or reachable from a Wi-Fi or mobile network using CAME Connect. If a call is made, all the devices programmed to answer the call ring.
- Page 10 (managed by the internal Master receiver of the apartment), whether they are connected to the LAN line or reachable from a Wi-Fi or mobile network using CAME Connect. If a call is made, all the devices programmed to answer the call ring.
- Page 11 A call from the entry panel can ring a maximum of 10 devices, whether they are connected to the LAN line or reachable from a Wi-Fi or mobile network using CAME Connect. If a call is made, all the devices programmed to answer the call ring.
-
Page 12: Advanced Settings
On slave receiver This section requires specifi c know-how in operating the video- Network Network intercom system. Wrong settings CAME Connect SIP Settings may cause partial or even total malfunctions; that is why the Credentials Automatic door opener editing of some parameters is Automatic door opener Confi... - Page 13 Network This section is used to determine how the device connects to the Ethernet Enabled Disabled network. Confi gure Ethernet A Enable/disable the desired connection types Wireless Enabled Disabled B Indicate whether the connection Confi gure WiFi to the gateway take place over the Default gateway Ethernet WiFi...
- Page 14 Wireless connection confi guration H This button is for selecting and setting up a Wifi network. Type of connection WiFi WiFi The icon indicates that the Wi- Confi gure WiFi Fi connection mode is active. Mode DHCP Static IP address Netmask Gateway Save...
- Page 15 CAME Connect (only on master receiver) A Device's univocal code. B For enabling or disabling the VoIP remote control of the video- Keycode intercom call. Enable connection The factory settings require that the Internet service provider connection to CAME Connect be disabled.
-
Page 16: Manual Mode
Serverless IP entry panel, 192.168.1.5 E Choose the type of server the device is connected. All CAME servers are of XIP Server type. Automatic mode Choosing the automatic SIP setting mode and pressing the [Save] button, a wizard is started through which it is possible to choose the server or master device, to which the device must be connected. -
Page 17: Automatic Door Opener
Automatic door opener This function, which is especially useful for businesses, lets you automatically open the entrance once the call- button is pressed on the entry panel. The activation of this function can be programmed to schedule time slots and days of the week. A Touch the button to add a new time slot. -
Page 18: Confi Guring The User Interface
For editing the selected 08:30 - 12:30 element. For eliminating the selected 13:30 - 18:30 element. Touch the Back button to return to New time-slot the list of confi gurable parameters. Delete all 19:02 Thursday 01 Feb 2018 Info Back Home Confi... -
Page 19: Maintenance
Touch each of the empty sections and use the drop-down menu to Number of frames: select the content that you want to assign to the section. Empty Empty Save the setting by touching the Save button. Empty Settings Save Save 19:02 Thursday 01 Feb 2018... - Page 20 SETTINGS AVAILABLE ONLY FROM WEB PAGE The web pages, in addition to allowing the confi guration of most of the parameters that can be set by the interface of the receiver, allow provide some additional functions illustrated in this section. Type the address of the device in the browser address bar XTS 7 IP (Chrome, Firefox, Safari).
-
Page 21: Node Status
Node status Help Exit On master receivers, through this System CHARACTERISTICS NODES STATUS window it is possible to view the connection status of the SIP nodes. Date and Time B Choose the type of SIP nodes for NODE TYPE Network which you want to view the status. -
Page 22: Password Change
Password change Maintenance Help Exit In this window it is possible to System UPDATE... CHANGE PASS... CONFIGUTION... change the password used to access. Date and Time PASSWORD Network NEW PASSWORD IP video cameras Voicemail CONFIRM NEW PASSWORD Maintenance Diagnostics Save Cancel Diagnostics Diagnostics... - Page 24 CAME S.p.A. Via Martiri Della Libertà, 15 31030 Dosson di Casier - Treviso - Italy tel. (+39) 0422 4940 - fax. (+39) 0422 4941 info@came.com - www.came.com...
