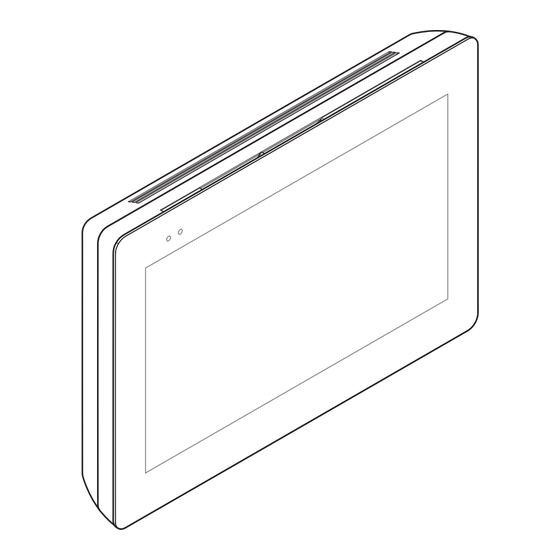

Wifi touch-screen speaker video-intercom
Hide thumbs
Also See for XTS 7 WH WIFI:
- User manual (113 pages) ,
- Installation and configuration manual (21 pages) ,
- Installation and configuration manual (17 pages)
Related Manuals for CAME XTS 7 WH WIFI
Summary of Contents for CAME XTS 7 WH WIFI
- Page 1 Wifi touch-screen speaker video-intercom FB01183-EN XTS 7 WH WIFI XTS 7 BK WIFI XTS 7 WH WFBF INSTALLATION AND SETTINGS MANUAL EN English...
-
Page 2: General Precautions
GENERAL PRECAUTIONS Read the instructions carefully before beginning the installation and carry out the actions as specified by the • manufacturer. The installation, programming, commissioning and maintenance of the product must only be carried out by • qualified technicians, properly trained in compliance with the regulations in force, including health and safety measures and the disposal of packaging. -
Page 3: Function Of Terminals
7 End-of-line resistor. Set the bridge only on the last of the line's devices. Function of terminals Local power supply input BUS-line input Landing call input Alarm input Technical data Type XTS 7 WIFI local power supply (V DC) 14 to 18 Maximum draw (mA) Consumption in stand-by mode (mA) Stocking temperature °C... - Page 4 INSTALLING...
- Page 5 To make the device's installation more solid, use the supplied screws and dowels to fasten the frame to the wall. Notes on installing indoor receivers connected to the WiFi network Install the indoor receiver: away from any metal objects that may interfere with the signal, or from any devices that generate magnetic fields.
-
Page 6: Examples Of Installation
Examples of installation Installing four indoor receivers in one home. The WiFi connection need only be active on one indoor receiver. The Apps are associated to the indoor receiver that has an active Wifi connection. MAX 8 VAS/101 VAS/101 LITHOS VAS/100.30 VCM/1D VCM/2D... - Page 7 Device installed in several homes with different types of power-supply units. In a home where several indoor receivers are installed, the WiFi connection need only be active on one of the receivers. The Apps are associated to the indoor receiver that has an active Wifi connection. MAX 8 VAS/101 VAS/101...
- Page 8 Installed at a duplex home, where each home has a device The apps are associated to that indoor receiver that has the active WiFi connection. XDV/304 LITHOS VAS/100.30 VCM/1D VCM/2D UTP/CAT 5 2x1.5mm ≤ 100 ≤ m 100 ≤ m 100 –...
-
Page 9: Advanced Settings
Configuration X2 eo-intercom system. Wrong set- Network tings may cause partial or even total malfunctions; that is why CAME Connect the editing of some parameters Multimedia is allowed only after entering the installer password; the default Credentials password is 112233). - Page 10 Configuration X2 A This button is for sending the SN (serial number) to the Pcs/Xip Send SN software during the programming steps. Manual programming B This button takes you to manual programming of the device. The complete manual pro- gramming procedure for the call is printed in the literature that is issued with the indoor receivers.
- Page 11 I Once you have chosen the connection mode, the button is Type of connection WiFi for selecting and setting up a Wifi network. Enabled Configure WiFi Every 30 seconds the device scans Mode DHCP for available networks. IP address Netmask Save 19:02 Thursday...
- Page 12 B For enabling or disabling the VoIP remote control of the video-in- Keycode tercom call. Enable connection The factory settings require that the connection to CAME Connect be Internet service provider enabled. Status The CAME Connect connec- tion must be active to receive calls over the App.
-
Page 13: Automatic Door Opener
Automatic door opener This function, which is especially useful for businesses, lets you automatically open the entrance once the call-but- ton is pressed on the entry panel. The activation of this function can be programmed to schedule time slots and days of the week. -
Page 14: Configuring The User Interface
For editing the selected ele- ment. 08:30 - 12:30 Mon Tue Wed Thu Fri For eliminating the selected 13:30 - 18:30 Mon Tue Wed Thu Fri element. Touch the Back button to return to New time-slot the list of configurable parameters. Delete all 19:02 Thursday... -
Page 15: Maintenance
Touch each of the empty sections and use the drop-down menu to Number of frames: select the content that you want to assign to the section. Empty Empty Save the settings by touching Save. Empty Settings Save 19:02 Thursday 01 Feb 2018 Info Back Home... - Page 16 SETTINGS ONLY AVAILABLE ON WEBPAGE The webpages, besides allowing you to set most of the parameters that may be set up on the indoor receiver's interface, also allow you to run certain additional functions shown in this section. In the Chrome, Firefox, Safari browsers' address bar, type the de- XTS 7 vices address..
- Page 17 Node state Help Exit On master indoor receivers, this System PARAMETERS NODE STATE window is for viewing the state of the connection on SIP nodes. Date and Time B Select the type of SIP nodes of NODE TYPES Network which you want to view the state. Red dot = Node not connected or connecting.
-
Page 18: Change Password
Change password Maintenance Help Exit In this window you can change the password used for accessing. System UPDATE... CHANGE PASSW... CONFIGUR... Date and Time PASSWORD Network NEW PASSWORD Credentials IP video cameras CONFIRM NEW PASSWORD Voicemail Device Save Cancel Maintenance Diagnostics Diagnostics Diagnostics... - Page 20 Pertinent Regulations.CAME SpA, the manufacturer, declares that the products described in this manual conform to Directive 2014/53/EU. The complete wording of the EU declaration of conformity is available at the following Internet address: www.came.com Decommissioning and disposal. Dispose of the packaging and the device at the end of its life cycle responsibly, in compliance with the laws in force in the country where the product is used.
