Summary of Contents for Zoomax Luna Eye
- Page 1 Luna Eye User Manual V1.0...
- Page 2 Model: Luna Eye Intended Use: The Luna Eye is used to help people with presbyopia and low vision more easily read materials to help them work, live and study Patient Population: People with presbyopia and low vision Storage: Temperature: 0℃~30℃; Humidity: <70%...
- Page 3 District, Hangzhou, China 310012 Copyright© 2019 ZOOMAX Technology Co., Limited. All Rights Reserved. ZOOMAX® is a trademark of ZOOMAX Technology Co., Limited in the United States and other countries. Information in this document is subject to change without notice. No part of this...
- Page 4 ZOOMAX.
-
Page 5: Table Of Contents
Contents 1. Introduction and Usage ------------------------------------------------------ 1 1.1 What’s in the Box --------------------------------------------------------2 1.2 Product Details -----------------------------------------------------------2 1.3 Button Box ---------------------------------------------------------------- 3 1.4 External Knob Connection -------------------------------------------- 5 2. Basic Functions -----------------------------------------------------------------6 2.1 Power on/off ------------------------------------------------------------- 7... - Page 6 2.2 Viewing Mode Adjustment ------------------------------------------- 9 2.3 Zoom in/out -------------------------------------------------------------10 2.4 Color Mode Setting --------------------------------------------------- 12 2.5 Panning -------------------------------------------------------------------14 2.6 Find ------------------------------------------------------------------------15 2.7 Freeze and Gallery -----------------------------------------------------17 2.8 Reading Line/Mask ---------------------------------------------------- 21 2.9 Contrast Value Adjustment ------------------------------------------24...
- Page 7 2.10 Focus lock -------------------------------------------------------------- 27 3. Other Functions -------------------------------------------------------------- 28 3.1 Frequency --------------------------------------------------------------- 29 3.2 Software Update -------------------------------------------------------30 3.3 Restore Default Settings --------------------------------------------- 31 3.4 Connect to Other Display --------------------------------------------32 4. Safety and Care ---------------------------------------------------------------33 5. Trouble Shooting ------------------------------------------------------------- 36...
- Page 8 6. Specifications ----------------------------------------------------------------- 37 7. Service and Support ---------------------------------------------------------38 8. Certification and Compliance --------------------------------------------- 40...
-
Page 9: Introduction And Usage
11x HD optical zoom lens, with a large HD screen, stable bracket, and very easy to use. Luna Eye can be used in office conference room as well as home daily life. As always,... -
Page 10: What's In The Box
1.1 What’s in the Box Luna Eye User manual Adapter Quick start guide External knob Cleaning cloth USB cable... -
Page 11: Product Details

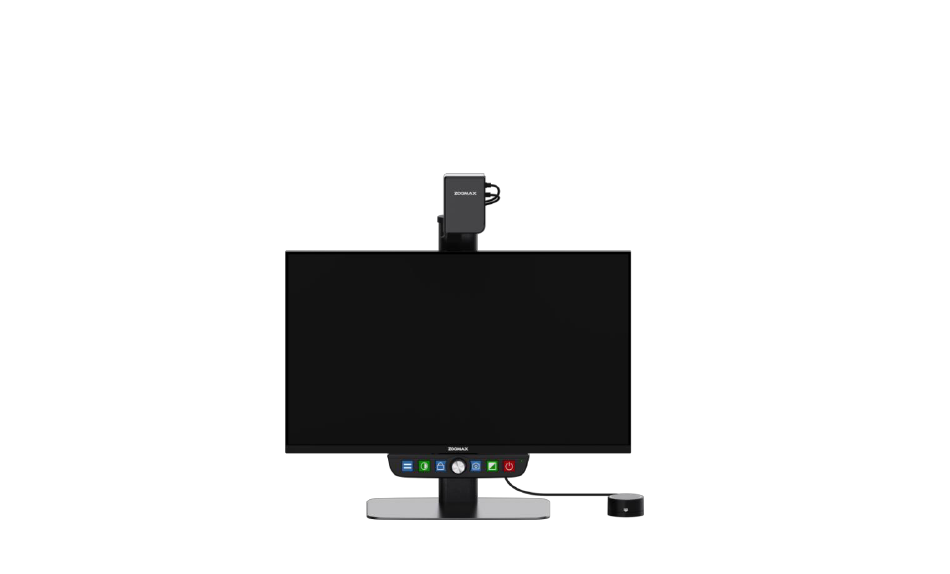

1.2 Product Details Camera Bracket Screen Button box Base External knob... -
Page 12: Button Box
1.3 Button Box Contrast Color mode Zoom knob Indicator light Power on/off Freeze Focus lock Reading line... - Page 13 Camera port Power supply External knob port Screen port...
-
Page 14: External Knob Connection
1.4 External Knob Connection USB-C port... -
Page 15: Basic Functions
Connect the external knob to port on the button box interface with USB-C cable. Rotate counterclockwise to zoom out, and rotate clockwise to zoom in; Short press the zoom knob to freeze, and press it again to exit. 2. -
Page 16: Power On/Off
2.1 Power on/off Power Supply Connection: Connect the Luna Eye to the power supply with the charging adapter and USB cable, and the indicator light in the button box is bright yellow. Power on: Long press the power button... - Page 17 Power off: Long press power button for 2S to turn off. Memory function: Luna eye will remember the values set before after restarting, like magnification times, color mode, contrast value, reading line mode, frequency, focus lock mode.
-
Page 18: Viewing Mode Adjustment
2.2 Viewing Mode Adjustment -Near-view mode -Distance-view mode Turn the camera down and close the close-up lens for near-view;... -
Page 19: Zoom In/Out
Turn the camera back and open the close-up lens for distance-view; Turn the camera toward yourself and close the close-up lens when taking a selfie. 2.3 Zoom in/out Rotate the zoom knob in the center of the button box clockwise to zoom in and counterclockwise to zoom out. - Page 20 hear a beep sound and see icon on the upper right corner of the screen. You can use the external knob to zoom in/out as introduced in the above page. The default magnification is 1x, and the magnification range is 1x-72x.
-
Page 21: Color Mode Setting
And short press again to go to the current magnification. 2.4 Color Mode Setting There are a total of 18 high contrast color modes in Luna Eye. At your first use of the device, it defaults to true color as well as four high-contrast colors: white on black, black on white, yellow on black, yellow on blue. - Page 22 available color modes, and long press the color mode button for 2s to return to true color. Short press the contrast button and color code button at the same time to enter the color mode selection page, then rotate the zoom knob button to select, short press the color mode button to confirm, and all the selected colors...
-
Page 23: Panning
2.5 Panning Live view mode: Panning support at 11-72x Frozen image: Panning support at 1.5-72x Panning mode: Press and hold the focus lock button turn the zoom knob to pan up and down; press and hold the freeze button and turn the zoom knob to pan left and right. -
Page 24: Find
2.6 Find In live view mode, long press the focus lock button to enter the Find mode and loose the button to exit. In Find mode, an orange frame displays on the screen and the the magnification of the image is 1x. - Page 25 Move your reading material and keep the content you want to view in the orange frame, release the focus lock button will see this content is enlarged in full screen for your easier...
-
Page 26: Freeze And Gallery
reading. 2.7 Freeze and Gallery Freeze: In live view mode, short press the freeze button freeze the screen, and a camera icon shows on the lower left corner. The frozen image supports zoom in/out, and color mode adjustment. You can also use the external knob to freeze or unfreeze. - Page 27 Short press the freeze button again to release the screen. Save: Long press the freeze button to save the frozen image to the gallery, and the screen returns to live view.
- Page 28 Gallery： In live view mode, double-tap the freeze button enter/exit the gallery, rotate the zoom knob to select...
- Page 29 images, short press the color mode button to view a single image. Delete the image: Choose the image you want to delete. Short press the Zoom Knob to delete it. You can also delete all the images in the gallery if you select all of them. And short press the freeze button to exit the delete page, back to gallery.
-
Page 30: Reading Line/Mask
2.8 Reading Line/Mask In live view, short press the reading line button and cycle... - Page 31 through 5 reading line modes: no reading line or mask, horizontal reading line, vertical reading line, horizontal mask, and vertical mask.
- Page 32 Adjust the reading line position: Press and hold the reading line button while rotating the zoom knob clockwise to the right and up; counterclockwise to the left and down. Adjust the mask area: Hold the reading line button while...
-
Page 33: Contrast Value Adjustment
rotating the zoom knob clockwise to increase the mask area (display area decreases) and counterclockwise to decrease the mask area (display area increases). 2.9 Contrast Value Adjustment In high contrast color mode, short press the contrast button , the screen displays the icon and current value, rotate the zoom knob to adjust the contrast value, the value is... - Page 34 instantly saved. The icon disappears automatically in 3S when there is inactivity. Threshold to the minimum or maximum value woiuld result in a buzzer sound.
- Page 35 Contrast value adjustment is invalid in true color mode. ...
-
Page 36: Focus Lock
2.10 Focus lock In live view mode, short press the focus lock button , the lower right corner of the screen displays the focus lock icon. At this time the focus has been locked, the screen will not be repeatedly focused. -
Page 37: Other Functions
unlock icon, which disappears automatically in 2s. 3. Other Functions... -
Page 38: Frequency
3.1 Frequency Luna Eye factory default is 60Hz. Long press the contrast button about 3s, the top right corner of the screen displays the current frequency. Short press the contrast button to change the frequency and the value will be automatically saved. -
Page 39: Software Update
3.2 Software Update Software update is for dealer use only: Use USB cable to connect the camera to the PC and copy the software package for... -
Page 40: Restore Default Settings
firmware version upgrade. 3.3 Restore Default Settings Long press the freeze button for 10s, the screen displays a pop-up window where you can select "Yes" (to start restoring factory settings) or "No" (to exit back to the live page with current settings). -
Page 41: Connect To Other Display
If you confirm to restore the factory settings, Luna Eye will automatically reboot: Magnification, Color Mode, Contrast Value, Reading Line, Frequency, Focus Lock will be restored to the default status, and the gallery will be cleared. 3.4 Connect to Other Display... -
Page 42: Safety And Care
Luna Eye in other monitors, and the Luna Eye screen itself will automatically turn off upon successful connection. 4. Safety and Care When you open the package for the first time, please check... - Page 43 Do not electrically plug and unplug the HDMI cable connected to the camera and monitor. Do not plug in other power adapters that are not supplied by Zoomax.
- Page 44 Product labels contain information such product specifications and production serial numbers. Please do not tear them up. Please make sure the machine is dry; pay attention to dustproof and avoid humidity and high temperature. Do not subject to severe shock, vibration, crushing or dropping. ...
-
Page 45: Trouble Shooting
5. Trouble Shooting Trouble Solution Distance view image is blur Please be sure the close-up lens is opened, and you can short press the focus lock button to trigger focus. - Page 46 Contrast value adjustment does Contrast value adjust works only not work inhigh contrast color mode. Panning does not work Panning works only under magnification of 11-72x 6. Specifications Magnification: live view 1-72x...
- Page 47 Color mode: 18 high-contrast color modes Size(24-inch): LWH 540*302*626mm, writing height 520mm Camera: 11x optical zoom lens, auto focus, 1920*1080, 60FPS Screen: 24-inch monitor with the resolution of 1920*1080 Weight: approx. 6.8kg/14.9lbs Adapter: input 100-240V; output 19V/3A 7.
- Page 48 Thank you for choosing our products, this product since the date of sale of the warranty period, the warranty period of two year. In the warranty period, where in accordance with the product instructions for normal use, the product itself quality problems arising from the failure, the company will be responsible for giving free maintenance.
- Page 49 please contact them first for assistance and describe the problem you are experiencing in as much detail as possible. If you need additional accessories, such as adapters, please purchase them directly from your local dealer. 8. Certification and Compliance...
- Page 50 Symbol Introductions Symbol Introductions AUTHORISED REPRESENTATIVE CE Symbol IN THE EUROPEAN COMMUNITY Manufacturer Name Manufacture Date Address Store in clean & dry place protected from rain, snow, Batch Code ice, salt and water.
- Page 51 Warnings non-sterile Precautions medical device Use-by date Keep dry Keep away from Sunlight Consult instructions for Unique Device Identification...
- Page 52 Country Manufacture Model Number Importer Distributor European Authorized Representative: Company：SUNGO Europe B.V. Address: Fascinatio Boulevard 522, Unit 1.7, 2909VA Capelle aan den IJssel, The Netherlands...
- Page 53 A- for Customer _____________________ ______________________ Name ______________________ Mail...
- Page 54 B -Product Information (for Distributor) _____________________ ______________________ Product Name/Model Purchase Date _____________________...
- Page 56 ZOOMAX TECHNOLOGY CO., LIMITED 9F, Building D, Paradise Software Park, No.3 Xidoumen Road, Xihu District, Hangzhou, Zhejiang Province, 310012, China Tel: +86-571-87006308 Fax: +86-571-87397220 Email: support@zoomax.com Visit us at: www.zoomax.com...
