- Page 1 LUNA Handheld Video Magnifier User Manual V1.0...
- Page 2 Road, Xihu District, Hangzhou, China 310012 Copyright© 2021 ZOOMAX Technology Co., Limited. All Rights Reserved. ZOOMAX® is a trademark of ZOOMAX Technology Co., Limited in the United States and other countries. Information in this document is subject to change without notice.
-
Page 3: Table Of Contents
USER MANUAL 1. Introduction............. 1 2. What’s in the Box ........... 1 3. General Description ........2 4. Battery............. 3 4.1. Charge the Battery ..........3 4.2. Power Saving ............ 3 5. Basic Operation ..........4 5.1. Power on ............4 5.2. - Page 4 8. Other Information .......... 13 8.1. Install the Battery..........13 8.2. Install the Short Strap ........13 8.3. Writing Stand ............ 13 9. Troubleshooting ..........14 10. Safety and Maintenance ....... 15 11. Specifications ..........16...
-
Page 5: Introduction
19x magnification, 10 high contrast colors, etc.) and advanced functions such as FM radio and voice control (available in specific countries/regions). 2. What’s in the Box You will find the following items inside the Luna S package box: Video magnifier Short strap... -
Page 6: General Description

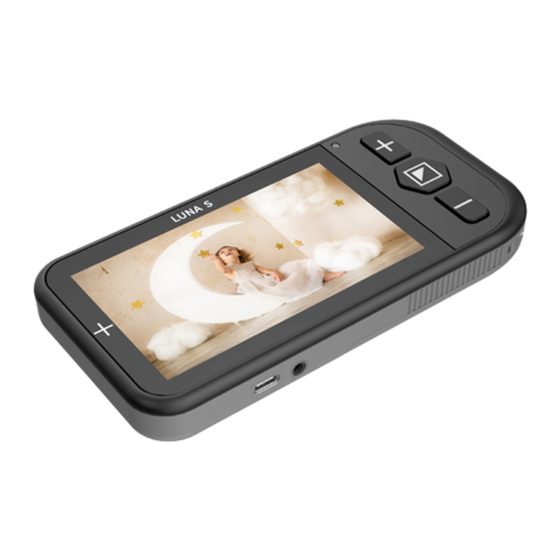

3. General Description 4.3″ TFT screen Indicator light Zoom in Mode button Zoom out Camera Writing stand Battery cover Power button Freeze button Mini-USB port Headphone port Cord slot 2/16... -
Page 7: Battery
If the "low battery" icon appears on the screen, it indicates that the battery is low and the machine will shut down soon. The charging time of Luna S is 4 hours. A fully charged battery will last for approximately 3 hours. You can purchase an extra battery for long trips or extended use. -
Page 8: Basic Operation
Press the Zoom in button to zoom in, and press the Zoom out button to zoom out. Magnification levels: The magnification is from 3.8x to 19x if Luna S is placed flat on the paper. The lowest magnification will change to 2x if Luna S is used with open writing stand. -
Page 9: Change The Color Mode
5.3. Change the Color Mode Mode button You can choose between the normal mode and favorite/- simplified mode: Normal Mode In Normal mode, press the Mode button to cycle through the following viewing modes: True color mode Grayscale High contrast modes, including: White on black/black on white White on blue/blue on white Yellow on black/black on yellow... -
Page 10: Freeze Image
Note: If the unit enters favorite mode from true color mode or grayscale instead of a high contrast color, the switch will be among true color, white on black and black on white. To exit favorite mode, press and hold the Mode button for 3 seconds until you hear two beeps again. -
Page 11: Advanced Functions
Mode button to decrease it. * Earphone or headphone with 3.5mm (1/8″) plug. 6.2. Flashlight Mode The flashlight mode enables you to use Luna S as a handy flashlight. Short press the Power button to enter the flashlight mode. -
Page 12: Rotate The Image
180°. You can rotate it back the same way. 6.4. Voice Control* Voice control is a unique function of Luna S that facilitates the hands-free use. To activate the voice control function, speak out "Hi, Luna". A text prompt "Voice function is on, please speak"... - Page 13 Speak out "light on" to activate the flashlight mode. Speak out "light off" to deactivate the flashlight mode. Power off Speak out "power off" to turn Luna S off in 3 seconds. Voice Commands For detailed instructions, please refer to the following table:...
- Page 14 Change the color mode Black white to white on black Change the color mode White black to black on white Change the color mode Blue white to white on blue Change the color mode White blue to blue on white Change the color mode Black yellow to yellow on black...
-
Page 15: Settings
7. Settings 7.1. Beep Sounds Zoom out button By default, the button beep sound is on. To turn it off, press and hold the Zoom out button for 5 seconds until you hear one beep sound. To turn it on again, press and hold the Zoom out button for 5 seconds again until you hear three beep sounds. -
Page 16: Screen Brightness
5 seconds until the brightness bar disappears. The adjusted brightness will be saved automatically. 7.4. Memory Function The Luna S will automatically keep the most recent settings on the next power-on (e.g. color mode, magnifi- cation, button beeps, brightness, etc.). 7.5. Factory Reset Function... - Page 17 8.2. Install the Short Strap Take the short strap, insert the small loop through the cord slot in the bottom right corner of Luna S. Thread the other end of the strap through the loop and pull the end tight.
- Page 18 9. Troubleshooting Problems Solutions 1. Ensure that the power is on. 2. Change the battery. Black screen 3. Reduce the magnification level. 4. Ensure the image is below the crosshair. The unit does Charge the unit. not turn on. The image on the screen Ensure the video magnifier is is dark or distorted.
- Page 19 10. Safety and Maintenance To maintain Luna S in optimal condition: To avoid risk of fire, do not expose Luna S to excessive heat or direct sunlight. To avoid the risk of electrical damage, keep Luna S away from fluids and chemicals.
- Page 20 11. Specifications Magnification: 2x to 19x Display modes: True color, grayscale, and 10 high contrast color modes Focus: Auto focus Screen: 4.3 inch widescreen TFT Flashlight mode: Yes FM radio: Yes Voice control: Available in specific countries and regions Power saving: Unit will turn off automatically after no activity for 3 minutes Battery: Rechargeable lithium-ion battery Battery life: 3 hours continuous use...
- Page 21 ZOOMAX TECHNOLOGY CO., LIMITED 9F, Building D, Paradise Software Park, No.3 Xidoumen Road, Xihu District, Hangzhou Zhejiang 310012, China Tel: +86-571-87006308 Fax: +86-571-87397220 Email: support@zoomax.com Visit us at www.zoomax.com Zoom Your Vision, Max Your Life...
