Summary of Contents for Zoomax Snow

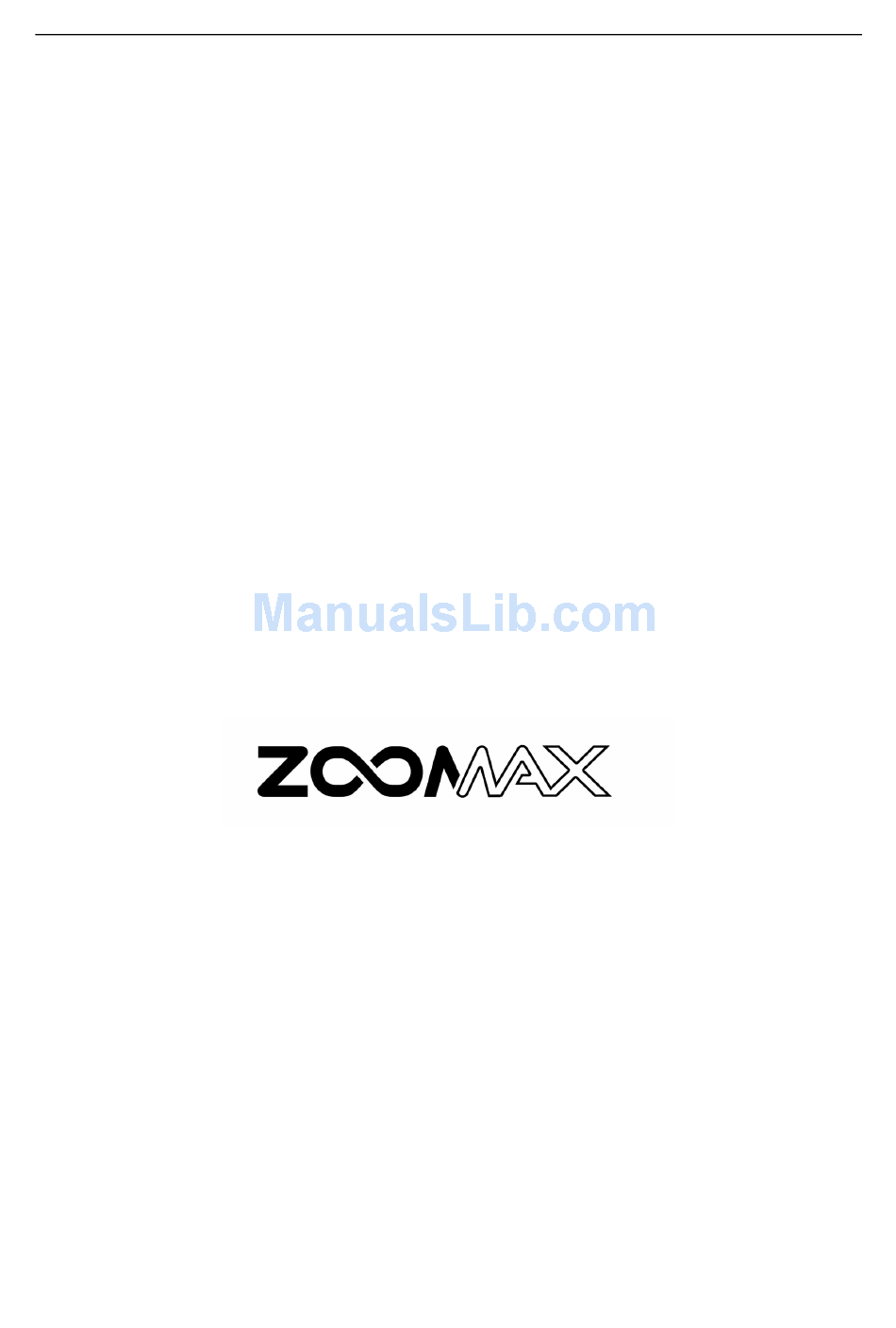

- Page 1 Zoomax Snow User Manual Zoomax Snow Handheld Video Magnifier User Manual V1.1...
-
Page 2: Table Of Contents
Zoomax Snow User Manual Contents Description................3 Accessories................3 Compositions:................. 4 Operation.................. 5 Battery installation..........................5 Charging the battery..........................6 Install wrist cord............................6 Operation Instructions............7 Turn power on/off..........................7 Adjust Magnification..........................7 Change display mode.......................... 8 Freeze..............................9 Writing Stand............................10 Turn on/off button beeps........................ -
Page 3: Description
User Manual Description Zoomax Snow is a lightweight handheld electronic magnifier with a large 4.3” widescreen LCD display. It provides magnification from 2x-16x, 10 contrast modes, as well as the ability to freeze an image for closer look. Besides, it features modern design with power saving function. -
Page 4: Compositions
Zoomax Snow User Manual Compositions: 4.3” LCD screen Indicator light Zoom in Contrast mode Zoom out Camera Writing stand Battery slot Power switch Freeze... -
Page 5: Operation
Zoomax Snow User Manual USB port AV-OUT port Cord slot Operation Battery installation Install the battery as follows: 1. Turn the unit so that the back is facing up 2. Press and slide open the battery cover 3. Insert the battery... -
Page 6: Charging The Battery
User Manual Charging the battery The battery should be charged prior to using the Snow for the first time. - Connect the power adapter to the unit USB port, and then insert the power adapter into power outlet. The power indicator will be red during charging. -
Page 7: Operation Instructions
Zoomax Snow User Manual Operation Instructions Turn power on/off Power Press and hold the power button for 2 seconds to turn on (as shown in diagram), and the green power indicator will be on and the unit will enter into video magnifier mode directly. -
Page 8: Change Display Mode
Zoomax Snow User Manual Lifting the unit off the material will decrease the size of the viewed material. And you can get increased magnification of the viewed material if you connect the unit to a TV screen. Change display mode... -
Page 9: Freeze
Zoomax Snow User Manual normal mode, then press and hold “mode” button for 2 seconds until the BEEP goes. NOTE: If the unit enters into Favorite mode from full color mode or grey mode, then the switch would be among full color, white on black and black on white. -
Page 10: Writing Stand
Zoomax Snow User Manual Writing Stand Open the unit on the writing stand. -Write underneath the right side of the camera. Turn on/off button beeps Long pressing “zoom out” button In default, the button sound is mute. To turn it on, press and hold “Zoom Out” button for 5 seconds until BEEP goes twice. -
Page 11: Turn On/Off Camera Light
Zoomax Snow User Manual Turn on/off camera light Long press mode button The camera light is on in default. To turn light off, press and hold “mode” button for 5 seconds until BEEP goes TWICE (keep holding if you just heard one beep). -
Page 12: Setting Memory Function
● Ensure the image is below the crosshair. ●Change the battery. The unit will not turn on. The image on the screen is ● Ensure the Snow is flat on the page. dark or distorted. ● Ensure the outlet has power and the Power adapter is connected but the battery is not charging. - Page 13 Zoomax Snow User Manual Adjust the magnification up to suitable Text is too small to read. level. ● Connect to a TV with the supplied cable. ●Adjust the magnification down to suitable level. Text is too large to read. ● Lift/move the unit a little away from the subject.
-
Page 14: Safety
Zoomax Snow User Manual Safety To keep your video magnifier in a good condition, please read the following safety instructions carefully: - Do not expose your video magnifier to excessive heat or direct sunlight to avoid the risk of fire. -
Page 15: Specifications
Zoomax Snow User Manual Specifications 1. Magnification: 2x to 16x (optical and digital) 2. Display modes: ten modes (full color, gray, high contrast white on black, high contrast black on white, high contrast white on blue, high contrast blue on white, high contrast yellow on black, high contrast black on yellow, high contrast blue on yellow, high contrast yellow on blue) 3.
