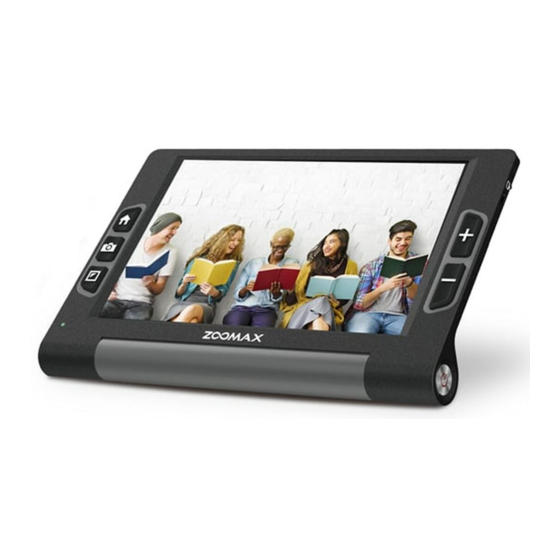

LUNA 8
User Guide V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUNA 8 and is the answer not in the manual?

Questions and answers

Related Manuals for Zoomax LUNA 8

Summary of Contents for Zoomax LUNA 8

  • Page 1 LUNA 8 User Guide V1.0...
  • Page 2 Hangzhou, China 310012 Copyright© 2020 ZOOMAX Technology Co., Limited. All Rights Reserved. ZOOMAX® is a trademark of ZOOMAX Technology Co., Limited in the United States and other countries. Information in this document is subject to change without notice. No part of this publication may be...

  • Page 3: Table Of Contents

    CONTENT 1. INTRODUCTION................................1 2. SAFETY AND MAINTENANCE .............................1 3. GET TO KNOW THE LUNA 8 ............................2 ................................. 2 3.1 W ’ S IN THE ................................3 3.2 G ENERAL ESCRIPTION 3.3 CHARGE THE BATTERY .............................5 4. BASIC OPERATION ..............................5 8 ......................... 5 4.1 H...
  • Page 4 5.2 S YSTEM ETTINGS 6. CONNECT WITH COMPUTER/TV/MONITOR ......................16 PC............................... 16 6.1 T RANSFER ILES WITH .............................. 17 6.2 C ONNECT TO ONITOR 7. TROUBLESHOOTING ............................... 17 8. TECHNICAL SPECIFICATION ............................ 19 9. OTHER PRODUCTS FROM ZOOMAX ........................19...

  • Page 5: Introduction

    2. Safety and Maintenance To maintain Luna 8 in optimal condition: ➢ To avoid risk of fire, do not expose Luna 8 to excessive heat or direct sunlight. ➢ Use the Luna 8 in environments where the temperature is between 10℃...

  • Page 6: Get To Know The Luna 8

    Please refer service requests to Zoomax or an authorized repair facility. ➢ Always unplug the Luna 8 before cleaning. Use a cleaning cloth or a soft damp cloth to clean the exterior. Do not use cleaning agents or abrasive material, as they will damage your video magnifier.

  • Page 7: General Description

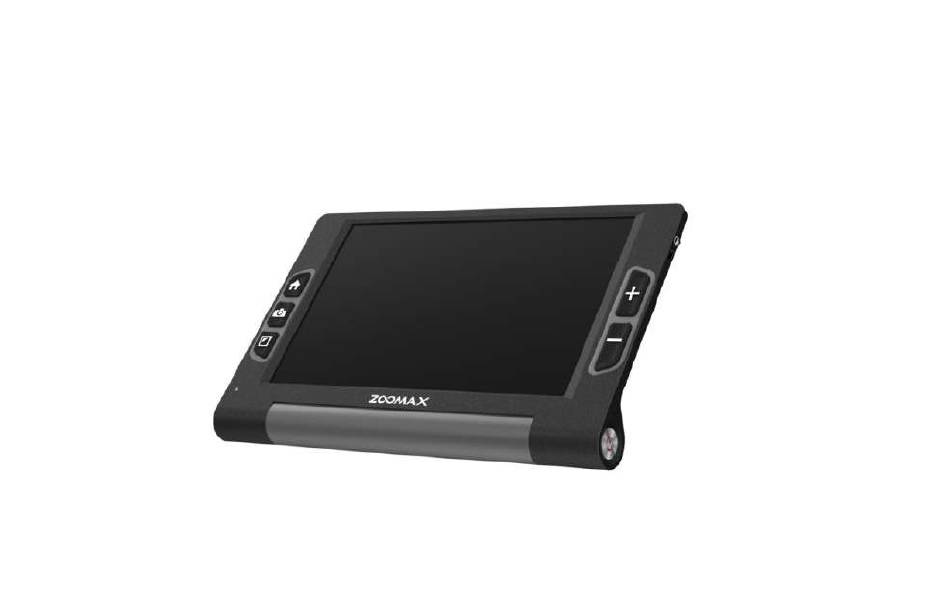

    Luna 8 User Guide 3.2 General Description HDMI out Home Zoom in Freeze Zoom out Mode Power indicator Power button...
  • Page 8 Luna 8 User Guide USB-C Power input LED lights Camera Release button...

  • Page 9: Charge The Battery

    When the battery is fully charged, the power indicator light will turn green. It will take less than 3 hours to fully charge the battery. You can use the Luna 8 for about 4.5 hours of continuous use. When the battery is low, the low battery icon will be shown in the lower left corner.

  • Page 10: Power On/Off

    User Guide 4.2 Power on/off Press the Power button for about 3 seconds to turn the Luna 8 on. You can turn the device off in the same way. The device will shut down automatically after 5 minutes of inactivity. You can deactivate this power saving function in System Settings.

  • Page 11: Panning Mode And Save Function

    Luna 8 User Guide You can choose your favorite color mode in the Settings menu. Please refer to section “Color Mode” on page 12. Press the Mode button for 1 second in high contrast color mode to quickly switch to full color mode.

  • Page 12: Advanced Operation

    Luna 8 User Guide Press the Mode/Zoom-in/Zoom-out buttons alone to change colors or magnification level of a frozen image. Save Image Press the Freeze button and the Zoom in button simultaneously to save the frozen image. A tick/check icon will appear on the screen indicating the image has been saved.
  • Page 13 Luna 8 User Guide Intensity of contrast Screen brightness Sound on/off Color mode LED lights Reading line and masks Gallery System settings...
  • Page 14 Luna 8 User Guide How to Select an Option in the Menu To select the options in the menu, move the Zoom in/out button to cycle through the icons. Press the Mode button to confirm, the Freeze button to go back, or the Home button to exit.
  • Page 15 Luna 8 User Guide By default, both LED lights are turned on in Near-view Mode and turned off in Distance-view Mode. Sound on/off Choose this option to set the system sound. Press the Mode button to confirm and enter the setting page. Then press the Zoom in/out buttons to select “sound on”...
  • Page 16 Luna 8 User Guide Intensity of Contrast The crispness of text in high contrast color mode can be affected by the lighting conditions around you, and by the reading material itself. It's possible to adjust contrast up or down. First, choose the intensity of contrast icon to adjust the intensity of contrast, then press the Mode button to confirm and enter the setting page.
  • Page 17 Luna 8 User Guide means the color mode chosen is hidden. Press the Mode button to confirm. Press the Freeze button or Home button to exit. Reading Line or Masks Choose this option to set the reading line or masks. Press Mode button to enter the setting page and press the Zoom in/out button to cycle through five settings.

  • Page 18: System Settings

    Luna 8 User Guide 5.2 System Settings System settings can be accessed through Main Menu -> System Settings. It is recommended to consult your supplier for system settings. Firmware version Restore factory Power saving on/off settings Firmware upgrade Refresh rate...
  • Page 19 Freeze button to go back. The default refresh rate is 60Hz. Power Saving on/off By default, Luna 8 will shut down automatically after 5 minutes of inactivity. This power saving function can be turned off. To turn off power saving function, choose the power saving icon and press the Mode button to enter the setting page.

  • Page 20: Connect With Computer/Tv/Monitor

    ➢ Make sure that Luna 8 and your computer are turned on. Connect the computer and Luna 8 with the supplied USB cable. ➢ To transfer files: Choose the folder “Luna 8” (the folder path is: Computer > Luna 8 > DCIM). Select the picture to transfer.

  • Page 21: Connect To Tv Or Monitor

    To view images on a larger screen, use the supplied HDMI cable to connect Luna 8 to an HDMI TV or monitor. For most TVs, it will be necessary to change the input source to view the image from Luna 8. Once connected, the image from Luna 8 will be shown on your TV or monitor.
  • Page 22 Make sure the HDMI cable is connected correctly to TV. Problem 5: Any other problem not mentioned in this guide. Solutions: Press Power button for 10 seconds to force system shutdown. If all else fails, please contact your local Zoomax distributor or Zoomax support for assistance.

  • Page 23: Technical Specification

    Battery life: more than 4.5 hours continuous use Charging time: less than 3 hours Power adapter: Input: 100-240V; Output: 5V/3A 9. Other Products from ZOOMAX Check out our full line of products (handheld magnifiers, desktop magnifiers, and wearable devices) by visiting...
  • Page 24 ZOOMAX TECHNOLOGY CO., LIMITED 9F, Building D, Paradise Software Park, No.3 Xidoumen Road, Xihu District, Hangzhou, Zhejiang Province, 310012, China Tel: +86-571-87006308 Fax: +86-571-87397220 Email: support@zoomax.com Visit us at: www.zoomax.com...
