- Page 1 LUNA 6 User Guide V1.0...
- Page 2 District, Hangzhou, China 310012 Copyright© 2021 ZOOMAX Technology Co., Limited. All Rights Reserved. ZOOMAX® is a trademark of ZOOMAX Technology Co., Limited in the United States and other countries. Information in this document is subject to change without notice. No part of this publication may be...
-
Page 3: Table Of Contents
CONTENT 1. INTRODUCTION ......................1 2. SAFETY AND MAINTENANCE ................... 1 3. GET TO KNOW THE LUNA 6 ..................... 2 3.1 WHAT’S IN THE BOX ..........................2 3.2 GENERAL DESCRIPTION .........................3 3.3 CHARGE THE BATTERY........................... 6 4. BASIC OPERATION......................7 4.1 OPEN THE HANDLE ..........................7 4.2 POWER ON/OFF........................... - Page 4 5. ADVANCED OPERATION ....................11 5.1 MAIN MENU............................1 1 5.1.1 GALLERY...............................1 3 5.1.2 LED LIGHTS............................1 3 5.1.3 SOUND..............................1 4 5.1.4 SCREEN BRIGHTNESS ...........................1 4 5.1.5 INTENSITY OF CONTRAST........................1 4 5.1.6 COLOR MODE............................1 5 5.1.7 READING LINE OR MASKS ........................1 6 5.2 SYSTEM SETTINGS ..........................
- Page 5 7. TROUBLESHOOTING......................21 8. TECHNICAL SPECIFICATION....................22 9. OTHER PRODUCTS FROM ZOOMAX.................23...
-
Page 6: Introduction
2. Safety and Maintenance To maintain Luna 6 in optimal condition: To avoid risk of fire, do not expose Luna 6 to excessive heat or direct sunlight. Use the Luna 6 in environments where the temperature is between 10℃... -
Page 7: Get To Know The Luna 6
Please refer service requests to Zoomax or an authorized repair facility. Always unplug the Luna 6 before cleaning. Use a cleaning cloth or a soft damp cloth to clean the exterior. Do not use cleaning agents or abrasive material, as they will damage your video magnifier. -
Page 8: General Description

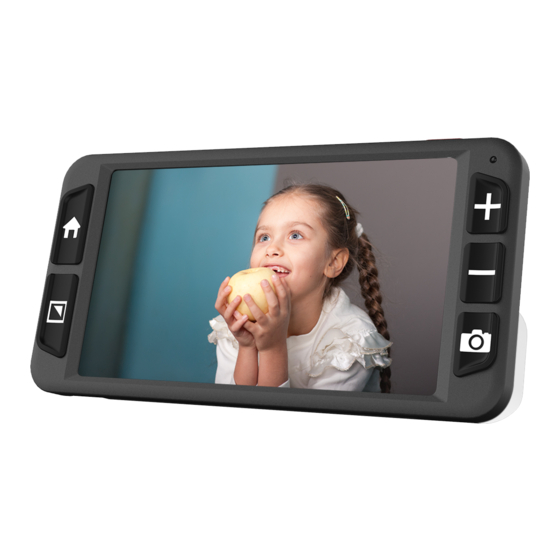

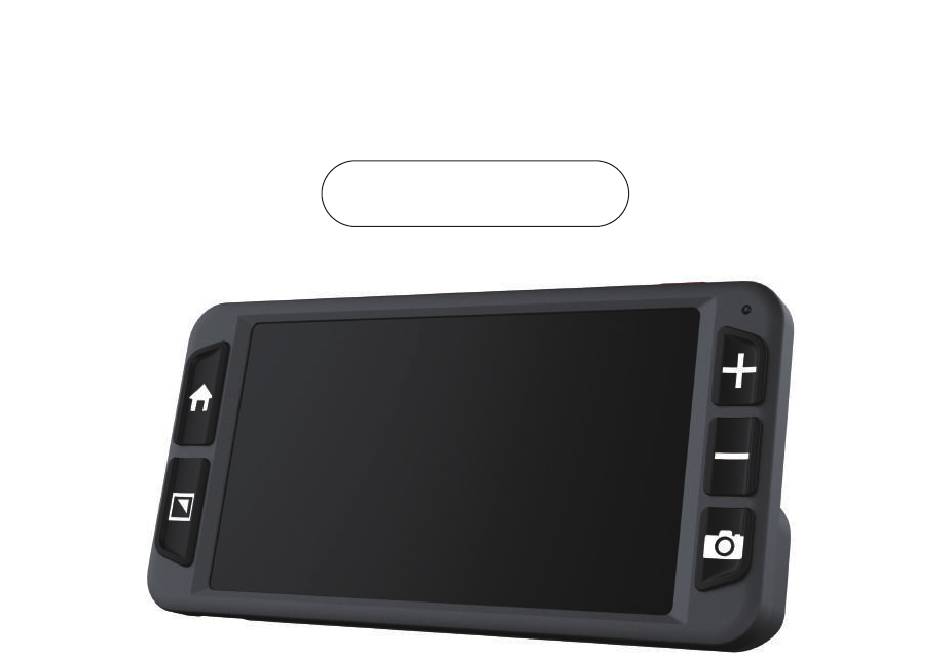

Luna 6 User Guide 3.2 General Description Power Button 5.5″ TFT Screen Indicator light Zoom in Home Button Zoom out Mode Button Freeze Button... - Page 9 Luna 6 User Guide USB-C Port HDMI out...
- Page 10 Luna 6 User Guide Camera Handle Foot Stand...
-
Page 11: Charge The Battery
There are two charging methods: wireless charging and wired charging. Wireless Charging: Connect the adapter with the wireless charger. Put Luna 6 on the wireless charger and make sure the camera is in the camera slot, and the handle in the handle slot. Camera Slot... -
Page 12: Basic Operation
The power indicator light is RED while the device is charging. When the battery is fully charged, the power indicator light will turn off. You can use the Luna 6 for more than 4 hours of continuous use. When the battery is low, the “low battery” icon will be shown on the screen and then the Luna 6 will be shut down. -
Page 13: Power On/Off
Figure: open the handle 4.2 Power on/off Press the Power button for 2 seconds to turn the Luna 6 on. You can turn the device off in the same way. The device will shut down automatically after 3 minutes of inactivity. You can deactivate this power saving function in System Settings. -
Page 14: Zoom Control
User Guide Open or close the handle to switch between Near-view and Distance-view Mode. When the handle is closed, the Luna 6 is in Near-view Mode. When open the handle, Luna 6 will switch to distance viewing. Tips: By default, the camera is auto focus. When the camera loses the focus, you can also short press the Mode button and the Freeze button simultaneously to refocus. -
Page 15: Freeze
Luna 6 User Guide Press the Mode button for 1 second in high contrast color mode to quickly switch to full color mode. 4.6 Freeze 4.6.1 Freeze an Image Press the Freeze button to capture an image. Press the Zoom in or Zoom out buttons to change the magnification level of a frozen image, or Mode button to change colors. -
Page 16: Save An Image
Luna 6 User Guide 4.6.3 Save an Image Press the Freeze button and the Zoom in button simultaneously to save the frozen image. A tick/check icon will appear on the screen indicating the image has been saved. If "memory is full" is displayed on the screen, it means the memory is full and some pictures need to be deleted if you would like to save new ones. -
Page 17: Gallery
Luna 6 User Guide Press the Freeze button to go back. Press the Home button to go back to the real-time view directly. Intensity of Contrast Screen Brightness Sound Color Mode Reading Line LED Lights and Masks Gallery System Settings... - Page 18 Luna 6 User Guide 5.1.1 Gallery In the Gallery , press the Zoom in/out buttons to cycle through the images, then press the Mode button to confirm and view the image selected. You can change the color mode by pressing the Mode button, or view details of the image using panning function.
-
Page 19: Sound
5.1.5 Intensity of Contrast The crispness of text in high contrast color mode can be affected by the lighting conditions and the reading material itself. Luna 6 enables you to change the intensity of contrast color to ensure the best reading experience. -
Page 20: Color Mode
Luna 6 User Guide In real-time view, you can use a shortcut to adjust the intensity: hold the Mode button and short press Zoom in/out button to increase/decrease the intensity level. NOTE: Before entering the Intensity of Contrast setting, please make sure that the real-time view is in high contrast color. -
Page 21: Reading Line Or Masks
Luna 6 User Guide 5.1.7 Reading Line or Masks In the Reading line or Masks setting, press the Zoom in/out button to cycle through five reading lines and masks options. Once it’s done, press the Freeze button or Home button to exit. -
Page 22: System Settings
Luna 6 User Guide 5.2 System Settings System Settings is the last option in the Main Menu. It is recommended to consult your supplier for system settings. Firmware Version Restore Factory Power Saving Settings Firmware Refresh Rate Upgrade... -
Page 23: Refresh Rate
The default refresh rate is 60Hz. 5.2.2 Power Saving By default, Luna 6 will shut down automatically after 3 minutes of inactivity. To enable or disable the power saving, use Zoom in/out button to choose between 2 options in the Power Saving setting. Once you turn this function... -
Page 24: Firmware Version
6.1 Transfer Files with PC ® Files stored in Luna S can be transferred to Window computer through the supplied USB cable. Before transferring the images, please turn on both Luna 6 and your computer. Connect them with the supplied USB cable. -
Page 25: Connect To Tv Or Monitor
User Guide To transfer images saved in Luna 6 to the computer, choose the images in folder “Luna 6” (the folder path is: Computer > Luna 6 > DCIM), and select the picture to transfer. NOTE: Image transfer from your computer to Luna 6 is highly not allowed. - Page 26 Luna 6 User Guide 7. Troubleshooting Problem 1: Black screen. Solutions: Ensure that the power is on. Charge the battery. Decrease the magnification level or change the color mode. Problem 2: The image on the screen is dark or distorted.
- Page 27 Problem 5: Any other problem not mentioned in this guide. Solutions: Press Power button for 10 seconds to force system shutdown. If all else fails, please contact your local Zoomax distributor or Zoomax support for assistance. 8. Technical Specification 2.5X - 19X Magnification: Screen: 5.5-inch screen...
- Page 28 Wired charging time: less than 3 hours Wireless charging time: about 4 hours Power adapter: input: 100-240V; output: 5V/2.5A 9. Other Products from ZOOMAX Check out our full line of products (handheld magnifiers, desktop magnifiers, and wearable devices) by visiting www.zoomax.com.
- Page 29 ZOOMAX TECHNOLOGY CO., LIMITED 9F, Building D, Paradise Software Park, No.3 Xidoumen Road, Xihu District, Hangzhou, Zhejiang Province, 310012, China Tel: +86-571-87006308 Fax: +86-571-87397220 Email: support@zoomax.com Visit us at: www.zoomax.com...
