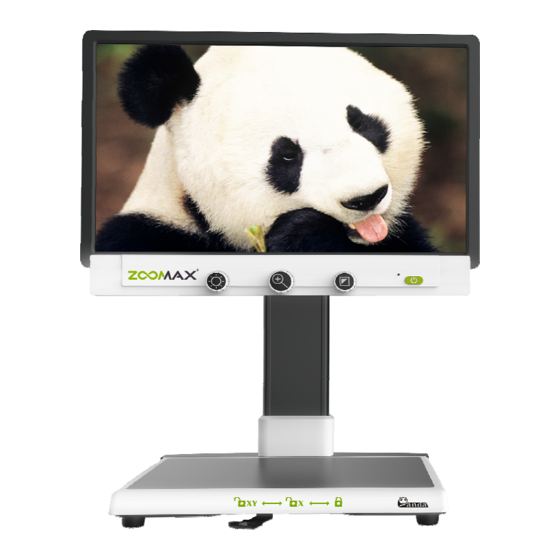

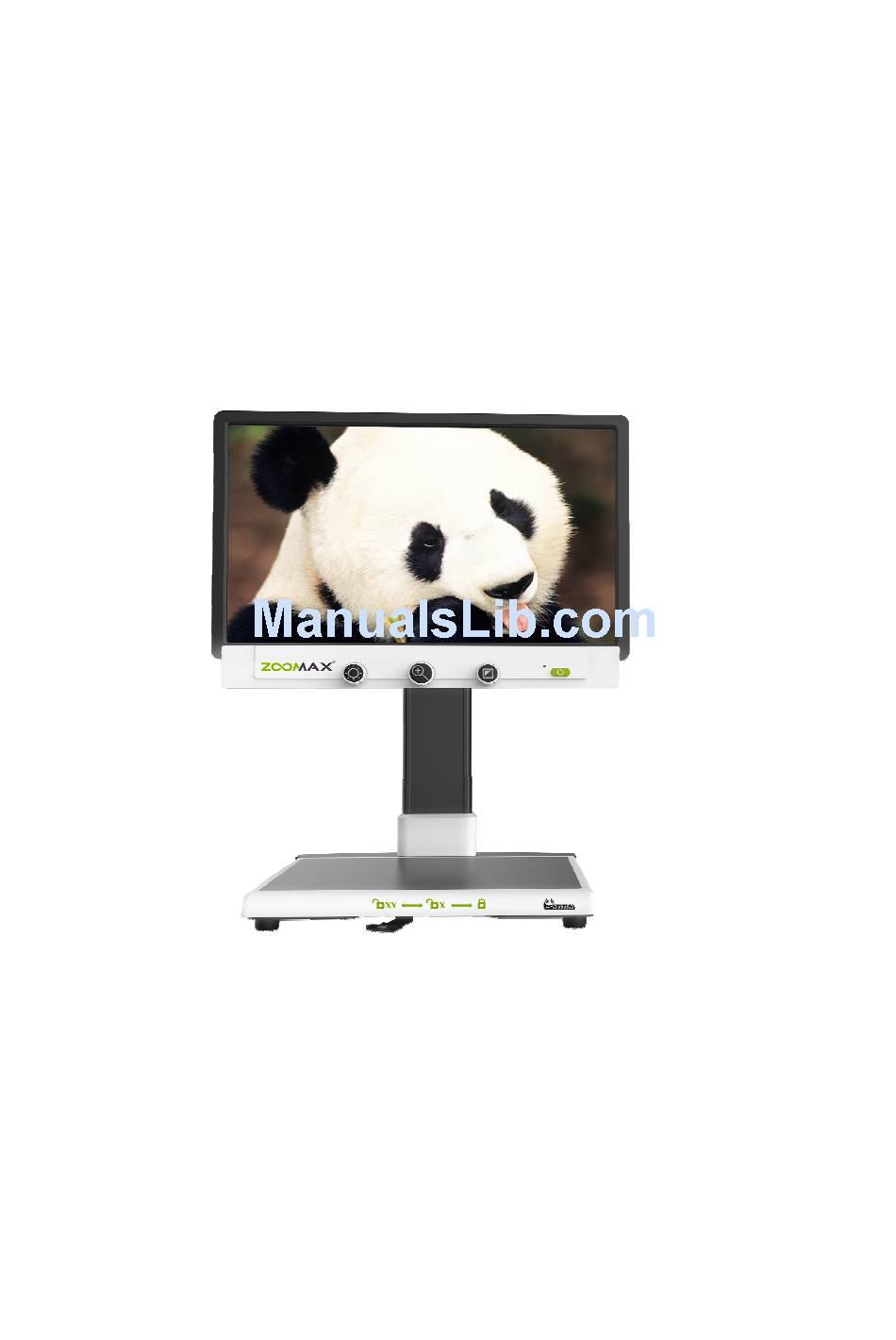

- Page 1 ® ZOOMAX Panda Standard Definition Desktop Video Magnifier User’s Guide Version 1.2 ZOOMAX Technology Co.,Limited...
- Page 2 ZOOMAX. To contact by e-mail, send questions to sales@zoomax.co. To search the knowledge base, please visit www.zoomax.co and choose the relative links.
-
Page 3: Table Of Contents
1. Safety and Care ..................3 2. Structure of Components & Accessories ............ 4 2.1 Knobs in the Panda ................4 2.2 Ports on the back of the Panda from left to right ........5 2.3 Accessories ..................5 3. Setting up Panda ..................5 4. -
Page 4: Safety And Care
Use the Panda indoors. Do not expose the Panda to extreme or rapid changes in temperature or humidity. Do not place the Panda near a radiator or heater, or where it may be exposed to direct sunlight. These conditions may damage Panda's electronic or optical components. -
Page 5: Structure Of Components & Accessories
Do not open your Panda by yourself, or this will void the warranty. 2. Structure of Components & Accessories 2.1 Knobs in the Panda The following knobs are used to start or close the Panda, adjust the brightness, magnification and colors for your options. -
Page 6: Ports On The Back Of The Panda From Left To Right
® ZOOMAX Panda Desktop Video Magnifier User’s Guide 2.2 Ports on the back of the Panda from left to right USB 1: for software upgrade AC IN: for Power Input (The Power Switch is in red) USB 2: for manufacture use 2.3 Accessories... -
Page 7: Xy Table
ZOOMAX Panda Desktop Video Magnifier User’s Guide Right fix monitor and main unit of the Panda. Make sure all cables are well connected. Connect the power cord to power input on the base of the Panda and plug in the other end to an electric socket. The Indicator Light on the screen will turn red. -
Page 8: Basic Operation
(the red one), the Indicator Light turns red, and the power remains normal. To turn on the Panda, press the Power On/Off Button on the screen. The Indicator Light turns green after a Beep sound. The monitor will display startup picture about 5 seconds and then enter into the reading mode. -
Page 9: Magnification Adjustment
5.3 Color Mode There are Simplified Color Mode and Advanced Color Mode in the Panda. The Simplified Color Mode is the default mode. 5.3.1 Simplified Color Mode Turn the Color Mode Knob to choose a color mode that suits your vision most. -
Page 10: Advanced Color Mode
Short press the Color Mode Knob to switch between full Color and your current high contrast color. Keep pressing the Color Mode Knob until you hear a beep, then the Panda will go back to the Simplified Color Mode. 5.4 Brightness Adjustment The default brightness level is 50%. -
Page 11: Led Light Brightness Adjustment
5 seconds to enter into Demo Mode. Then the Panda will demonstrate 3 main functions automatically. Short press the Power On/Off Button to exit from Demo Mode. 5.7 Memorizing Settings The Panda will start with the last viewing modes automatically after switch on. -
Page 12: Reset To Default
® ZOOMAX Panda Desktop Video Magnifier User’s Guide 5.8 Reset to Default Keep pressing the Brightness Knob and Magnification Knob simultaneously for 5 seconds, then the Panda will recover the factory default settings. 6. Troubleshooting LCD screen remains blank after switch on. - Page 13 ® ZOOMAX Panda Desktop Video Magnifier User’s Guide Magnification Range: 2X – 70X; Color Modes: Full color + 16 high contrast colors; 5 simplified colors; Functions: Magnification adjustment; Brightness adjustment; LED lights adjustment; Last settings saving (including magnification, brightness and LED brightness);...
-
Page 14: Other Products From Zoomax
® ZOOMAX Panda Desktop Video Magnifier User’s Guide 8. Other Products from ZOOMAX Snow 7 HD is a creative design that offers Snow 7” real-time crisp images on the ergonomically settled wide screen, and is still the easiest to use. With its small book size and only 16.93...
