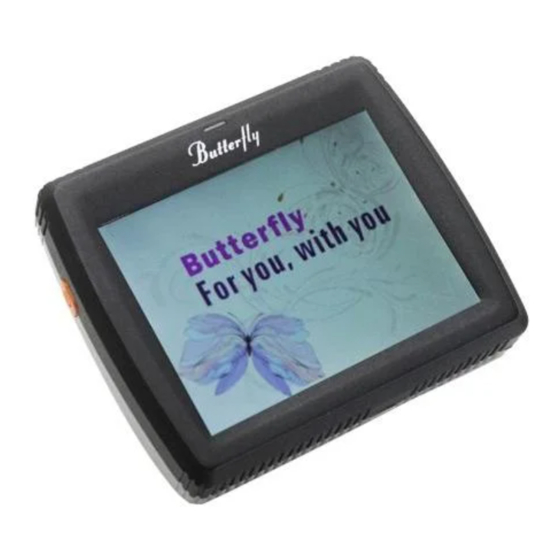

- Page 1 ® ZOOMAX Butterfly ZOOMAX ® Butterfly Handheld Video Magnifier User’s Guide Version 3.2...
- Page 2 ZOOMAX. If you have any questions or suggestions concerning the use of this product, please contact your distributor or ZOOMAX by e-mail：sales@zoomax.co. To search the knowledge base, please visit www.zoomax.co...
-
Page 3: Table Of Contents
® ZOOMAX Butterfly Contents 1. Introduction..................1 About this user’s guide...............1 What’s in the box?..............1 2. Getting to know your Butterfly............2 Top side..................2 Front side..................3 Back side..................5 Right side..................6 Underside..................7 3. Getting started................7 Turning the power on / off............7 Using the magnification wheel.......... - Page 4 ® ZOOMAX Butterfly Appendix A: Safety..............14 Appendix B: Technical information........15 Other Product from ZOOMAX:..........17...
-
Page 5: Introduction
15 times on a 3.5” display. With its simplicity, Butterfly offers an enhanced design that extends in operating comfort. It is designed for instant use at any location. -
Page 6: Getting To Know Your Butterfly
2. Getting to know your Butterfly The unit is placed correctly in front of you when the display is facing up and the ZOOMAX logo is on the top of the display. Top side The following figure shows the top side of Butterfly... -
Page 7: Front Side
® ZOOMAX Butterfly 3.5” display Front side The following figure shows the front side of Butterfly Page 3... - Page 8 ® ZOOMAX Butterfly Color Mode & magnification wheel Mode: Press the wheel. It allows you to select your favorite color mode among 5 contract color Magnification: Turn the wheel clockwise or counterclockwise. It allows you to change the magnification (zoom in/out)
-
Page 9: Back Side
® ZOOMAX Butterfly Back side The following figure shows the back side of Butterfly. Snapshot button Snapshot button Page 5... -
Page 10: Right Side
Right side The following figure shows the right side of Butterfly. On/Off switch DC IN jack On / Off switch: Press the small round orange button for two seconds to switch the unit on / off DC IN 5V jack: The AC adapter cable connects to this jack. -
Page 11: Underside
® ZOOMAX Butterfly Underside The following figure shows the underside of Butterfly. Centralized Collapsible reading stand Camera: Butterfly features an auto-focus camera that centralizes on the screen for an optimal ease of use while reading or writing Reading stand: In order to get an optimal image quality,... -
Page 12: Using The Magnification Wheel
ZOOMAX Butterfly at the right side of the unit, for about two seconds. For the first time use, Butterfly starts up in Photo mode. Afterwards, the unit starts up in the mode. Using the magnification wheel To set the magnification (zoom in / out), simply operate the magnification wheel located on the front side under the display. -
Page 13: Selecting A Viewing Mode
Using the snapshot button The snapshot button allows you to temporary freeze the a text or an image - Hold or place Butterfly over the text or image - Press the oval shaped snapshot button located at the back side above the display... -
Page 14: Writing With The Butterfly
Snapshot button will turn the lighting on, too. Writing with the Butterfly Butterfly has a super-light design enabling you to hold the unit easily while writing. Take a pen in one hand while holding the unit in your other hand above the paper and start writing. -
Page 15: Using The Butterfly Reading Stand
® ZOOMAX Butterfly Pull here to extend the reading stand Brightness adjustment Simultaneously press snapshot button and turn the mode wheel to right or left, you see Brightness adjustment bar appears on the screen. Then, adjust the brightness by turn the wheel clockwise or counterclockwise. -
Page 16: Power And Battery Use
The orange LED indicator next to the adapter socket glows continuously while the Butterfly is charging. If the unit is fully charged, the LED light switches off automatically. If the LED indicator starts to flash, it means there is a charge problem. -
Page 17: System Auto Off
® ZOOMAX Butterfly System Auto Off If you don’t use Butterfly at a period of 2 minutes, the unit turns off automatically. Troubleshooting Problems Solutions ●Ensure that the power is on. Black screen ●Charge the battery. ●Decrease the magnification level. - Page 18 _ Do not remove any parts of Butterfly. Contact your distributor or a ZOOMAX authorized service organization in your area. _ To avoid risk of electrical damage, keep your Butterfly away from fluids and chemicals. _ Handle Butterfly with care. Rough handling will damage the internal components.
- Page 19 _Do not use cleaning agents or abrasive materials as they will damage your unit. _Use of Butterfly other than described in this user’s guide will exclude it from warranty conditions. Appendix B: Technical information Magnification: 1.5X - 15X...
- Page 20 ® ZOOMAX Butterfly Screen: 3.5” TFT Screen resolution: 320 x 240 Battery: 3.5 hours continuous use 3 hours charging time Built-in Li-ion battery rechargeable, 1400mAh Weight: 120 grams / 4.2 ounces (include battery) Power supply type SMPS 100V-240V, 50 /60Hz 0.2A / 5V/1A Operation conditions: Relative humidity: <70 %, no condensation...
- Page 21 ® ZOOMAX Butterfly Other Product from ZOOMAX: Item Name Product Photo Product Description Snow 7 HD is a creative design that Snow 7” offers real-time crisp images on the ergonomically settled wide screen, and is still the easiest to use. With its small book size and only 16.93 ounce, Snow...
