Summary of Contents for Zoomax Luna HD 24 Pro

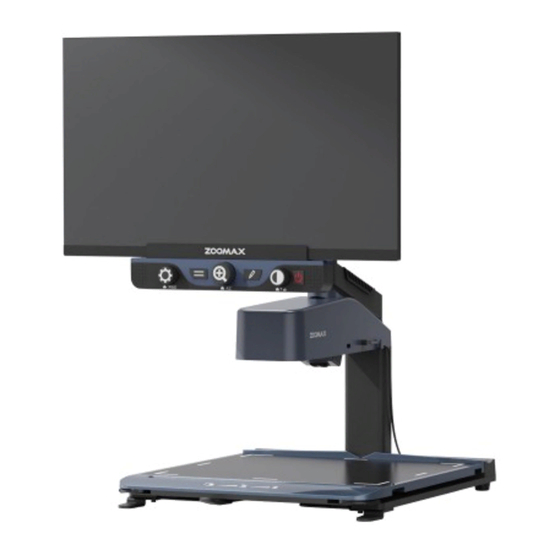

- Page 1 Luna HD 24 Pro User Guide V1.0...
- Page 2 Hangzhou, China 310012 Copyright© 2019 ZOOMAX Technology Co., Limited. All Rights Reserved. ZOOMAX® is a trademark of ZOOMAX Technology Co., Limited in the United States and other countries. Information in this document is subject to change without notice. No part of this publication may be reproduced or transmitted in any forms or by any means, electronic or mechanical, for any purpose, without the express written permission of ZOOMAX.
-
Page 3: Table Of Contents
CONTENT 1. Product introduction ........................1 1.1 What’s in the box? ........................1 1.2 Product Structure ........................2 2. Basic function ..........................4 2.1 Basic operation ........................4 2.3 Zoom in/out ..........................6 2.4 Switch color modes ........................7 2.5 Find function ..........................7 2.6 Contrast level setting ....................... - Page 4 3.5 LED light brightness setting ....................11 3.6 Restore factory settings ......................11 3.7 Demonstration mode ......................11 3.8 Focus lock ..........................12 3.9 Software upgrade ........................12 3.10 Full mode and Lite mode ..................... 13 3.11 Refresh rate ..........................14 3.12 Sound prompt setting ......................14 3.13 Frozen image panning ......................14 4.
-
Page 5: Product Introduction
Luna HD 24 Pro User Guide 1. Product introduction 1.1 What’s in the box? - Luna HD 24 Pro - Adapter - User manual - Reminder card - Screen cleaning cloth - Desiccant... -
Page 6: Product Structure
Luna HD 24 Pro User Guide 1.2 Product Structure Positioning Auxiliary Button Focus Lock Button Monitor Control Panel Power Brightness Button Button Zoom Button Camera Mode Button XY-Table... - Page 7 Luna HD 24 Pro User Guide Monitor Bracket Monitor Power HDMI Port Port...
-
Page 8: Basic Function
Luna HD 24 Pro User Guide 2. Basic function 2.1 Basic operation - Adjust the display at multiple angles. The screen can be rotated to 90° The screen can be rotated to 45° up and both left and right. 90° down. - Page 9 Luna HD 24 Pro User Guide - Adjust the monitor bracket at multiple angles. The bracket can be rotated to 45° up The bracket can be rotated to 90° and 90° down. both left and right.
-
Page 10: Zoom In/Out
Luna HD 24 Pro User Guide 2.2 Power on/off - Power on：Short press the power button, the green light is on shortly with a "Beep"sound. It comes with boot screen. You enter into live view in about 6 seconds when seeing the boot screen. -
Page 11: Switch Color Modes
Luna HD 24 Pro User Guide 2.4 Switch color modes - Provides true color + 4 high contrast colors: white on black, black on white, yellow on black and black on yellow. The Default is true color. - Rotate the mode button to cycle through the color modes. -
Page 12: Contrast Level Setting
Luna HD 24 Pro User Guide 2.6 Contrast level setting Your best contrast performance is varies when reading material or external lighting condition varies. You could set your favorite contrast if needed. - The default is 50. - To set a favorite contrast level: In the real-time mode, make sure you are in high contrast color mode, you press and hold the mode button while rotating the Zoom button to adjust the contrast. -
Page 13: Activate Advanced Mode
Luna HD 24 Pro User Guide More auxiliary functions can be used by activating the advanced mode, and some basic functions are still retained in the advanced mode, including zoom-in/zoom-out, color mode switching, find function and contrast setting. 3.1 Activate advanced mode - Press and hold the positioning auxiliary button and the focus lock button for 3 seconds simultaneously, then release the buttons when hearing a "Beep"... -
Page 14: Reading Line And Reading Mask
Luna HD 24 Pro User Guide image on the display will be frozen when you hear a "Beep" sound. The freeze icon appears in the upper right corner of the screen. Then you can release the button. The frozen image can be zoomed in/out, color mode switched, reading lines/mask adjusted. -
Page 15: Led Light Brightness Setting
"Beep" sound. The system will be restored to factory settings. 3.7 Demonstration mode This function mainly demonstrates the basic functions of Luna HD 24 Pro. - Activate the demonstration mode: in the real-time mode with true color, press and hold the... -
Page 16: Focus Lock
3.9 Software upgrade Software upgrade is for dealer use only. The End user is not encouraged to do it. The Dealer should contact Zoomax sales person or email support@zoomax.com to get a solution. -
Page 17: Full Mode And Lite Mode
Luna HD 24 Pro User Guide 3.10 Full mode and Lite mode Full modes include true color and 20 kinds of high contrast colors: white on black, black on white, yellow on black, black on yellow, white on blue and blue on white, green on black,... -
Page 18: Refresh Rate
Luna HD 24 Pro User Guide 3.11 Refresh rate - The refresh rate is 60HZ by default. - Press the positioning auxiliary button and the focus lock button simultaneously to switch between 50HZ and 60HZ. 3.12 Sound prompt setting - The default is the maximum volume. -
Page 19: Warnings And Precautions
- Please keep the machine dry and dustproof, and avoid humidity and high temperature. - Do not hit, vibrate, squeeze or fall violently. - Keep the lens and close-up lens clean. Please use the cleaning cloth Zoomax provides when... -
Page 20: Technical Specifications
Luna HD 24 Pro User Guide you need to clean them. - Please slide the XY-Table gently to prevent damage. 5. Technical specifications - Magnification：2.5x-70x - Color mode：True color + 20 kinds of color mode - Writing height：Approx. 17.5cm - Camera：Optical zoom lens，auto-focusing with resolution of 1280*720 - Screen：24 - inch monitor with resolution of 1920*1080... - Page 21 Luna HD 24 Pro User Guide ZOOMAX TECHNOLOGY CO., LIMITED 9F, Building D, Paradise Software Park, No.3 Xidoumen Road, Xihu District, Hangzhou, Zhejiang Province, 310012, China Tel: +86-571-87006308 Fax: +86-571-87397220 Email: support@zoomax.com Visit us at: www.zoomax.com...
