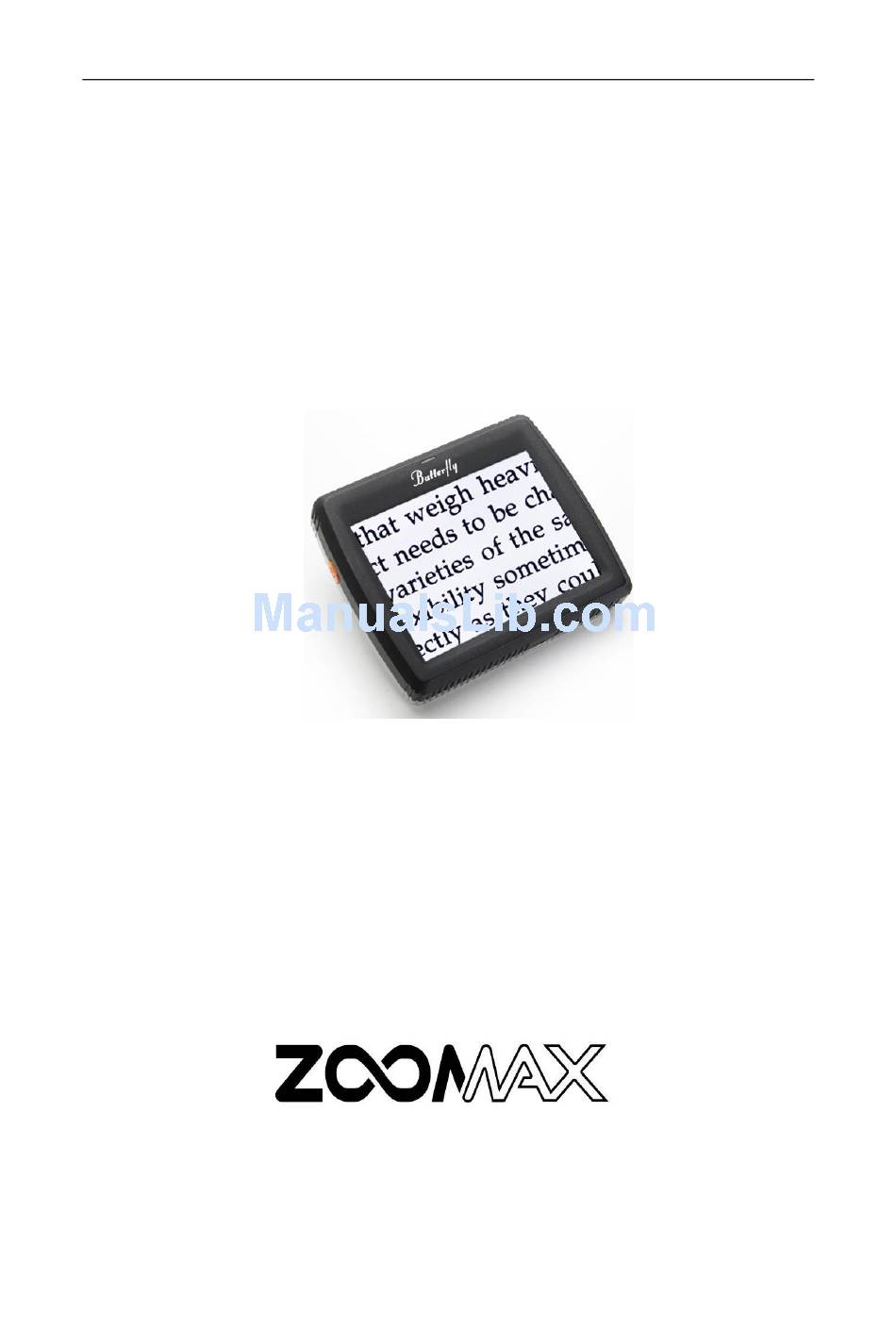

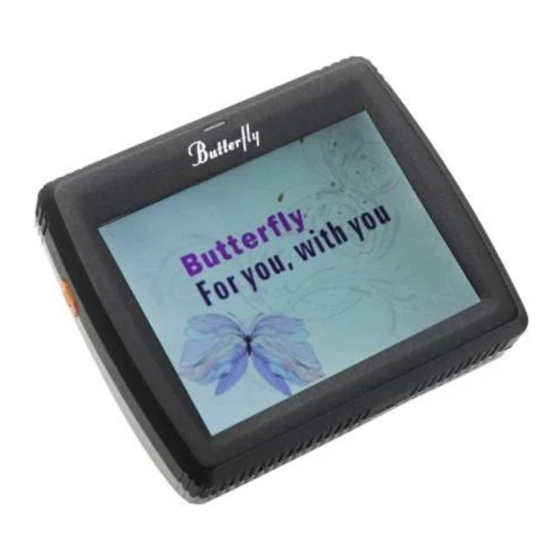

- Page 1 ® ZOOMAX Butterfly ® ZOOMAX Butterfly Handheld Video Magnifier User Manual...
-
Page 2: Table Of Contents
® ZOOMAX Butterfly Version VA1.1 Contents 1. Introduction................1 About this manual................What’s in the box?................1 2. Getting to know your Butterfly..........2 Top edge..................2 Front edge..................3 Back view..................4 Right edge..................5... - Page 3 Turning the power on / off............... Using the magnification wheel ............Selecting a viewing mode............... Using the snapshot button...............8 Writing with the Butterfly ..............Using the Butterfly reading stand............9 4. Power and battery use............11 Charging the Butterfly ..............11 System Auto Off ................11...
- Page 4 ® ZOOMAX Butterfly Appendix B: Technical information ..........13...
-
Page 5: Introduction
15 times on a 3.5” display. With its simplicity the Butterfly offers an enhanced design that extends in operating comfort. It is designed for instant use at any location. -
Page 6: What's In The Box
2. Getting to know your Butterfly Place the Butterfly directly in front of you with the display facing up and the ZOOMAX logo is on the top of the display. Top Edge The following figure shows the top edge of the Butterfly... -
Page 7: Front Edge
® ZOOMAX Butterfly 3.5” display Front side The following figure shows the front edge of the Butterfly. Page 3... - Page 8 ® ZOOMAX Butterfly Mode& magnification wheel Mode Pressing the wheel allows you to select one of the five viewing modes. Magnification Turning the wheel clockwise or counter clockwise allows you to change the magnification. Page 4...
-
Page 9: Back View
® ZOOMAX Butterfly Cord fixture Back view The following figure shows the back of the Butterfly. Page 5... - Page 10 ® ZOOMAX Butterfly Snapshot button Snapshot button Snapshot button The snapshot button allows you to take a temporary picture of text or an image, enabling you to bring the image closer to your eyes. Page 6...
-
Page 11: Right Edge
® ZOOMAX Butterfly Right edge The following figure shows the right edge of the Butterfly. On/Off switch DC IN jack On / Off switch Pressing the small round orange button for one second will switch the unit on or off. -
Page 12: Underside
® ZOOMAX Butterfly Underside The following figure shows the underside of the Butterfly. Centralized camera Collapsible reading stand Camera The Butterfly features an auto-focus camera that is centralized to the screen for an optimal ease of use while reading or writing. -
Page 13: Getting Started
Switch the unit on and off by pressing the orange button, located at the right side of the unit, for about two second. For the first time the Butterfly will start up in Photo mode. Afterward the unit will start up in the mode in which it was switched off. -
Page 14: Selecting A Viewing Mode
The snapshot button allows you to take a temporary picture of a text or an image. - Hold or place the Butterfly over the text or image. - Press the oval shaped snapshot button located at the back side above the display. -
Page 15: Writing With The Butterfly
Snapshot button will turn the lighting on too. Writing with the Butterfly The Butterfly has a super-light design enabling you to hold the unit easily while writing. Take a pen in one hand while holding the unit in your other hand above the paper and start writing. -
Page 16: Using The Butterfly Reading Stand
Using the Butterfly reading stand The Butterfly is designed to read documents comfortably on a flat surface with the use of the integrated reading stand. Pull the stand at the arrow sign to extend it. The collapsible reading stand gives you control for optimal reading comfort. -
Page 17: Power And Battery Use
4. Power and battery use Charging the Butterfly To charge the Butterfly, connect the adapter supplied in the box to the DC IN 5V jack, located at the right side of the unit. Plug the other side of the adapter into a power outlet. The orange LED indicator next to the adapter socket will glow continuously while the Butterfly is charging. -
Page 18: System Auto Off
Charging the Butterfly takes approximately three hours. A fully charged Butterfly can operate for approximately three and a half hours continuously. Please note that, for safety reasons, only the adapter that came with the Butterfly can be used to charge the unit’s battery compartment. System Auto Off This feature will turn the Butterfly off automatically if it is not used for a period of 2 minutes. -
Page 19: Appendix A: Safety
Do not expose the Butterfly to excessive heat or direct sunlight to avoid the risk of fire. _ Do not remove any parts of the Butterfly. Contact a ZOOMAX authorized service organization in your area. _ To avoid risk of electrical damage, keep your Butterfly away from fluids and chemicals. - Page 20 ZOOMAX Butterfly Do not use cleaning agents or abrasive materials as they will damage your unit. Use of the Butterfly other than described in this manual will exclude it from warranty conditions. Appendix B: Technical information Magnification: 1.5x - 15x...
- Page 21 ® ZOOMAX Butterfly Built-in Li-ion battery rechargeable, 1400mAh Weight: 120 grams / 4.2 ounces (include battery) Power supply type SMPS 100V-240V, 50 /60Hz 0.2A / 5V/1A Operation conditions: Relative humidity: <70 %, no condensation Temperature: 0 – 40 ° C Storage and transport conditions: Relative humidity: <95 %,...
- Page 22 ® ZOOMAX Butterfly Thank you for purchasing your new Zoomax Aurora HD video magnifier from Vision Australia. If you have any questions or need assistance with your new video magnifier please do not hesitate to contact us on: Phone number: 1300 847 466 And ask for the Adaptive Technology Helpdesk.
