Summary of Contents for Zoomax Luna Eye
- Page 1 Quick Start Guide Luna Eye V1.0...

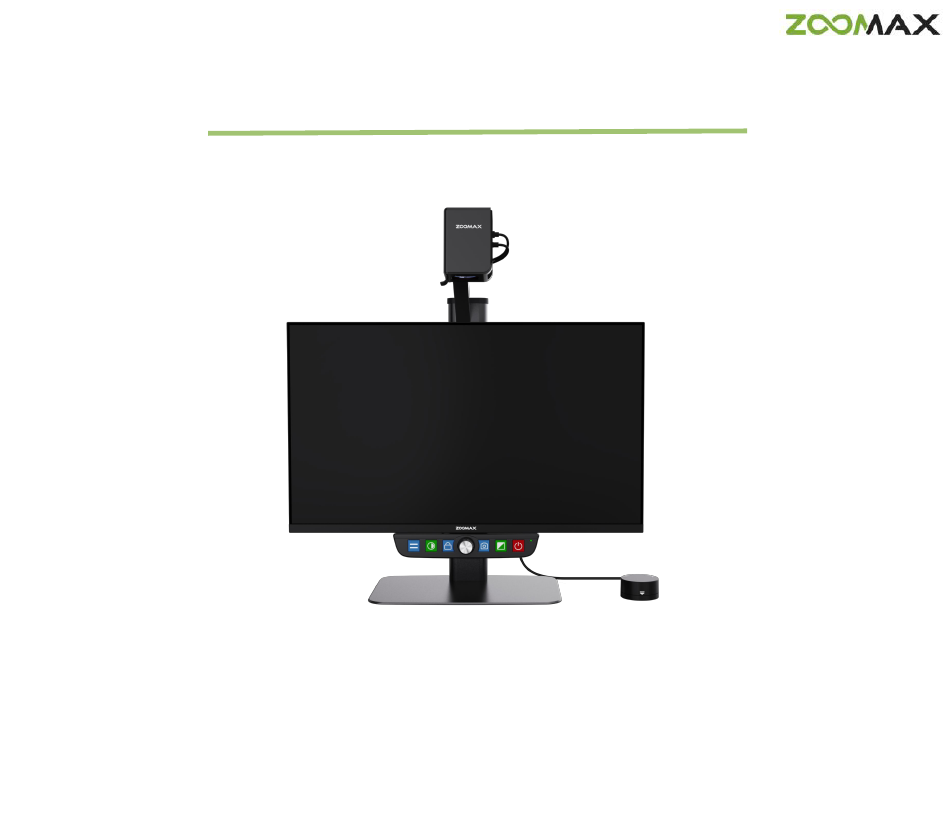

- Page 2 1. Luna Eye Overview Camera Bracket Screen Button box Base External knob...
- Page 3 2.Start the Luna Eye ♦ Connect Power Supply: Connect the power supply with the matching adapter. ♦ Connect External Knob: Connect the external knob to port on the button box interface with USB-C cable. ♦ Power On: Long press the power button on the button box for 2 seconds until you hear the buzzer.
- Page 4 Reading Line Power on/off Focus Lock Freeze Indicator Light Contrast Color Mode Zoom knob Power supply External knob port Camera port Screen port...
- Page 5 4.Use the External knob ♦ Zoom in: Rotate clockwise ♦ Zoom out: Rotate counterclockwise ♦ Freeze: Short press down...
- Page 6 5. Other functions Frequency Long press the zoom knob button call out and short press to change Color mode setting Short press the contrast button and color mode button and rotate the zoom knob to choose Reading line position Hold the reading line button while rotating the zoom knob Panning Pan left and right:...
- Page 7 ZOOMAX TECHNOLOGY CO., LIMITED Email: support@zoomax.com Visit us at: www.zoomax.com...
