- Page 1 Snow Eye User Manual V 1.1...
- Page 2 Snow Eye User Manual...
- Page 3 Snow Eye User Manual Name: Portable Electronic Video Magnifier Model: Snow Eye Intended Use: The Portable Electronic Video Magnifier is used to help people with presbyopia and low vision more easily read materials to help them work, live and study Patient Population: People with presbyopia and low vision Storage: Temperature: 0℃~30℃;...
- Page 4 9F, Building D, Paradise Software Park, No.3 Xidoumen Road, Xihu District, Hangzhou, China 310012 Copyright© 2019 ZOOMAX Technology Co., Limited. All Rights Reserved.ZOOMAX® is a trademark of ZOOMAX Technology Co., Limited in the United States and other countries. Information in this document is subject to change without notice.
- Page 5 Snow Eye User Manual without the express written permission of ZOOMAX.
- Page 6 Snow Eye User Manual Contents 1. Introduction and Usage ------------------------------------------------- 1 2. Safety and Maintenance ------------------------------------------------ 4 3. Product Detail ------------------------------------------------------------- 6 4. General Operation ------------------------------------------------------- 8 4.1 Charge the Battery ----------------------------------------------- 8 4.2 Connect With Snow 12 / Laptop / Monitor ---------------- 9 4.3 Power on/off -----------------------------------------------------11...
- Page 7 Snow Eye User Manual 4.6 Frequency -------------------------------------------------------- 14 4.7 Contrast Value Adjustment -----------------------------------15 4.8 Software Update ------------------------------------------------16 5. Technical Specification -------------------------------------------------17 6. Trouble Shooting --------------------------------------------------------18 7. Certification and Compliance ---------------------------------------- 20...
- Page 8 7x HD optical zoom lens, small and stable bracket, and very easy to use. Snow Eye can be used in office conference room as well as school with your old Snow 12 or laptop or other displays.
- Page 9 Please read this user guide carefully. This guide will help you better understand the features of Snow Eye. We constantly seek to improve our products. Therefore, it is possible that this guide is not the latest version available. You can download the latest user’s guide in the Technical Support...
- Page 10 Snow Eye User Manual What’s in the Box - Snow Eye - Power adapter - USB-C cable - HDMI to HDMI cable - HDMI Converter - Video capture card - User manual - Cleaning cloth - Protective pouch...
- Page 11 2. Safety and Maintenance ♦ To maintain Snow Eye in optimal condition: ♦ To avoid risk of fire, do not expose Snow Eye to excessive heat or direct sunlight. ♦ Use the Snow Eye in environments where the temperature is between 10℃...
- Page 12 To avoid the risk of electrical shock, do not attempt to ♦ disassemble the unit. Please refer service requests to Zoomax or an authorized repair facility. ♦ Always unplug the Snow Eye before cleaning. Use a cleaning cloth or a soft damp cloth to clean the exterior.

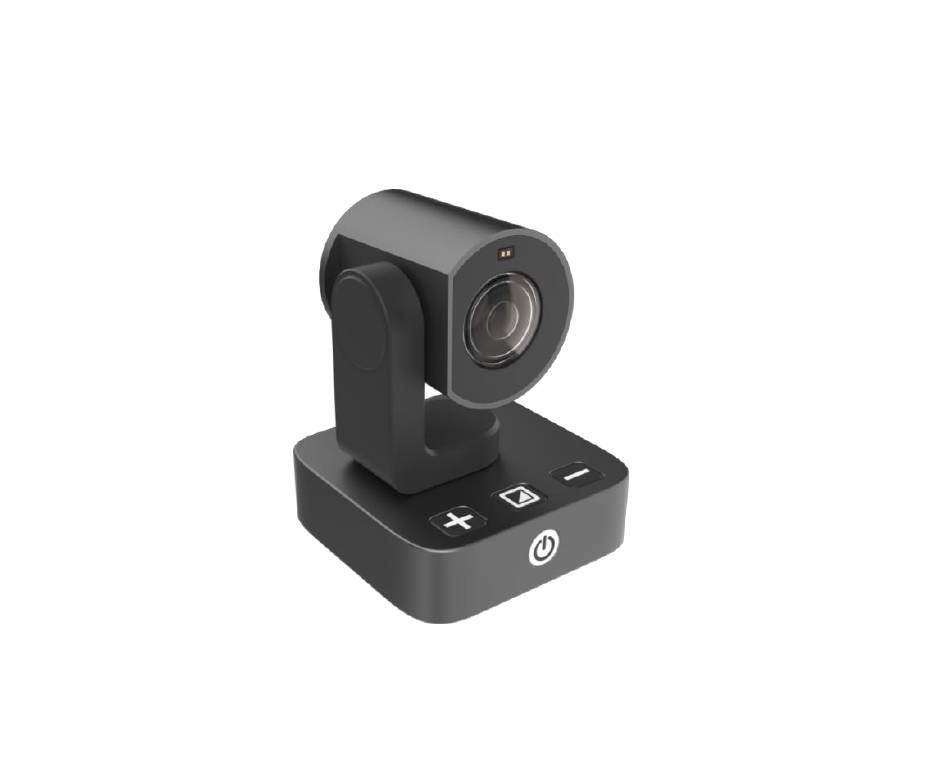

- Page 13 Snow Eye User Manual 3. Product Detail Camera Zoom out Color mode Zoom in Power on/off...
- Page 14 Snow Eye User Manual Stand Base Indicator light Charging port HDMI port...
- Page 15 When the battery is fully charged, the power indicator light turns steady yellow. It takes about 3 hours to fully charge the battery. You can use the Snow Eye for about 4 hours continuously. When...
- Page 16 Snow Eye User Manual the battery is low, the low battery icon appears in the lower left corner of the screen. Please charge the battery to avoid the device turns off unexpectedly. 4.2 Connect With Snow 12 / Laptop / Monitor...
- Page 17 Snow Eye User Manual - Connect with laptop: Use video capture card and HDMI to HDMI cable - Connect with monitor: Use HDMI to HDMI cable...
- Page 18 Snow Eye User Manual 4.3 Power on/off Power on: Long press the power button for 2s. The indicator light turns green in 5 to 6 seconds when Snow Eye is...
- Page 19 Snow Eye User Manual Power off: Long press the power button for 2s until the power button light goes out. 4.4 Zoom in/out Short press the zoom in button or zoom out button zoom in/out. Long press the buttons to zoom in/out continuously.
- Page 20 Snow Eye User Manual high contrast color with white on black and black on white. Short press the color mode button to switch colors. Long press the color button for 2s to go back to the true color directly. Color mode setting: Short press...
- Page 21 Snow Eye User Manual 4.6 Frequency Factory default frequency is 60Hz. Short press button and the color mode button at the same...
- Page 22 Snow Eye User Manual time, the screen displays the 50Hz and 60Hz. Then short press button to select. Your selection will be saved in 2s and it exit automatically. 4.7 Contrast Value Adjustment Press the color mode button and zoom in button together for 2s to enter/exit the contrast adjustment value page.
- Page 23 Snow Eye User Manual automatically in 5s without operation. 4.8 Software Update Software update is only for distributor or local service point.
- Page 24 Snow Eye User Manual Software version: Long press the color mode button and zoom out button for 4s to enter/exit the software version information page. You will see the current version number appears on the screen. 5. Technical Specification Magnification: 1X - 32X...
- Page 25 Snow Eye User Manual Weight: 350g (0.77lbs) Dimensions: 92*92*117mm (3.6*3.6*4.6in) Battery life: about 4.5 hours continuous use Charging time: about 3.5 hours Power adapter: Input: 100-240V ; Output: 5V/3A 6. Trouble Shooting ① Why the device cannot boot on after long pressing the...
- Page 26 ② The image of Snow Eye camera is blurry. - Please wave in front of the camera to trigger the focus again. ③ Snow Eye is connected with Snow 12, but no image on the screen. - Try to unplug and plug again to get the signal.
- Page 27 Snow Eye User Manual ④ Connect Snow Pad to a stand-by Snow 12 and find no image. - Unplug the connecting cable, wake up the Snow 12 and plug again. 7. Certification and Compliance Symbol Introductions Symbol Introductions AUTHORISED CE Symbol...
- Page 28 Snow Eye User Manual EUROPEAN COMMUNITY Manufacturer Manufacture Date Name Address Store in clean & dry place Batch Code protected from rain, snow, ice, salt and water. Warnings non-sterile Precautions...
- Page 29 Snow Eye User Manual medical device Use-by date Keep away from Keep dry Sunlight Consult Unique Device instructions for use Identification Country Manufacture Model Number...
- Page 30 Snow Eye User Manual Importer Distributor European Authorized Representative: Company：SUNGO Europe B.V. Address: Fascinatio Boulevard 522, Unit 1.7, 2909VA Capelle aan den IJssel, The Netherlands...
- Page 31 Snow Eye User Manual A- for Customer ___________________ ______________________ Name ___________________ Mail...
- Page 32 Snow Eye User Manual B -Product Information (for Distributor) ___________________ ______________________ Product Name/Model Purchase Date ___________________...
- Page 33 Snow Eye User Manual...
- Page 34 ZOOMAX TECHNOLOGY CO., LIMITED 9F, Building D, Paradise Software Park, No.3 Xidoumen Road, Xihu District, Hangzhou, Zhejiang Province, 310012, China Tel: +86-571-87006308 Fax: +86-571-87397220 Email: support@zoomax.com Visit us at: www.zoomax.com...
