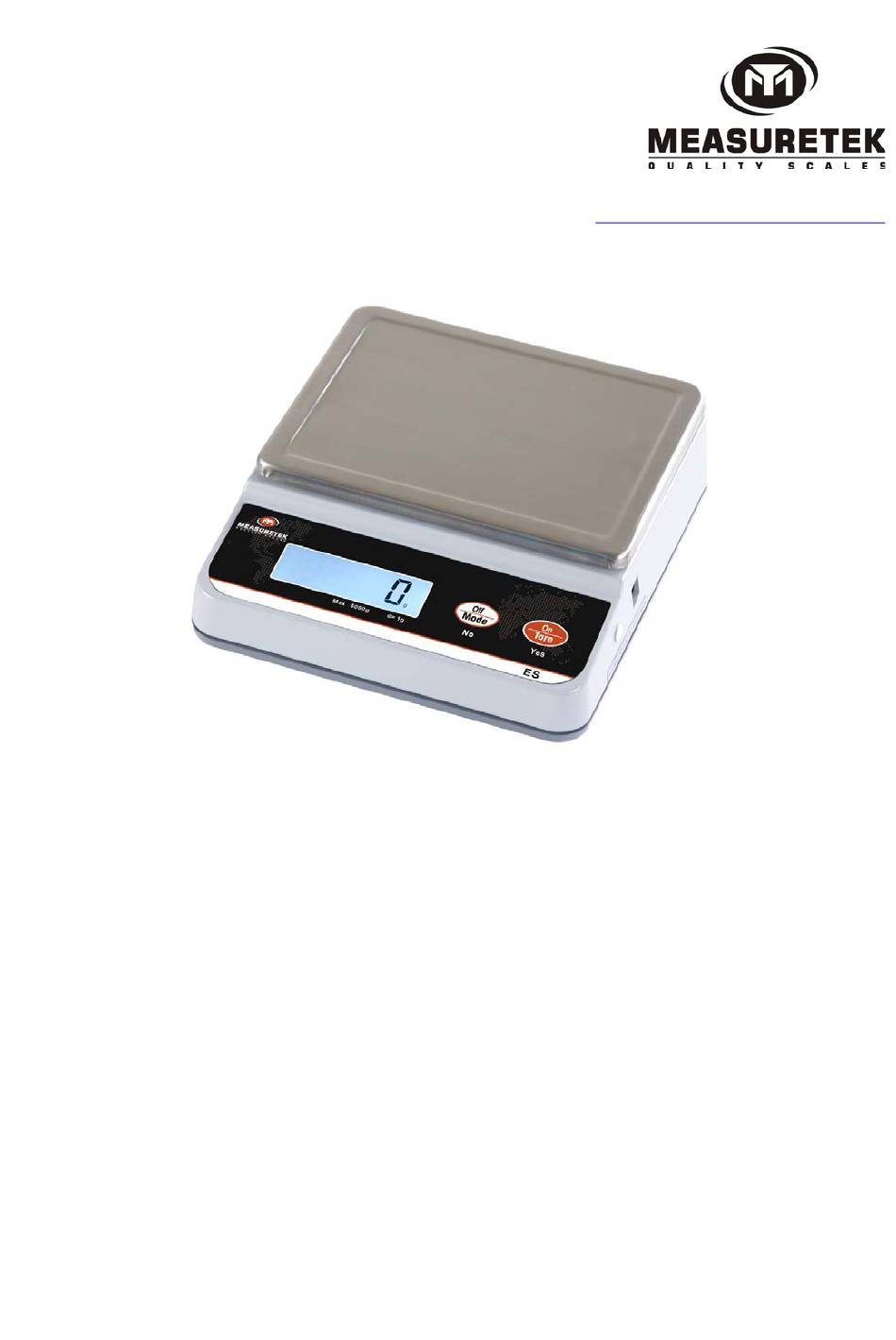

- Page 1 W W W . M E A S U R E T E K . N E T ES series User/Technical Manual Contents subject to change without notice Version 1.0 10/2016...
-
Page 2: Table Of Contents
CONTENTS 1. INTRODUCTION ....................... 1 General and Safety Information ......................... 1 Specifications ..............................1 2. Unpacking and Setup ....................... 2 Contents ................................2 3. OVERVIEW OF CONTROLS AND FUNCTIONS ............... 2 3.1 Controls ................................. 2 3.2 Front Display..............................2 3.3 Key Functions ..............................3 4. -
Page 3: Introduction
4 AA batteries or AC power adapter (6Vdc/200mA with central negative) Safe Overload Capacity Maximum capacity + 9d Platter Dimensions (L x Dia. 118 mm 166 x 128 mm Scale Dimensions(L x W 194 x 176 x 60 mm 194 x 176 x 60 mm x H) www.measuretek.net... -
Page 4: Unpacking And Setup
g - Measure unit is g lb - Measure unit is lb or lb dwt - Measure unit is dwt ct - Measure unit is ct oz - Measure unit is oz ozt - Measure unit is ozt www.measuretek.net... -
Page 5: Key Functions
Again only the weight that is added after taring will be displayed. When the container is removed, a negative value will be shown. If the scale was tared just before removing the container, this value is the gross weight of the container plus all product that was removed. www.measuretek.net... -
Page 6: Switching Measuring Unit
Note: To prevent unauthorized calibration, position the CAL lockout switch in lock position. 6. Parameter Setup Mode 6.1 Under the normal weighing mode, press and hold the ON/TARE key until scale displays “SETUP”. 6.2 Then scale displays “YES”, press the ON/TARE key to confirm entering setup mode. www.measuretek.net... -
Page 7: Parameter Menu
– = the scale turns off after 60 - 60 s 180 s 120 s 180 seconds of inactivity 180 s Press Yes to exit the setup menu or No to return to the top of setup menu www.measuretek.net... -
Page 8: Troubleshooting
AC230V/DC6V 200mA power adapter, center negative 9. One Year Limited Warranty MeasureTek products covered in this manual are guaranteed to be free from defects in material and workmanship for a period of one year after date of purchase. Misuse, accidental damage, overload, alteration, and improper installation are expressly excluded.
