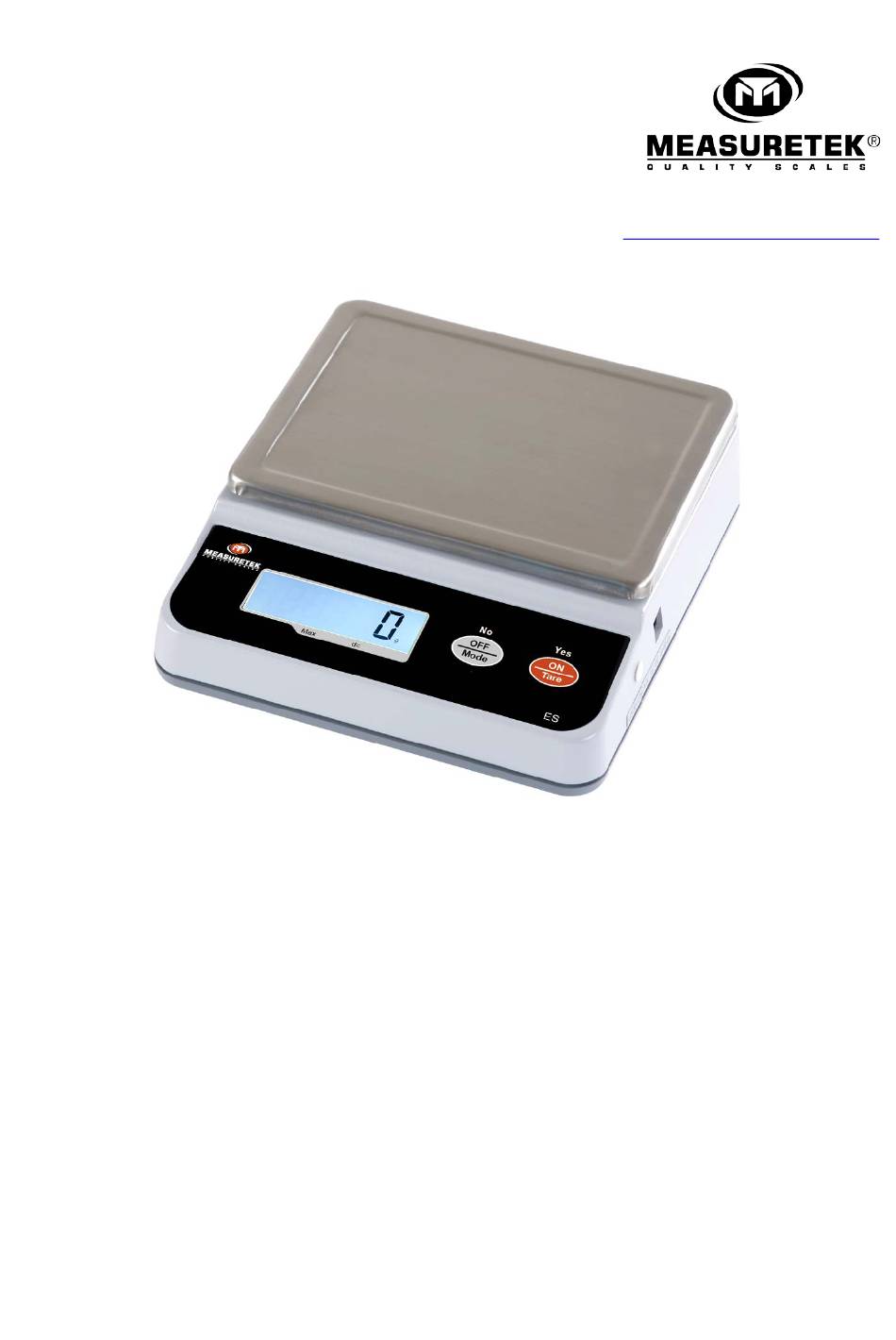

- Page 1 W W W . E A S T H I G H . C O M . C N ES series 52WX82 User/Technical Manual Contents subject to change without notice Version 1.0 10/2016...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ........................1 General and Safety Information ..........................1 Specifications ................................1 Unpacking and Setup ......................2 Contents ................................. 2 OVERVIEW OF CONTROLS AND FUNCTIONS ................. 2 3.1 Controls ................................2 3.2 Front Display ..............................2 3.3 Key Functions ..............................3 OPERATIONS ........................ -
Page 3: Introduction
1. INTRODUCTION General and Safety Information For use in dry environments only. Read and understand all operating instructions before using this product. Keep this manual for future reference. Do not drop loads on the platform. Do not place the scale upside down on the pan. ... -
Page 4: Unpacking And Setup
2. Unpacking and Setup Remove the scale from the box and place it on a firm, level surface. Avoid locations with rapid temperature changes, excessive dust, moisture, air currents, vibrations, electromagnetic fields, heat or direct sunlight. Insert 4 AA batteries or connect the supplied AC adapter to the power input receptacle on side face of the scale. Plug the AC adapter into a properly grounded power outlet. -
Page 5: Key Functions
3.3 Key Functions Button Functions Short Press: (when off) Powers on the scale (when on) Sets display to zero Tares weight of item on scale Long Press: Enters menu (CAL or Setup) Long Press: (in counting mode) Restarts counting Short Press: (Menu) Selects the displayed item Short Press: Steps through active units and modes... -
Page 6: Counting Mode
4.5 Counting Mode Before beginning, tare the weight of any container to be used, leaving the empty container on the scale. Press the OFF/MODE key to switch the unit of measure until it shows “pc Con”. press the ON/TARE key to confirm. When the scale displays “Add 5”, place the samples on the scale, press No to select the sample quantity from 5 –... -
Page 7: Parameter Setup Mode
6. Parameter Setup Mode 6.1 Under the normal weighing mode, press and hold the ON/TARE key until the scale displays “SETUP”. 6.2 Then the scale displays “YES”, press the ON/TARE key to confirm entering setup mode. 6.3 To navigate through the Setup menu, press Yes to view the setting for the menu item or press No to move to the next menu item. -
Page 8: Troubleshooting
MeasureTek distributor or service center, freight prepaid with prior return authorization, to be repaired or replaced at the manufacturer’s option. MeasureTek’s liability under this warranty is limited to the repair or replacement of the defective product and in no event shall MeasureTek be liable for... - Page 9 consequential or indirect damages.
