Summary of Contents for Measuretek EHW-EH

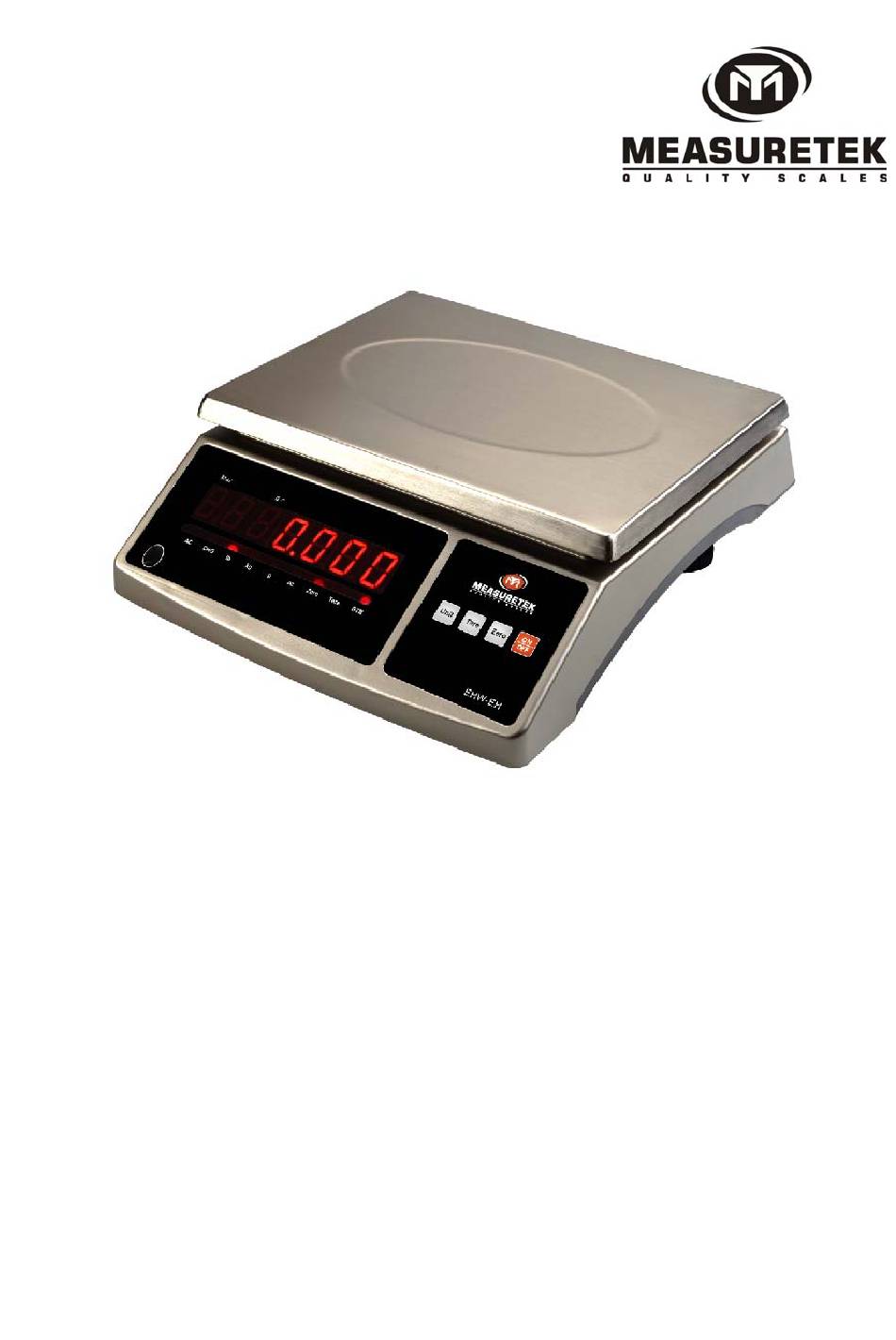

- Page 1 EHW-EH User/Technical Manual Contents subject to change without notice Version 1.0 7/2017...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ........................1 General and Safety Information ..........................1 Specifications ................................1 Unpacking and Setup ......................2 Contents ................................. 2 OVERVIEW OF CONTROLS AND FUNCTIONS .................. 2 3.1 Front Display ..............................2 3.2 Indicator Display Character Definitions ........................ -
Page 3: Introduction
Electronic scales are precision instruments. Do not operate near cell phones, radios, computers or other electronic devices that emit radio frequencies that may cause unstable readings. Specifications Model EHW-EH-0306 EHC-EH-0615 EHC-EH-1530 EHC-W-3060 Max. Capacity... -
Page 4: Unpacking And Setup
2. Unpacking and Setup Remove the scale from the box and place it on a firm, level surface. Avoid locations with rapid temperature changes, excessive dust, moisture, air currents, vibrations, electromagnetic fields, heat or direct sunlight. Adjust the leveling feet until the bubble is centered in the circle of the level indicator (located on the front panel). -
Page 5: Indicator Display Character Definitions
3.2 Indicator Display Character Definitions EHW‐EH ... -
Page 6: Key Functions
3.3 Key Functions Press to power on the scale when the scale is off Press and hold to power off the scale when the scale is on In other modes, press to exit and return to self-examination status Press to tare the weight when reading is stable, tare range: 100%FS Press to set the zero point after the scale is stable, zero range: power-on zero point±2%FS Press to change the measuring unit among: kg, g, lb, oz, lb:oz... -
Page 7: Operations
4. OPERATIONS 4.1 Power on / Power off scale Place the scale on a flat, stable surface. Level the scale using the leveling bubble at the lower left side of the display. With the weighing platter empty, press the ON/OFF key to power on the scale. The self-check will run and the scale will display a zero reading. -
Page 8: Parameter Setup Mode
5.3 Use UNIT key to choose the calibration unit kg or lb (the corresponding unit indicator will be lighted on), use TARE key to confirm the unit and go to the next step. CAL. P 3-0 5.4 The scale displays “ ”... -
Page 9: Display Symbol Meaning
8. Display symbol meaning ¯ ¯ ¯ ¯ ¯ ¯ : Weight is too large. _ _ _ _ _: Weight is too low. 0¯ ¯ ¯ ¯ ¯: Exceed zero range 0_ _ _ _: Less than zero range ...
