Summary of Contents for Measuretek EEH3

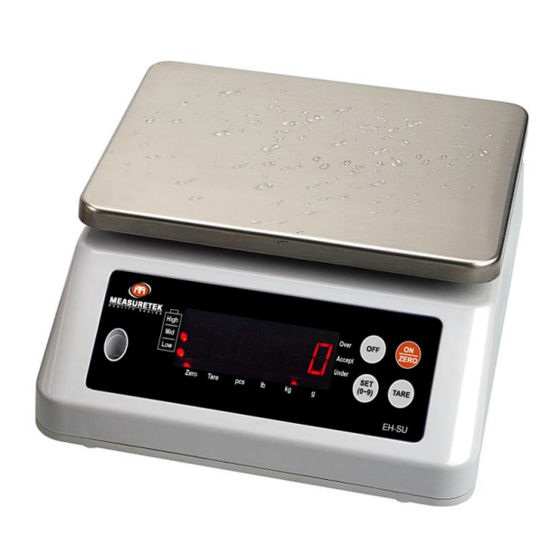

- Page 1 WATERPROOF KITCHEN SCALES 15kg x 2g EEH2 EHW-CM Operation Manual USER MANUAL EEH1 WATERPROOF KITCHEN SCALES MODEL: EEH3 EH-SU Operation Manual SOUTHERN p: 0800 503 335 | w: www.southernhospitality.co.nz DISTRIBUTED BY: HOSPITALITY e: online@southernhospitality.co.nz V2 08/2023...
-
Page 2: Table Of Contents
Thank you for choosing and purchasing our products. Please carefully read the operating instructions before use, for correct application and satisfactory results. TABLE OF CONTENTS 1. Introduction ............................General information ........................Contents ..............................2. Specifications ..........................EEH2 3. Overview of Controls and Functions .............. -
Page 3: Introduction
1. Introduction General Information • Read and understand all operating instructions before using this product. Keep this manual for future reference. • Don’t use sharp objects to operate the keyboard. The waterproof membrane may become damaged. • Record the weight shortly after loading the platform. After extended periods, the load cell’s output signature may result in a less accurate reading. -
Page 4: Specifications
2. Specifications Model EEH3 Max Capacity 15kg (33 lb) Readability 2g (0.005 lb) Divisions 7500 Construction Stainless steel pan, ABS plastic housing Waterproof Rating IP68 Weighing Units kg / lb / g / lb:oz / pcs Modes Weighing, counting, check weighing Working Temperature -5ºC to 35ºC (25ºF to 95ºF) -
Page 5: Normal Weighing Mode
4. Normal Weighing Mode 1. Place the scale on a flat, stable surface. Level the scale using the leveling bubble. ON//ZERO 2. Power on the scale by pressing the key. There will be an audible tone, the firmware version will be shown and then the display will count down from 9 to 0. When the ZERO light is on, the scale is ready for use. -
Page 6: Adjusting Display Brightness
6. Adjusting the Display Brightness 1. From normal weighing mode, press the ON//ZERO key for 3 seconds. will be displayed. Press and release the SET/0~9 key to cycle 2. The default setting of LU-1 through where is the brightest setting. is recommended to maximise LU-0 LU-3... -
Page 7: Counting Mode
8. Counting Mode The counting function calculates and displays the piece quantity of the load that is being weighed. 1. From normal weighing mode, press the SET/0~9 key for 3 seconds to enter the Setup mode. 2. Press and release the SET/0~9 key to cycle through the parameters until is shown. -
Page 8: Calibration Mode
9. Calibration Mode Note: • A standard calibration weight of 100% of the scale’s rated capacity is required. • The calibration operation must be in kg or g. • There is a seal on the underside of the scale. Removing the seal is necessary to perform a calibration, but doing so void the manufacturer’s original calibration. -
Page 9: Calibration
10. Calibration 1. From normal weighing mode, press the SET/0~9 key for 3 seconds to enter Setup mode. 2. Press and release the SET/0~9 key to cycle through the parameter modes listed below. 3. To enter a parameter mode, press the TARE key. 4. -
Page 10: Display Symbol Meaning
11. Display Symbol Meaning 0 ----------- : Power on zero-point is over (calibration zero-point) +20%FS) when scale is turned on, or the reading weight is over (power on zero-point) +5%FS when pressing ZERO button; 0 ----------- : Power on zero-point is below (calibration zero-point) -20%FS) when scale is turned on, or the reading weight is + (power on zero-point) -5%FS when pressing ZERO button;... -
Page 11: Battery And Charging
Scale has been overloaded. Remove weight, zero the scale and try again. If error code persists, loadcell has been damaged. Loadcells are not replaceable by the Err–0 user. Contact the manufacturer at www.measuretek.net SOUTHERN p: 0800 503 335 | w: www.southernhospitality.co.nz DISTRIBUTED BY: HOSPITALITY e: online@southernhospitality.co.nz...
