- Page 1 . e a s t h i g h . c o m . c n EL502 Operation Manual Contents subject to change without notice Version 1.0 11/2011...
-
Page 2: General Information

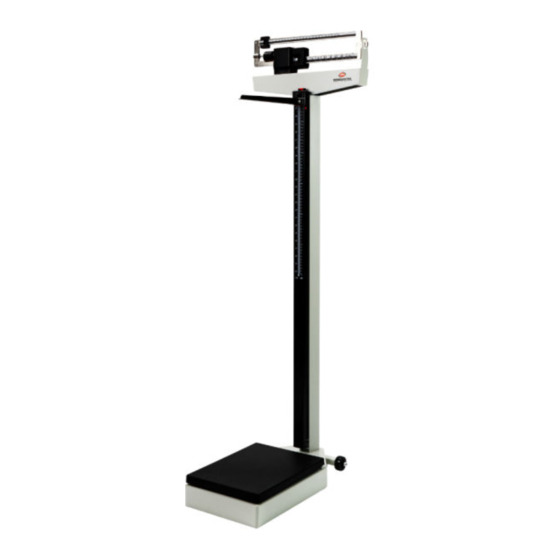

General Information General Information The EL502 Mechanical Physician Scale is ideal for use in health clinics and medical practices for height and weight measurement. The scale is durable, having a sturdy enameled steel body, removable slip-resistant plastic cover, a retractable aluminum height rod, and rear wheels. - Page 3 2. Remove the tie that secures the steel rod during transit (shown in Figure 1). Figure 1. Remove Cable Tie Insert the pillar into the scale base (shown in Figure 2), ensuring that the MEASURETEK logo on the weight beam faces the scale base.
- Page 4 5. Lay the scale on a table. Remove and discard the shipping tie wrap wires on the underside of the scale carriage as shown in Figure 4. Figure 4. Lay Scale on Table to Access Bottom of Scale EL502 www.easthigh.com.cn...
- Page 5 Figure 6. View of Linkage Underneath the Top Weigh Beam 8. Place the scale gently back on the floor. EL502 www.easthigh.com.cn...
- Page 6 2. Use the enclosed wrench to tighten the two hex-head screws. Be sure not to over-tighten. 3. To raise or lower the height rod, press the red button at the top of the height rod. Figure 7. Attach the Slotted Screw Location onto the Pillar Bolt Location EL502 www.easthigh.com.cn...
-
Page 7: Wheel Assembly
3. When moving the scale, hold the two side faces of the pillar to keep the front side of the platform away from the ground. Figure 8. Attach the Scale Wheels onto the Scale Base EL502 www.easthigh.com.cn... -
Page 8: Zero Adjustment
3. If the pointer doesn’t remain centered, turn the zero adjustment screw (shown in Figure 9) using a flathead screwdriver until the pointer remains centered within the eye loop. Weigh beam Zero Scale pointer adjustme nt screw Eye loop area Figure 9. Eye Loop Area and Zero Adjusting Screw Location (shown without height rod) EL502 www.easthigh.com.cn... -
Page 9: Troubleshooting
Year Limited Warranty Year Limited Warranty MeasureTek products covered in this manual are guaranteed to be free from defects in material and workmanship for a period of one year after date of purchase. Misuse, accidental damage, overload, alteration, and improper installation are expressly excluded.
