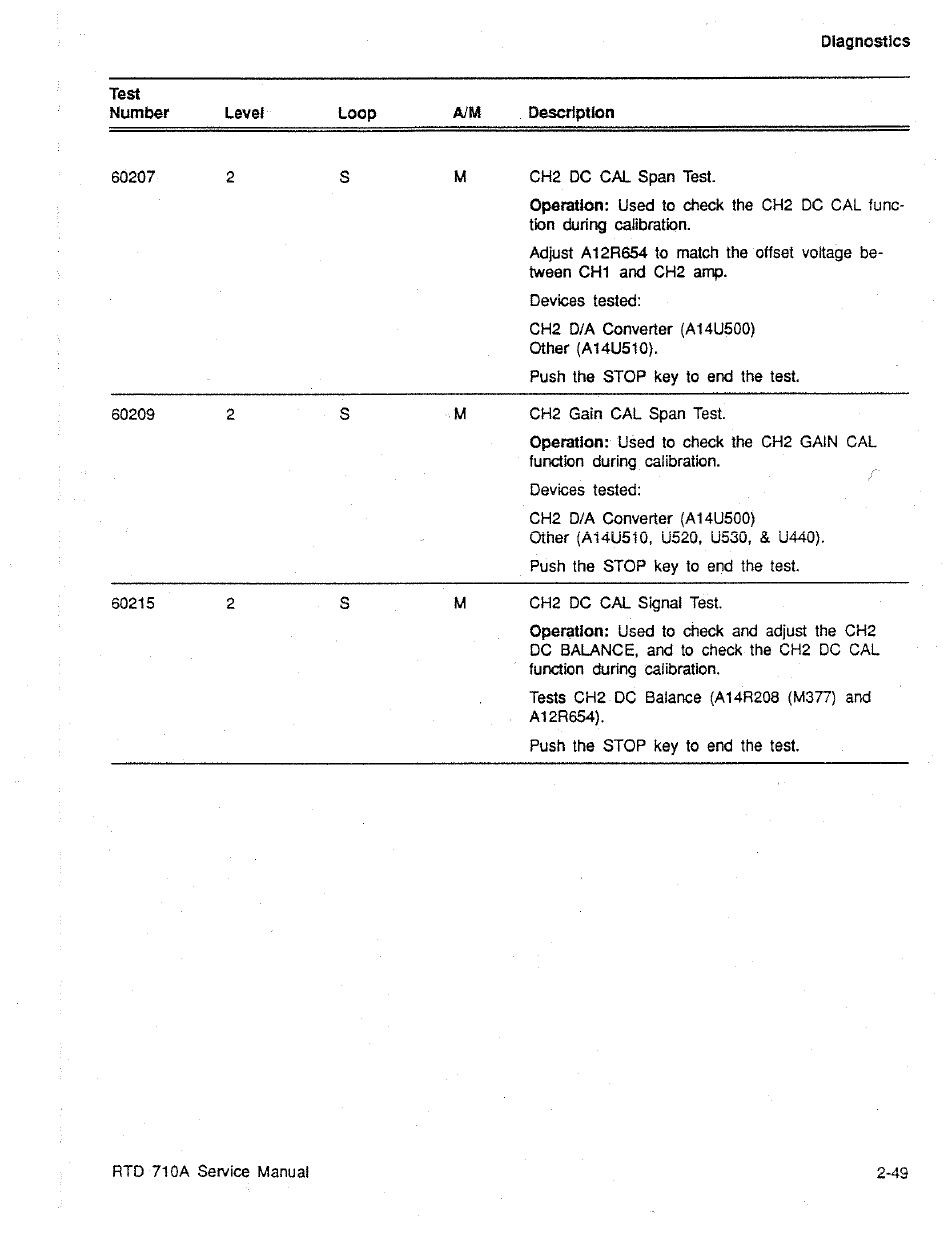

Tektronix RTD 710A Service Manual page 201

Number Level
Loop
AIM
CH2 DC CAL Span Test.
Operation: Used to check the CH2 DC CAL func-
tion during calibration.
Adjust Ai12R654 to match the offset voitage be-
Devices tested:
CH2 D/A Converter (A14U500)
Other (A14U510).
Push the STOP key to end the test.
60209 2
CH2 Gain CAL Span Test.
Operation: Used to check the CH2 GAIN CAL
function during calibration.
Devices tested:
CH2 D/A Converter (A14U500)
Other (A14U510, U520, U530, & U440).
Push the STOP key to end the test.
60215 2
CH2 DC CAL Signai Test.
Operation: Used to check and adjust the CH2
DC BALANCE, and to check. the CH2 DC CAL
function during calibration.
Tests CH2.DC Balance (A14R208 (M377) and
Push the STOP key to end the test.
