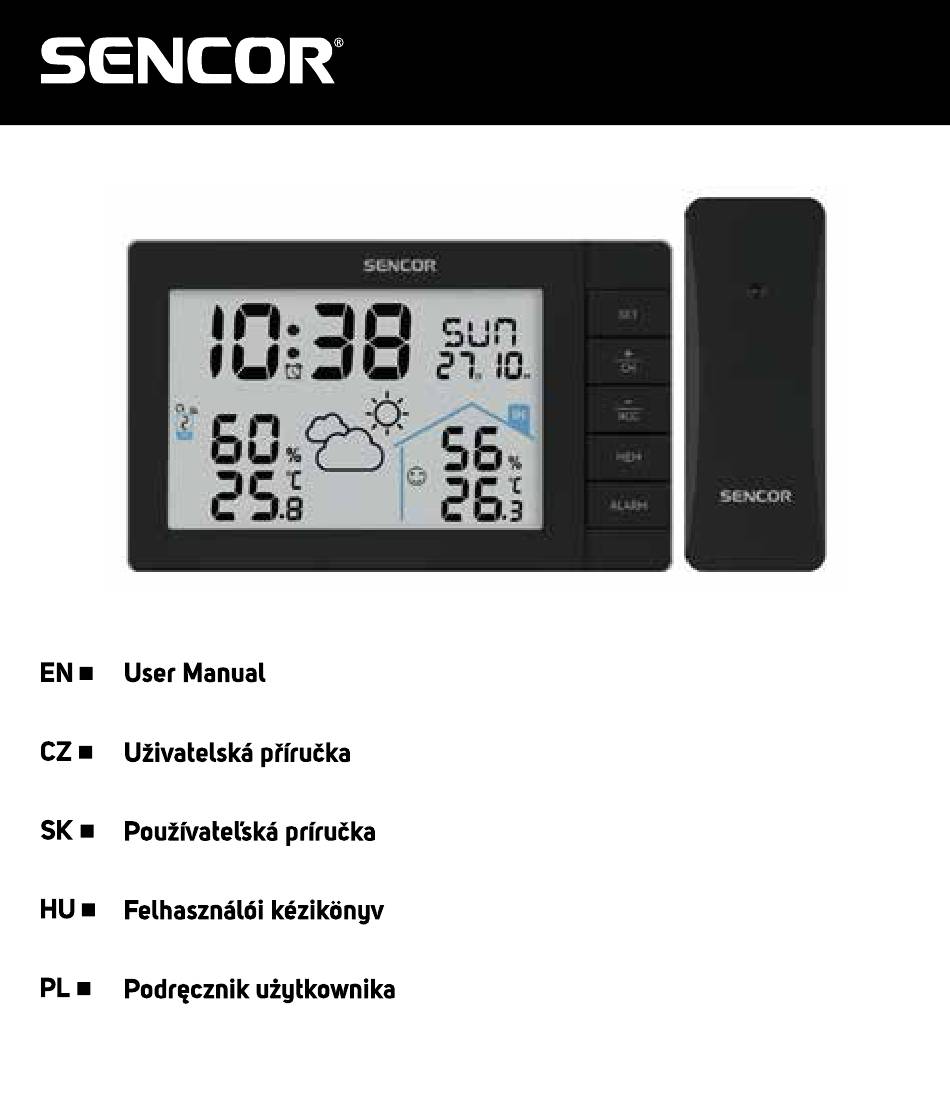

- Page 1 SWS 3200 Weather station with wireless sensor Meteorologická stanice s bezdrátovým snímačem Meteorologická stanica s bezdrôtovým snímačom Meteorológiai állomás vezeték nélküli érzékelővel Stacja pogodowa z czujnikiem bezprzewodowym...
- Page 2 SAFETY AND GUIDE – Do not clean any part of the product with benzene, thinner or other solvent chemicals. If necessary, clean it with a soft cloth. – Do not dismantle or modify the product in any way. – Never immerse the product in water, It will damage the product. –...
- Page 3 FEATURES • 5 buttons: SET, +/CH, -/RCC, MEM, ALARM; 1 top button: SNOOZE•LIGHT • 12/24 hours switchable Calendar display • Alarm with snooze • RCC-DCF automatic time adjustment • • Indoor/outdoor temperature and humidity display (switchable between °C/°F) • Indoor & Outdoor record of maximum and minimum temperature and humidity(records can be cleared manually) •...
- Page 4 Notes: 1. Make sure the remote sensor and weather station main unit are at the same channel,such as CH1 2. Do not touch any buttons in the 3 minutes to avoid sensor searching be terminated. 3. The main unit will automatically receive sensor’s RF signal in 3 MINUTES after the sensor powered on.
- Page 5 1. Snooze 2. RCC 3. Weekday 4. Date/Month 5. Low battery indicator(main unit) 6. Indoor Temperature and humidity 7. Frost Alert for outdoor channel 8. Max Min record for temperature and humidity 9. Comfortable Indicator for indoor 10. Weather Forecast 11.
-
Page 6: Sensor Installation
18. Hanging Hole 19. Alarm Sound Hole 20. Ventilation window 21. Battery Compartment Cover 22. Stand SENSOR 1. LED light 2. Battery Compartment 3. Hanging Hole 4. Channel shift 5. Rope hanging hole To get accurate readings, please keep the main unit away from any unusual source of heat or cold and make sure that the outdoor sensor is also protected from direct sunlight, rain, or the heat it may experience from being mounted on a warm wall, or be closed near to a warm wall. - Page 7 If place the sensor here, the If place the sensor there, temperature goes down,the the temperature goes up,the humidity goes up. humidity goes down. (1) This is forbidden,if the outdoor sensor is directly exposed to rain,facing direct sunlight and close to any heat source. (2).
- Page 8 (4). Make sure sensor is close to the main unit. Avoid thick walls between the units or strong interference source using same signal frequency(433Ghz). (such as TVs, microwaves, computers, etc). (5). lf the main unit disconnects most likely the sensor is too far from the main unit. Please place it nearer to the sensor.
-
Page 9: Button Function
If you have more than 1 set of weather station, please make sure they are at least in 8cm distance from each other for better reception of signals. Make sure the main unit is in wild open area, not at low blocked corner. BUTTON FUNCTION In standard mode, press and hold the SET button for 3 seconds to enter the •... -
Page 10: Time Zone Setting
In standard mode, press and hold the ALARM button for 3 seconds to enter • the alarm setting • In alarm setting mode, press +/CH and -/RCC key to set the alarm time. SNOOZE/LIGHT Turn on backlight for 8 seconds TIME SETTING In the standard mode, press and hold the SET button to enter the time setting mode,... - Page 11 • If RCC is set as ON, it will receive RCC signal every day automatically. Press and hold “-/RCC” button will start a immediate RCC signal searching. And press “-/RCC” button again will quit the RCC searching. After re-powering on or reset, it will automatically enters the RCC receiving •...
- Page 12 • When the device is trying to receive RCC signal, all the other functions will be stopped and not working , until RCC reception is finished. To stop and quit the RCC reception, press -/RCC button to quit the current • reception, the RCC icon will disappear, the unit will be back to work standardly. Note: •...
-
Page 13: Alarm Setting
ALARM SETTING • In time display mode, press the ALARM button to view the alarm time. • In alarm clock display mode, press the ALARM button to turn on/off the alarm clock. When the alarm is turn on, the alarm icon will display. In normal display mode, press and hold the ALARM key for 3 seconds to enter •... - Page 14 • Humidity detection range: 1%RH~99%RH, Lower than 1%, it will display 1%RH, higher than 99%, it will display 99%RH Outdoor temperature and humidity function Temperature detection range: -40.0 °C~60.0°C, • Lower than -40°C display: LL.L; Higher than 60°C display: HH.H. •...
-
Page 15: Comfort Level Indicator
COMFORT LEVEL INDICATOR Indoor comfort level indicator keeps you informed the comfort level in your home,and when to dehumidify or humidify. Humidity 71%-99% COMFORT 40%< Humidity<70% 1%< Humidity<39% WEATHER FORECAST WEATHER ICON Partly Description Sunny Cloudy Rainy Snowy Cloudy Weather forecast in 12+ Hour: Sunny, Partly Cloudy, Cloudy, Rainy, Snowy The weather icon displays are based on the hourly calculation of indoor/outdoor temperature &humidity. -
Page 16: Technical Specifications
BACKLIGHT When powered on,press the top button to turn on the backlight,and the backlight will last 8 seconds to save power. RF reception instructions After powering on and detecting temperature and humidity, it will automatically • enter RF reception for 3 minutes and exit immediately upon reception. •... - Page 17 • Indoor/outdoor temperature and humidity display • Frost Alert for outdoor channel • Max/Min memory records(24h) Indoor temperature range: -10°C~50.0°C • Outdoor temperature range: -40C~60C • • Indoor humidity: Range: 1%~99% • Outdoor humidity: Range: 1%~99% • Comfortable indicator for indoor 12/24 hours switchable •...
- Page 18 INSTRUCTIONS AND INFORMATION ON THE DISPOSAL OF DISCARDED PACKAGING MATERIALS Take the packaging material to a collection yard for disposal. DISPOSAL OF DISCARDED ELECTRICAL AND ELECTRONIC EQUIPMENT This symbol on the product, accessory or packaging indicates that the product must not be treated as normal household waste. Please dispose of this product in a collection yard designated for the recycling of electrical and electronic equipment.
- Page 19 Changes in the text, design and technical specifications may be made without prior notice and we reserve the right to make such changes. The original version is in Czech. Manufacturer: FAST ČR, a.s., U Sanitasu 1621, Říčany 251 01, Czech Republic info@sencor.com Authorized service centers: Visit www.sencor.com for detailed information about authorized service centers. EN – 19...
- Page 20 Manufacturer: FAST ČR, a.s., U Sanitasu 1621, Říčany 251 01, Czech Republic Visit www.sencor.com for detailed information about authorized service centers. The original version of the instructions is in the Czech language, other language versions are made by the appropriate translation.
