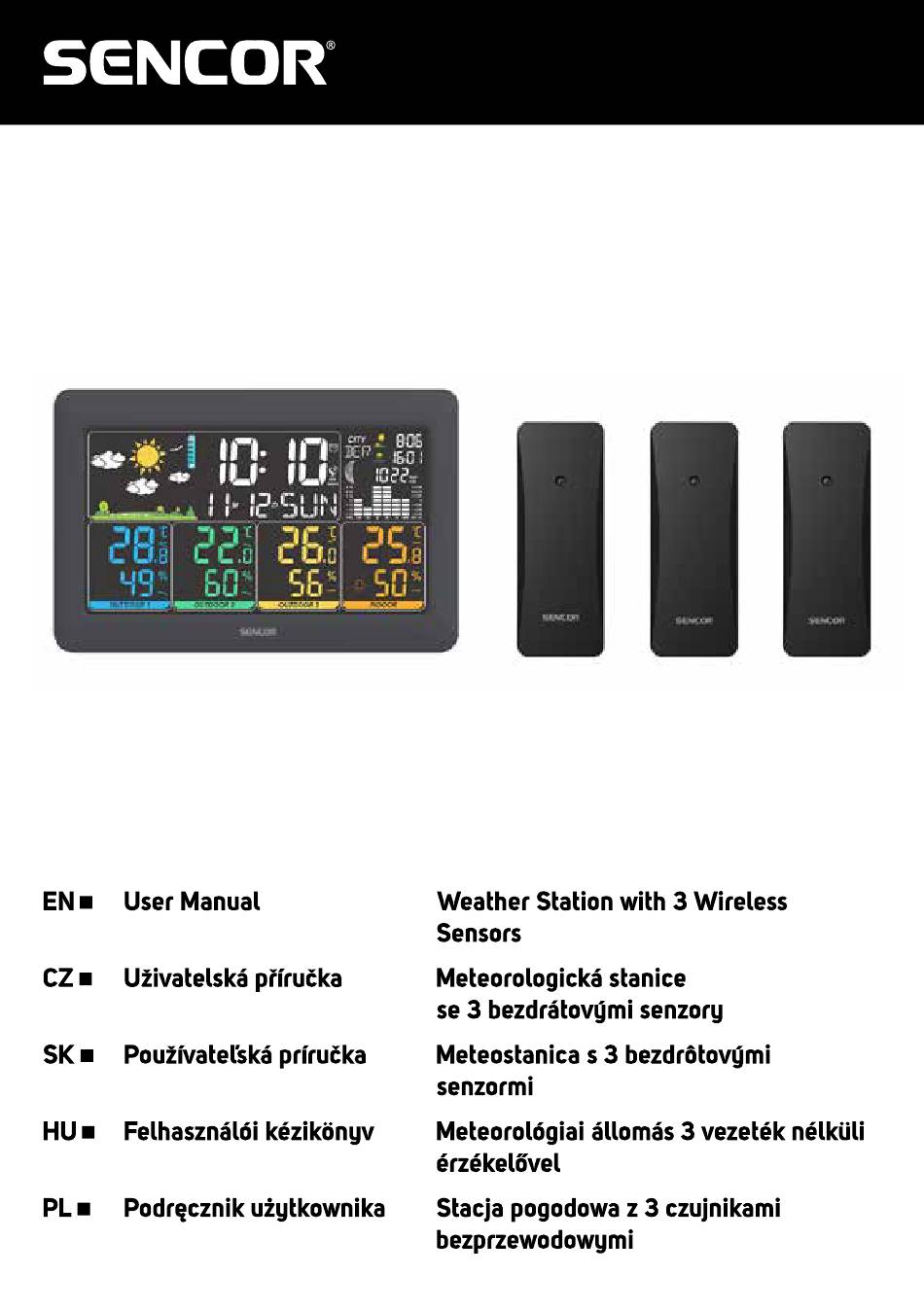

- Page 1 SWS 6300...
-
Page 2: Package Contents

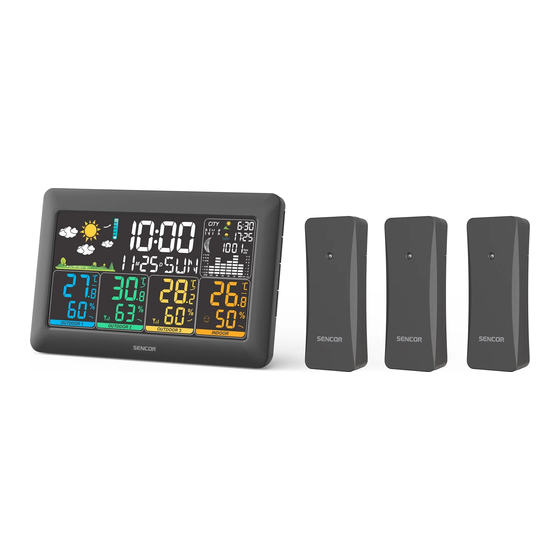

We thank you for the purchase of our Color Display Weather Station. It has been designed and constructed using innovative components and techniques to enable the perfect display by this device. This unit is also equipped with an outdoor sensor. Please read the entire instruction manual before using the product and then save it for future reference. -
Page 3: Main Unit Installation
MAIN UNIT INSTALLATION Remove the protective film that is applied to the LCD screen prior to using the product. Plugged in with power adapter and use, battery-power is optional, since previous setting will be reset when plugged out, we recommend install the batteries for the base station. Base station can stand upright on the table. SENSOR INSTALLATION Base station supports up to 3 sensors connection, the sensor switch is located inside the battery compartment, it can be switched 1,2,3, matching the info of Channel 1, Channel 2, Channel 3 that... - Page 4 Time: 24-hour format, 1 Jan,2024 Default language: GER Date format: D-M Temperature unit: °C Time difference: 0 time zone Alarm time: ALARM1: AM 6:30 OFF Weather: cloudy OVERVIEW 1. Weather Forecast trend 16. Temperature and humidity (Sensor 2) 2. Time 17. Max/Min Reading for sensor 2 3. Alarm 18. Temperature and humidity (Sensor 1) 4. Snooze 19. Low battery Indicator 5.
- Page 5 SENSOR 1. LED light 2. Battery compartment Cover 3. Hanging hole 4. Channel shift 5. Rope hanging hole Waterproofing for daily use, lever: IP54. When the red led light flash, it is sending signal to main unit. Be sure our sensor is mounted vertically, to allow moisture to drain out properly. Keep out of direct sunlight & ensure the sensor is well-ventilated. EN –...
- Page 6 DC ADAPTOR FEATURES Weather forecast with 5 status: sunny, partly cloudy, cloudy, rainy, and snowy Weekday display in 7 languages Time and Calendar(Date/Month/Year) RCC-DCF automatic time adjustment 12/24 hours format switchable Alarm with snooze function Indoor temperature and humidity Outdoor temperature and humidity Support up to 3 sensors( 3 included) Max/ Min memory records for all indoor and outdoor temperature and humidity Comfortable Indicator for all indoor temperature and humidity Temperature &...
- Page 7 In standard mode, press and hold the [CITY] button to enter the sunrise an d sunset city setting mode. In standard mode, press the [RCC] button to manually enter RCC reception, and press again during reception to exit RCC reception. In standard mode, press and hold the [RCC] button to enter RCC ON/ OFF -time zone setting mode In standard mode, press the [ALARM] button to check alarm setting. Check the alarm time, and then press this button to chose: Monday to Friday or Monday to Sunday or NO ALARM(OFF) In Alarm Checking mode, press and hold the [ALARM] button to enter the alarm time setting mode. In standard mode, press the [SNOOZE/LIGHT] button to light up the LED/adjust the brightness. During the setting process, press to save and exit. When the alarm sounds, press any button to stop the alarm. press the [SNOOZE/LIGHT] button to enter the snooze state, which will delay the alarm for 5 minutes. In any mode, toggle the volume switch on the back to change the volume, from High-Low-Off Time Setting Mode In standard mode, press the [TIME] button to switch between 12/24 In standard mode, press and hold the [TIME] button to enter the time setting mode.
- Page 8 Volume Set Toggle the volume switch on the back to set the tone volume. There are 3 levels:High,Low, Mute Moon phase MOON PHASE displays the moon phase level, and the moon phase level is divided into 12 levels, as shown in the figure below. It will display automatically once the unit receives or set with date information. New moon Waxing crescent First quarter...
- Page 9 ALARM Setting Mode In the time display mode, single press the ALARM button to switch and time display mode In the alarm time mode, single press the ALARM button to select the alarm period from M-S M-F , the setting sequence is: M-F → M-S → Off In alarm checking mode, press and hold the [ALARM] button to enter the alarm time setting mode. The set item will flash at a frequency of 1HZ. Setting sequence: hour → minute →exit After the alarm is set, the icon will display. In the alarm clock setting mode, single press the [ALARM] button to confirm the setting result and move to the next setting item. In the alarm clock setting mode, single press the [+] button to advance the setting item one step; long press this button to advance at a speed of 8 steps per second. In the alarm clock setting mode, single press the [-] button, the setting item will go back one step; long press this button will go back at a speed of 8 steps per second. If there is no operation for 20 seconds, save the current setting status and exit the alarm time setting.
- Page 10 COMFORT LEVEL INDEX Comfort Level Humidity Range 1-39% 40-70% Good ≥ 71% WEATHER FORECAST AND TREND WEATHERICON Description Sunny Partly cloudy Cloudy Rainy Snowy - Weather forecast in 12+ Hour: Sunny, Partly Cloudy, Cloudy, Rainy, Snowy - The weather icon displays are based on the hourly calculation of indoor/outdoor temperature &humidity. The forecast station predict weather conditions for the next 12 hours with 70-75% accuracy. The remote sensor should be put on the outside to have accurate outdoor data. Or it will effect the accurate of weather forecast.
- Page 11 BACK LIGHT When DC powered, backlight brightness is 100%, 60%, 30%, 5%, OFF, When batteries powered, backlight brightness is 100% When DC power supply, after power-on ,the default backlight is 100% bright and always on. press the SNOOZE/LIGHT button and the backlight will cycle between high brightness 100%→60%→5%→OFF. When Battery-powered, after power-on , the default backlight is 100% on for 20seconds. When it is off, press any button to highlight the backlight for 20seconds. If there is button operation, the backlight will be on. After the operation is completed, it will delay for 1minute and turn off. When the alarm clock is encountered in the OFF state, the backlight will light up according to the set brightness for 20 seconds, and then off. The brightness cannot be changed during RCC reception. The brightness before RCC will also be the brightness during RCC. When the battery is powered, plug in the DC to return to the default backlight, which is highlighted and always on.
- Page 12 Note: When there is a conflict between RF, RCC and alarm sound, the priority order is: Alarm → RCC → RF l When the RF is on reception for 3 minutes, it is interrupted by RCC or interrupted by an alarm. After the RCC reception is completed or the alarm is completed, the RF is turned on again for 3 minutes. RCC Function During Time setting, if RCC is set OFF, the RCC function is turned off permanently, until it is set ON again. After power-on or reset, it will automatically enters the RCC receiving mode. The triangular tower symbol displays and flashes at a frequency of 1Hz. If there is a connection during RCC reception, After receiving a valid signal, the triangular tower symbol displays statically, and the signal wave symbol flashes at a frequency of 1Hz. If the signal is received during valid reception, If the signal is suddenly interrupted, the signal wave symbol...
-
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS Weather Forecast Icon (Sunny, Partly Cloudy, Cloudy, Rainy, Snowy) 12 ~ 24 Hour Forecast Based on Changing Air Pressure and Temperature Indoor Temperature and Humidity Reading with Comfort and Trend Indicator Outdoor Temperature and Humidity Reading with Trend Indicator Radio Controlled Clock by Signal DCF77 ( Manual Setting Possible) Barometric Pressure Value Bar Chart for Pressure Changes (-1, -2, -3, -6, -12 hours) Digital Time, Date and Weekday Sunrise / Sunset Time Moon Phase Comfort Level Indication (3 Levels) - Page 14 150 Cities for Sunrise and Sunset Country CITY Abbr. Germany Aachen Germany Berlin Germany Dusseldorf Germany Dresden Germany Erfurt Germany Frankfurt Germany Flensburg Germany Freiburg Germany Hannover Germany Bremen Germany Hamburg Germany Rostock Germany Stralsund Germany Cologne Germany Kiel Germany Kassel Germany Leipzig...
- Page 15 Spain Valencia Spain Zaragoza France Besancon France Biarritz France Bordeaux France Brest Country CITY Abbr. France Cherbourg France Lyon France Marseille France Monaco France Metz France Nantes France Nice France Orleans France Paris France Perpignan France Lille France Rouen France Strasbourg France Toulouse...
- Page 16 Italy Parma Italy Perugia Italy Rome Italy Turin Italy Trieste Italy Venice Italy Verona Italy Imperia Ireland Dublin Duchy of Luxembourg Luxemburg Norway Bergen CITY Abbr. Norway Oslo Norway Stavanger Netherlands Amsterdam Netherlands Eindhoven Netherlands Enschede Netherlands Groningen Netherlands The Hague Netherlands Rotterdam Portugal Evora...
- Page 17 Belgium Liege Switzerland Basel Switzerland Bern Switzerland Chur Switzerland Geneva Switzerland Locarno Switzerland Lucerne Switzerland St.Moritz Switzerland St.Gallen Switzerland Sion Switzerland Vaduz Switzerland Zurich Czech Republic Prague Greece Athens Romania Bucharest Bulgaria Sofia PRECAUTIONS Do not clean any part of the product with benzene, thinner or other solvent chemicals. When necessary, clean it with a soft cloth.
- Page 18 To dispose of this product, please ask your local authorities or dealer for the necessary information on correct disposal. This product complies with EU requirements. FAST ČR, a. s. hereby declares that the radio device type SWS 6300 complies with Directive 2014/53/EU. For full version of the EU declaration of conformity, please refer to the website: www.sencor.cz Changes in the text, design and technical specifications may be made without prior notice and we reserve the right to make such changes. The original version is in Czech. Manufacturer: FAST ČR, a.s., U Sanitasu 1621, Říčany 251 01, Czech Republic Authorized service centers: Visit www.sencor.com for detailed information about authorized service centers. EN – 18...
- Page 19 Manufacturer: FAST ČR, a.s., U Sanitasu 1621, Říčany 251 01, Czech Republic Visit www.sencor.com for detailed information about authorized service centers. The original version of the instructions is in the Czech language, other language versions are made by the appropriate translation.
