Summary of Contents for Sencor SWS 9400

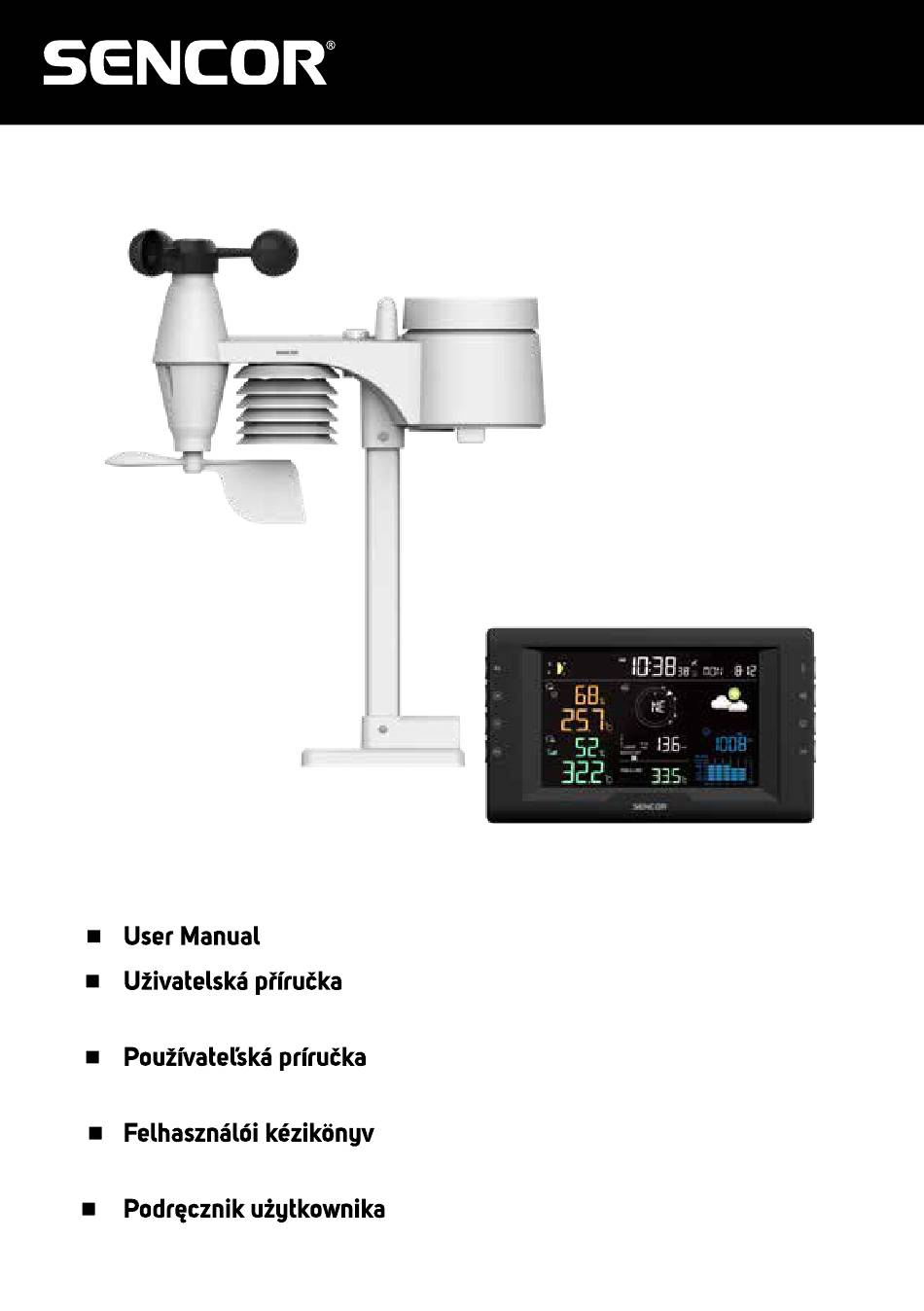

- Page 1 SWS 9400 Weather station with wireless sensors Meteorologická stanice s bezdrátovými senzory Meteorologická stanica s bezdrôtovými senzormi Meteorológiai állomás vezeték nélküli érzékelőkkel Stacja pogodowa z czujnikami bezprzewodowymi...
- Page 2 TABLE OF CONTENTS Introduction ................................. 4 Quick start guide..............................4 Package contents ............................... 5 Pre installation ................................5 Checkout ................................. 5 Site selection ..............................5 Getting started ................................6 Wireless 5-in-1 sensor ............................. 6 Install Wireless 5-in-1 sensor array ......................... 6 4.2.1 Battery and installation ..........................
- Page 3 ABOUT THIS USER’S MANUAL This symbol represents a warning. To ensure safe use, always adhere to the instructions described in this documentation. This symbol is followed by a user’s tip. PRECAUTIONS Keeping and reading the “User manual” is highly recommended. The manufacturer and supplier cannot accept any responsibility for any incorrect readings, export data lost and any consequences that occur should an inaccurate reading take place.
- Page 4 Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation. Replacement of a battery with an incorrect type can result in an explosion or the leakage of flammable liquid or gas. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, can result in an explosion.
- Page 5 2. PACKAGE CONTENTS You can find the follow items in the box. User manual 8-in-1 sensor array Weather station console Power adaptor Mounting clamp Rubber pad x 2 Pole mounting stand Plastic pole Hex nut x 2 for Flat washers x 4 for Hex nuts x 4 for Mounting Screws x 4 for Mounting clamp Mounting clamp clamp...
- Page 6 4. GETTING STARTED 4.1 Wireless 5-in-1 sensor Rain collector Wind cups Drain holes Balance indicator Radiation shield Battery door Antenna Wind vane Mounting clamp Mounting pole Red LED indicator Rain sensor Mounting base [ RESET ] key Tipping bucket 4.2 Install Wireless 5-in-1 sensor array Your wireless 5-in-1 sensor array measures wind speed, wind direction, rainfall, temperature and humidity for you.
- Page 7 4.2.2 Assembly the stand and pole Step 1 Insert the top side of the pole to the square hole of the weather sensor. Note: Ensure the pole and sensor’s indicator align. Step 2 Place the nut in the hexagon hole on the sensor, then insert the screw in other side and tighten it by the screw driver.
- Page 8 Install the wireless 5-in-1 sensor in an open Add rubber location with no obstructions above and pads around the sensor for accurate rain and before wind measurement. Install the sensor with Point to mount on the smaller end facing the North to properly NORTH the pole orient the wind direction vane.
- Page 9 3. Distance. Path loss occurs naturally with distance. This device is rated to 150m (450 feet) by line of sight (in interference free environment and without barriers). However, typically you will get 30m (100 feet) maximum in real life installation, which includes passing through barriers. 4. Barriers. Radio signal are blocked by metal barriers such as aluminum cladding. Please align the sensor array and console to get them in clear line of sight through window if you have metal cladding. The table below show a typical level of reduction in signal strength each time the signal passed through these building materials Materials Signal strength reduction...
- Page 10 2. Connect the display console power jack to AC power with the adaptor included. Note: The backup battery can backup: Time & Date & Max / Min weather records, rainfall records and alert setting values / status. If no display appears on the LCD after inserting the batteries, press [ RESET ] key by using a pointed object.
- Page 11 5. DISPLAY CONSOLE FUNCTIONS AND OPERATION 5.1 Screen Display 1. Time, Date, Moon phase 2. Indoor temperature and humidity 3. Outdoor temperature and Humidity 4. Wind direction and speed 5. Feels like, Heat index, Wind chill and Dew point 6. Weather forecast 7.
- Page 12 5.2 Console Key / Part Name Description Display screen SNOOZE Press to stop alarm sound MEMORY Press to switch between maximum and minimum values HISTORY Press to view the past 24 hours records ALERT Press to view alert values INDEX Press to switch between Feels Like, Wind chill, Heat index and Dew point WIND Press to switch between average wind speed and gust...
- Page 13 5.4 Normal time and calendar section 1. Moon phase 2. Time 3. Alarm 4. Ice pre-alert 5. Day of the week 6. Date 5.5 Radio controlled / atomic clock function When the unit receives RCC signal, a sync-time symbol will appear on the LCD, and synchronizes daily.
- Page 14 5.5.3 Manually set Time, Date and other setting To set the clock/calendar manually, first disable the reception by holding the RCC key for 8 seconds. Then press and hold [ CLOCK SET ] key for 2 seconds to enter the setting mode. Press [ ] or [ ] key to adjust, and press [ CLOCK SET ] key to proceed with next step of the setting. Please refer to following setting procedures.
- Page 15 5.6.2 Stop alarm alert & snooze 1. Press [ SNOOZE ] key to stop the current alarm and enter snooze. Alarm icon will be flashing continuously. The alarm will sound again in 5 minutes. Snooze can be operated continuously in 24 hours.
- Page 16 5.9 Barometric pressure The atmospheric pressure is the pressure at any location of the earth caused by the weight of the column of air above it. One atmospheric pressure refers to the average pressure and gradually decreases as altitude increases. Meteorologists use barometers to measure atmospheric pressure. Because absolute atmospheric pressure decreases with altitude, meteorologist correct the pressure relative to sea-level conditions.
- Page 17 5.10.1 To select the rainfall display mode The device displays how many mm/inches of rain are accumulated in an hour time period, based on current rainfall rate. Press the [ RAIN ] key to toggle between: RATE Current rainfall rate in past an hour DAILY The DAILY display indicate the total rainfall from midnight WEEKLY...
- Page 18 5.11.2 TO SELECT THE WIND DISPLAY MODE Press the [ WIND ] key to toggle between: AVERAGE The AVERAGE wind speed will display the average of all wind speed numbers recorded in the previous 30 seconds GUST The GUST wind speed will display the highest wind speed recorded from last reading The wind level provides a quick reference on the wind condition and is indicated by a series of text icons Level LIGHT...
- Page 19 39 ~ 49 km/h Large branches in motion. Whistling 25 ~ 30 mph heard in overhead wires. Umbrella Strong breeze use becomes difficult. 22 ~ 27 knot Empty plastic bins tip over. 10.8 ~ 13.8 m/s 50 ~ 61 km/h 31 ~ 38 mph Whole trees in motion. Effort needed High wind to walk against the wind.
- Page 20 5.12.2 Heat index The heat index, which is determined by the wireless 5-in-1 sensor’s temperature & humidity data, when the outdoor temperature is between 27°C (80°F) and 50°C (120°F). Heat Index range Warning Explanation 27°C to 32°C (80°F to 90°F) Caution Possibility of heat exhaustion 33°C to 40°C (91°F to 105°F) Extreme Caution Possibility of heat dehydration 41°C to 54°C (106°F to 129°F) Danger Heat exhaustion likely ≥55°C (≥130°F) Extreme Danger...
- Page 21 5.15 High / Low alert High / Low alert are used to alert you of certain weather conditions. Once activated, the alarm will turn on when a certain criterion is met. Step Mode Setting procedure OUT temperature Press [ ] or [ ] key to adjust the OUT temperature high alert value. [ALERT] high alert Press [ALARM] key to on / off the alert.
- Page 22 5.16.1 Maximum / minimum memory function 1. Press the [ MEMORY ] key to check the maximum / minimum records. The checking orders will be: Outdoor max temperature Outdoor min temperature Outdoor max humidity Outdoor min humidity Indoor max temperature Indoor min temperature Indoor Max humidity Indoor min humidity ...
- Page 23 6. MAINTENANCE 6.1 BATTERY REPLACEMENT When low battery indicator “ ” is displayed in Out section of the LCD display, it indicates that the wireless 5-in-1 sensor battery power give wireless sensor shown is low respectively. Please replace with new batteries. 6.2 Re-pairing the sensor array manually Whenever you changed the batteries of the 5-in-1 weather sensor array or other additional sensors, re- synchronization must be done manually.
- Page 24 Long-term exposure to high humidity environment. Prolonged exposure to high humidity, whether salty or acidic, can easily cause premature failure of metal parts. In a hot and dry environment, the lifespan of a weather station is known to last up to 5 years. Hurricanes and tropical storms can also shorten the lifespan of weather stations.
- Page 25 Barometer Barometer unit hPa, inHg and mmHg Measuring range 540 ~1100hPa (700 ~ 1100hPa ± 5hPa) / (540 ~ 696hPa ± 8hPa) (20.67 ~ 32.48inHg ± 0.15inHg) / (15.95 ~ 20.55inHg ± 0.24inHg) Accuracy (525 ~ 825mmHg ± 3.8mmHg) / (405 ~ 522mmHg ± 6mmHg) Typical at 25°C (77°F) Resolution 1hPa / 0.01inHg / 0.1mmHg Indoor temperature Temperature unit °C and °F Accuracy +/- 1°C or 2°F typical @ 25°C (77°F) Resolution °C / °F (1 decimal place) Indoor humidity Humidity unit 20 ~ 40% RH, ± 8% RH, at 25°C (77°F) 41% ~ 70% RH, ± 5% RH, at 25°C (77°F) Accuracy 71% ~ 90% RH, ± 8% RH, at 25°C (77°F) <20%: LO;...
- Page 26 8.2 Wireless 5-in-1 sensor Dimensions(W x H x D) 343.5 x 393.5 x 136 mm (13.5 x 15.5 x 5.35in) installed mounting Weight 721g (not include batteries) 3 x AA size 1.5V battery ( Non-rechargeable Lithium batteries Main power recommended) Weather data Temperature, humidity, wind speed, wind direction and rain RF transmission range Up to 150m RF Frequency 868MHz Transmission interval 12 seconds -40 ~ 60°C (-40 ~ 140°F) Non-rechargeable Lithium batteries Operating temperature range...
- Page 27 This product complies with EU requirements. FAST ČR, a. s. hereby declares that the radio device type SWS 9400 complies with Directive 2014/53/EU. For full version of the EU declaration of conformity, please refer to the website: www.sencor.cz Changes in the text, design and technical specifications may be made without prior notice and we reserve the right to make such changes.
- Page 28 Manufacturer: FAST ČR, a.s., U Sanitasu 1621, Říčany 251 01, Czech Republic Visit www.sencor.com for detailed information about authorized service centers. The original version of the instructions is in the Czech language, other language versions are made by the appropriate translation.
