STI 01 Series Manual

Waterproof (WRP2) ReSet Call Point, (WSS3) StopperPush & StopperLatch
New Waterproof (WRP2) ReSet is a unique all weather surface-mounted manual call point that mimics the feel of breaking glass whilst
offering the user the benefits and safety advantages of a glass-free resettable operating element. Specially designed for use with harsh
environments, the Waterproof ReSet is ideal for industries that are sensitive to broken glass along with outdoor applications such as: oil
rigs, ships, factories and wash-down areas. Once activated a warning flag drops into view, easily identifying that the call point that has
been operated. Also available is the New Waterproof (WSS3) StopperLatch format: once activated, a key can be used to quickly and
conveniently reset the unit, and the Waterproof (WSS3) StopperPush button is also available where a momentary push-and-release
function is required.

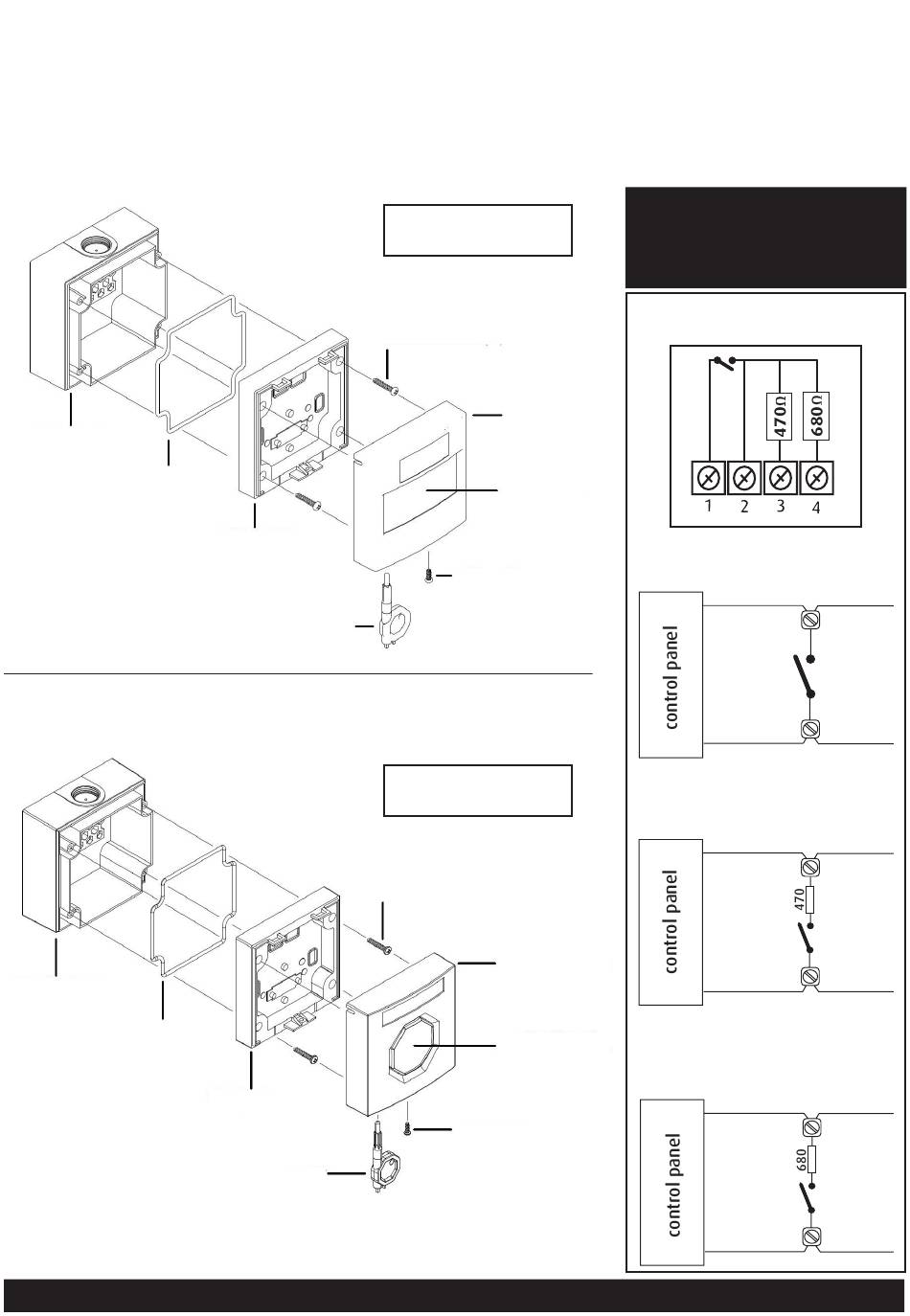

EN54 WATERPROOF
BACK BOX
'O' RING
EN54 WATERPROOF
BACK BOX
'O' RING
EN54 WATERPROOF
CHASSIS
RESET KEY
EN54 WATERPROOF
CHASSIS
RESET KEY
(STOPPERLATCH ONLY)
Need help? Call our Technical Support Team on Tel: 44 (0)1527 520999
Series 01 & 11
WRP2 ReSet
Call Point
THREAD FORMING SCREW (X4)
RESET LID
OPERATING
ELEMENT
SECURITY SCREW
WSS3 StopperLatch
& StopperPush
THREAD FORMING SCREW (X4)
MOMENTARY AND
LATCHING PUSH
BUTTON COVER
MOMENTARY AND
LATCHING PUSH
BUTTON
SECURITY SCREW
Connection Options for
Waterproof (WRP2)
ReSet Call Point 01
Waterproof (WRP2) ReSet
Series 01 Configuration
Option 1 terminals 1 & 2
Option 1 terminals 1 and 2
Option 1 terminals 1 and 2
Option 1 terminals 1 and 2
Normally open switch closing on alarm
Configuration series 01
Option 2 terminals 1 & 3
Normally open switch closing on alarm
with a 470 ohm resistor fitted in series
Option 2 terminals 1 and 3
Option 2 terminals 1 and 3 with the switch
Option 2 terminals 1 and 3
470
680
Option 3 terminals 1 & 4
Normally open switch closing on alarm
with a 680 ohm resistor fitted in series
Option 3 terminals 1 and 4
Option 3 terminals 1 and 4
with the switch
Option 3 terminals 1 and 4
WATERPROOF RESET
SERIES 01
1 1
1
1
1
1
2
2
2
2 2
2
1 1
1
1
1
1
3 3
3 3
3 3
1 1
1 1
1
1
4 4
4 4
4 4
