SET UP
1.
Key in OFF position
4.
Choose setting – refer to switch table,
default settings shown below
6.
Test – place magnet next to reed, turn on,
separate magnet from reed
Exit Stopper
Quick Install

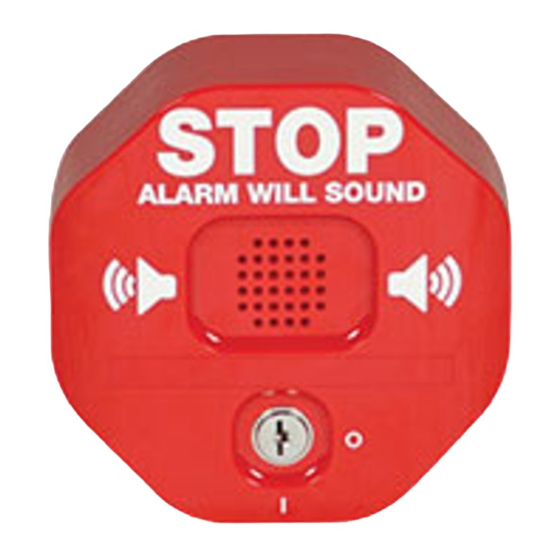

STI-6400 Series
2.
Remove cover from base,
push on lock to separate
LED
LED - Do Not Touch
DO NOT TOUCH
ON
OFF
®
3.
Unwrap battery and connect
5.
Terminal block (for remote and
relay options) – refer to full install
for wiring connections
7.
Apply language label if desired
