On the Left Side of the Tablet PC

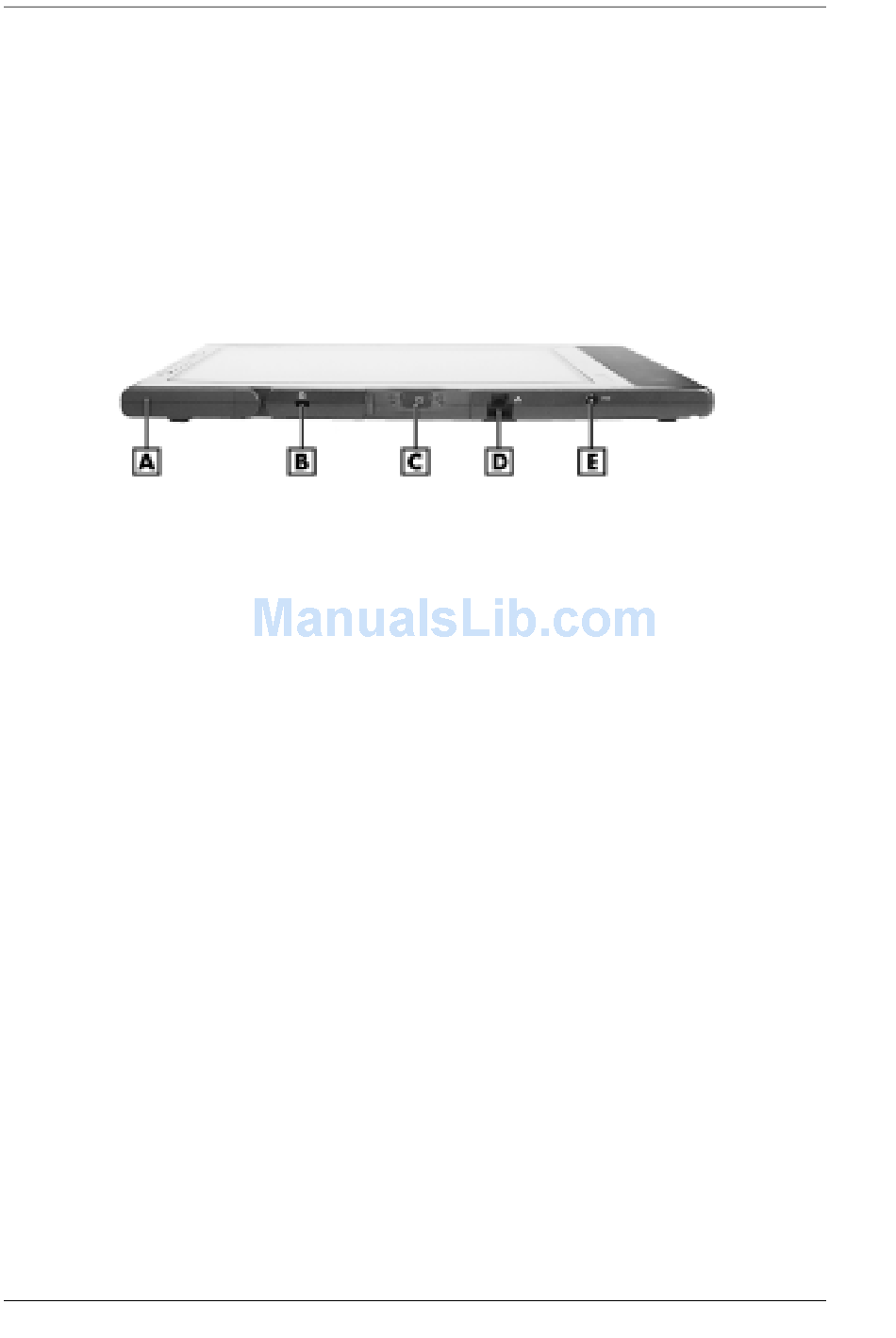

The left side of your NEC Versa LitePad tablet PC provides the
features shown in the following figure. Feature descriptions follow the
figure.
A – Wireless LAN Antenna
B – Kensington Lock Slot
C – VGA Port (behind cover)
Wireless LAN Antenna — Pivot the wireless LAN antenna away
from the tablet to adjust communication with your LAN.
Kensington
other compatible lock to this slot to secure the tablet PC from theft.
VGA Port — Use this 15-pin port to attach an external monitor to
your PC tablet. With an external monitor attached, use the Fn and
Rotate Screen buttons to toggle between LCD and Simultaneous
LCD/CRT video modes (see the table "Tablet PC Switches and
Buttons" in this chapter).
LAN Port — Use this port to connect the system to a local area
network (LAN).
Power Port — Attach the AC power adapter that comes with your
system to this port. Plug the AC adapter power cable into the AC
adapter and into an AC power source.
The AC power adapter uses a standard 115-Vac or 230-Vac
grounded power source. Keep the system connected to the AC
power adapter and an AC power source whenever possible to keep
the battery pack and internal CMOS battery charged.
1-12 Introducing the NEC Versa LitePad Tablet PC
Left side features
®
Lock Slot — Attach a Kensington security lock or
D – LAN Port
E – Power Port
