Once the register settings have been configured, the OTP panel should be opened using the Navigator pane on SCS, as
shown in Figure 16.
The OTP Programming Panel supports two options The "Prepare for OTP Write" selection is used to prepare the device
for prototype programming The "Prepare for OTP Export" selection is used to create a CSV file for production
programming.
For prototype programming, select "Prepare for OTP Write" A list of all registers is displayed; fields whose values have
changed from default are highlighted.
The preparation for OTP Write is shown in Figure 17. Note that, if the device has already been programmed as a
production device, an error message indicates that prototype programming is no longer possible.
AN0650R1

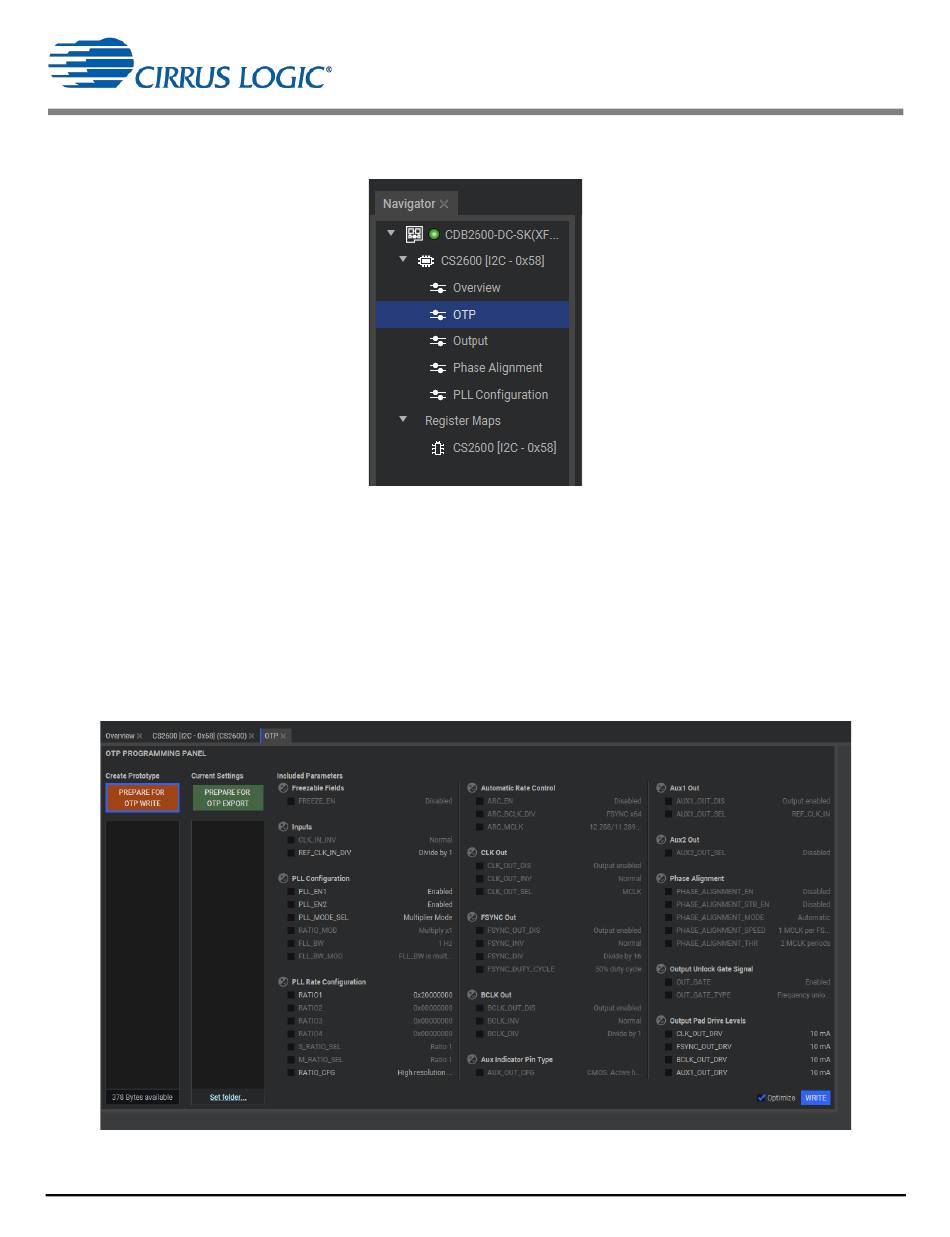

Figure 16 SoundClear Studio – Open OTP Panel
Figure 17 OTP panel – Prepare for OTP Write
