STEP 1
FIG 1

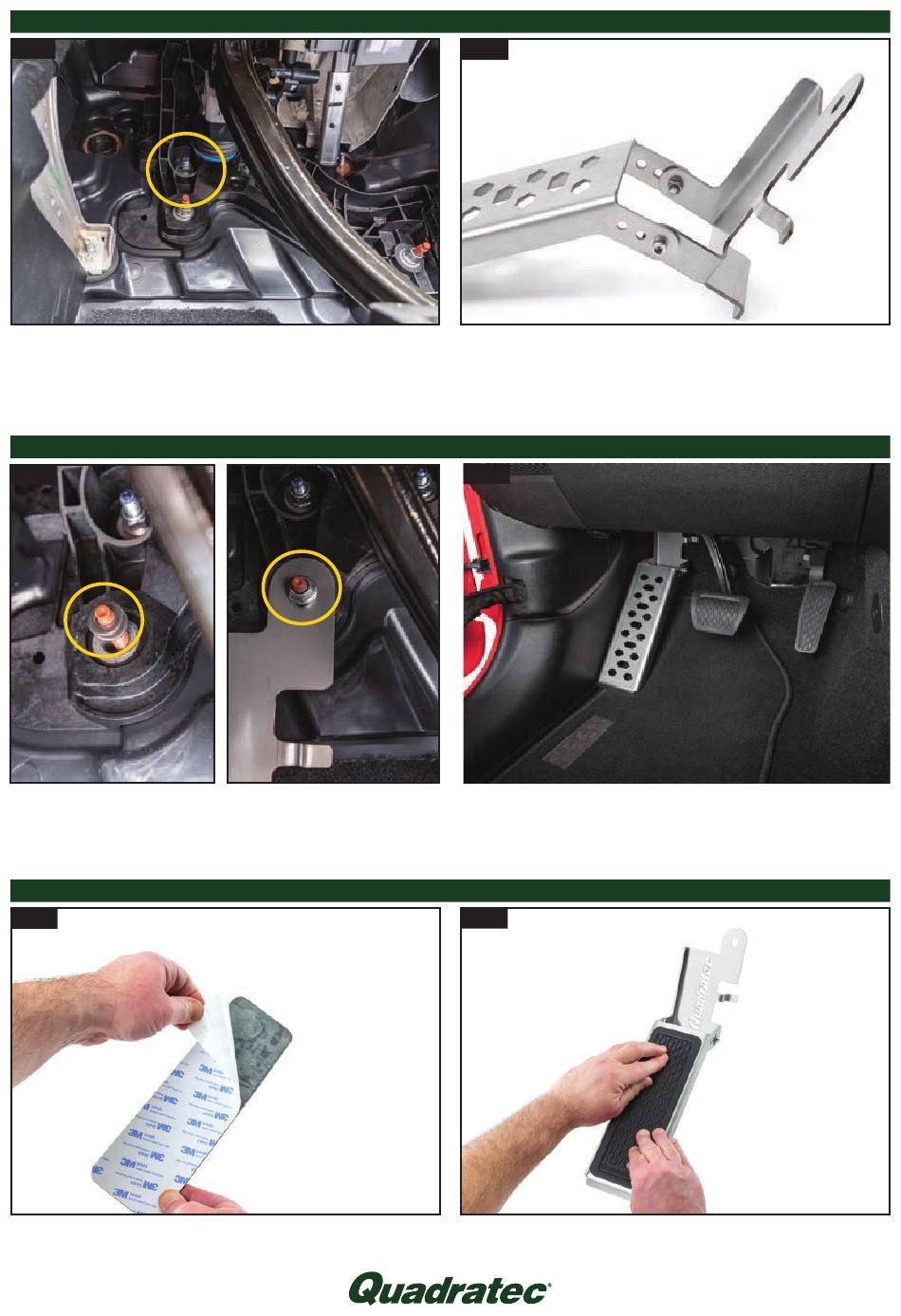

Put on safety glasses. Remove the mounting nut from firewall just to the left of the brake pedal
using a 13mm socket. Save nut. (FIG 1) Next, assemble the pedal to the mounting bracket as
shown. There are 3 possible different positions for height/angle options. With the M6 hardware,
assemble the pedal and bracket to your desired angle/location using a 5mm hex key and 10mm
open end wrench. (FIG 2)
STEP 2
FIG 3
Install the supplied M8 washers over the mounting stud ad shown. (FIG 3) Slide the mounting
bracket over the stud and re-install the original mounting nut. (FIG 4) Tighten snugly. When
installation is complete, be certain to verify that any floor mat or floor liner you are using does NOT
interfere with your throttle or brake pedals in any way.
OPTIONAL DEAD PEDAL RUBBER PAD
FIG 1
Remove the adhesive backing from pad, line up the pad with the pedal. (FIG 1) Firmly press pad
against the pedal (FIG 2) PRESS for thirty seconds. Wait one hour before operating your vehicle.
FIG 2
FIG 4
FIG 2
