Front Bumpers
Installation Manual for '18 - Current Wrangler JL Vehicles
#
12057.0261 and 12057.0620
Narrow Bumper
Narrow Bumper
Aluminum
®
TO REDUCE RISK OF SERIOUS INJURY OR PROPERTY DAMAGE:
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL
INSTRUCTIONS AND PROCEDURE NOTI ES BEFORE
ATTEMPTING TO INSTALL OR USE THIS PRODUCT.
MOUNT WINCH USING ONLY APPROVED MOUNTING PLATE.
BUMPER/WINCH PLATE NOT INTENDED FOR WINCHES IN EX-
CESS OF 10000LBS. LOAD LIMITS FOR YOUR BUMPER/WINCH
MAY BE LESS DEPENDING ON CONDITION OF YOUR VEHICLE
AND ATTACHMENTS. FOLLOW ALL INSTRUCTIONS, LIMITATIONS
& WARNINGS WITH YOUR VEHICLE, THIS PRODUCT, YOUR
WINCH AND SAFE WINCHING PRACTICES SUPPLEMENT.
RISK OF EYE INJURY! SAFETY GLASSES MUST BE WORN AT
ALL TIMES WHILE INSTALLING OR MAINTAINING THIS PRODUCT.
TORQUE AND RECHECK FASTENERS AFTER 250 MILES AND
FREQUENTLY THEREAFTER. INSPECT BUMPER, WINCH AND
MOUNT BEFORE USE. DO NOT USE IF DAMAGED.
CHECK STATE AND LOCAL HIGHWAY SAFETY LAWS REGARDING
PERMITTED BUMPER TYPES AND HEIGHTS.
The Trusted Source
Full Width Bumper
Full Width
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Quadratec 12057.0261
Summary of Contents for Quadratec 12057.0261

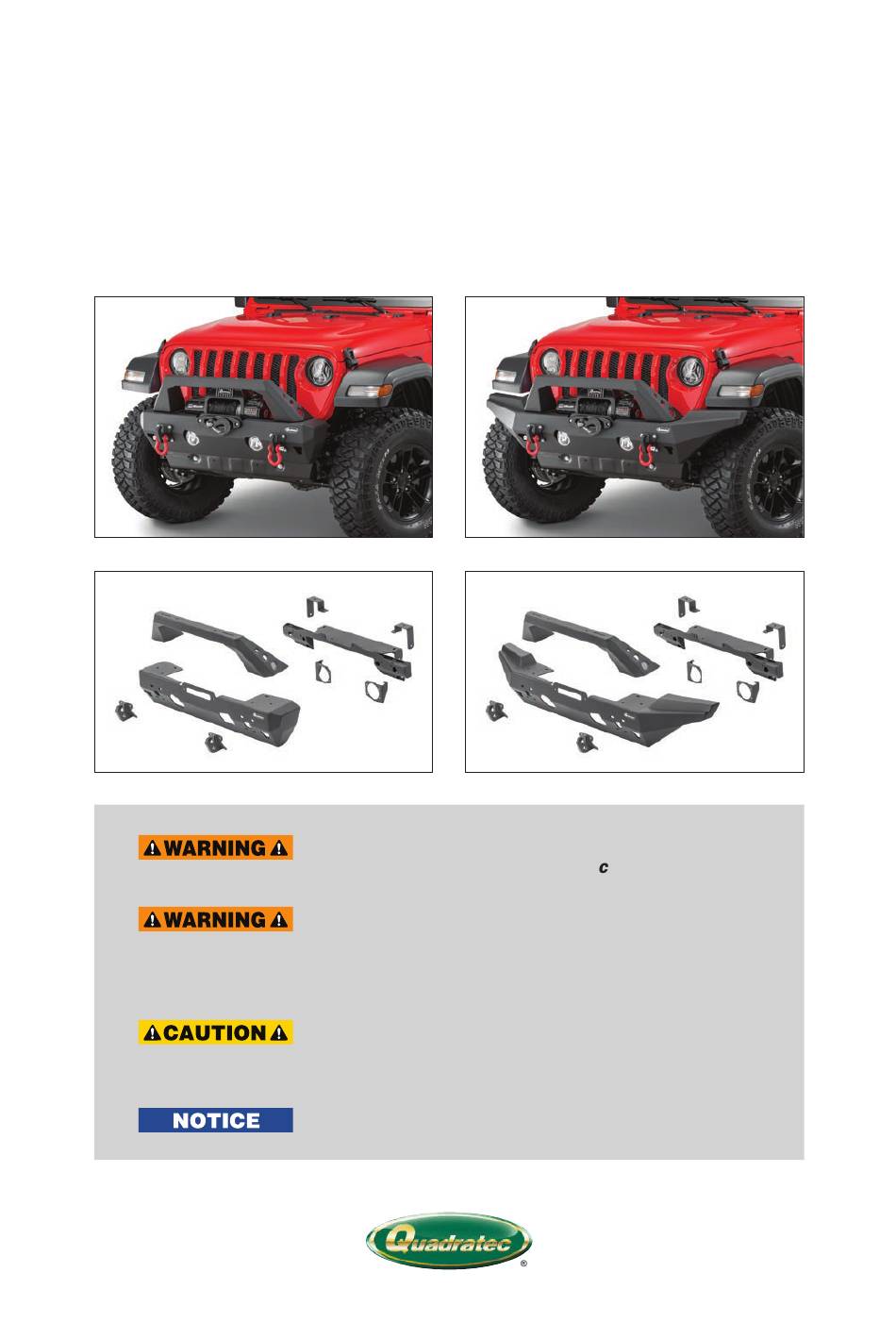

- Page 1 Quadratec Aluminum ® Front Bumpers Installation Manual for ’18 - Current Wrangler JL Vehicles 12057.0261 and 12057.0620 Narrow Bumper Full Width Bumper Narrow Bumper Full Width TO REDUCE RISK OF SERIOUS INJURY OR PROPERTY DAMAGE: READ ALL SAFETY MESSAGES AND UNDERSTAND ALL INSTRUCTIONS AND PROCEDURE NOTI ES BEFORE ATTEMPTING TO INSTALL OR USE THIS PRODUCT.
- Page 2 Careful attention is required to this instruction or operation but does ® generally not relate to personal injury. Damage to your Quadratec product or other property may result if you don’t follow instructions. Before You Begin Installation: Congratulations on your purchase of your bumper looking like new.
-
Page 3: Parts List
Quadratec Aluminum Front Bumper Parts & Tools: Narrow Bumper Full-Width Bumper PARTS LIST: REQUIRED TOOLS: A) Aluminum Front Bumper QTY 1 Safety Glasses w/Overrider B) M12 x 30mm Hex Bolts QTY 8 13, 16, & 18mm deep Sockets C) 12mm Flat Washers... - Page 4 Aluminum JL Front Bumper Installation Prep: FIG1 FIG2 Put on safety glasses. Start by removing Remove the two screws on the under- the factory splash guard. Remove the 8 side using a 5/16” socket. (FIG2) Re- plastic push rivets on the underside of move the splash guard.
- Page 5 Aluminum JL Front Bumper Installation Prep: FIG6 FIG7 Using a 18mm deep socket remove the Lastly disconnect the fog light wiring (8) bumper retaining nuts. There are 2 harness plug so the bumper can be on the inside and outside of each frame removed.
- Page 6 Foglight Harness Removal from Original Bumper (Sport Model) Now you will be able to access the fog FIG11 light wiring harness. Remove harness using a trim removal tool and set aside for re use. (FIG11) Foglight Harness Removal from Original Bumper (Sahara & Rubicon Models) FIG12 FIG13 Locate the (6) plastic fasteners on either...
- Page 7 Foglight Harness Removal from Original Bumper (Sahara & Rubicon Models) FIG15 FIG16 Remove the two fog light wiring harness Locate the six plastic fasteners holding retainers from metal sub structure using the frame guard to bumper and remove a trim removal tool. (FIG15) using a flat blade screwdriver.
- Page 8 JL Winch Mount Installation: FIG2 FIG21 Remove the 4 bumper support brackets Loosely install the winch mount to using a 16mm socket and set hardware frame rails with the supplied M12 Bolt, aside for re-use later. (FIG 20) two washers per bolt and a locking nut using a 19mm wrench &...
- Page 9 Fog Light Installation: FIG25 FIG26 Attach the fog lamps to the brackets as Secure the fog lamp brackets to the shown with the supplied M4 hardware winch plate with the supplied M6 bolts using a 3mm hex key and 7mm wrench. and washers using a 10mm socket.
- Page 10 QRC Front Bumper: Install on Vehicle FIG29 FIG3 Loosely install the over rider bar Lastly, loosely install the final hardware through the bumper and into the sup- for the over rider bar using 4 M10 allen port brackets with two M10 allen head head bolts, 8 washers and 4 nylock nuts bolts and washers using a 6mm hex key.
- Page 11 Final Results: Narrow Width Shown installed with the Quadratec Q-Performance Stealth Winch sold separately) Full Width Shown installed with the Quadratec Q-Performance Stealth Winch sold separately) The Trusted Source...
