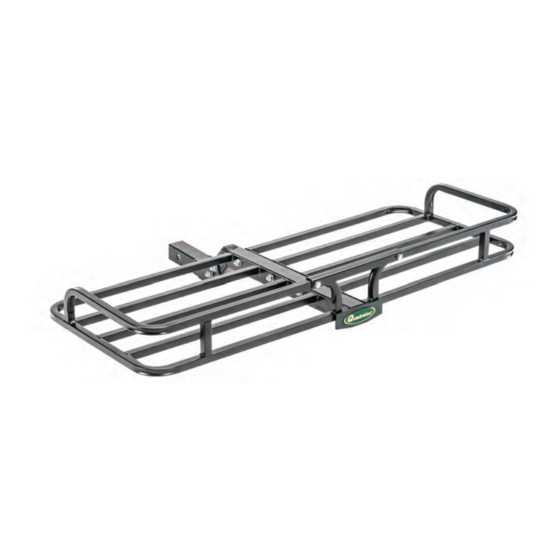

Quadratec 12033.1000 Assembly & Installation Manual

Assembly & Installation Manual: for 2" Receiver Hitches
PARTS LIST:
A) 2" Main Tube
B) Cargo Rack Halves
C) Cross Brace
D) M8 x 35 Bolt
E) M8 Washer
F) M8 Nylock Nut
G) M10 x75 Bolts
H) M10 Flat Washer
I) M10 Nylock Nut
# 12033.1000
QTY 1 J) 2" Receiver Tube
QTY 2 K) Plastic End Cap
QTY 1
Hitch Pin & Cotter Pin - One Each
QTY 2
QTY 4
REQUIRED TOOLS:
QTY 4
Safety Glasses
QTY 6
17mm Wrench & Socket
QTY 12
13mm Wrench or Socket
QTY 6
14mm Wrench or Socket
TO REDUCE RISK OF SERIOUS INJURY OR PROPERTY DAMAGE:
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL INSTRUC-
TIONS AND PROCEDURE NOTICES BEFORE ATTEMPTING TO
INSTALL OR USE THIS PRODUCT. FOLLOW ALL INSTRUCTIONS
AND WARNINGS WITH PRODUCT & VEHICLE OWNERS MANUAL.
REGARDING RECEIVERS: SEE PAGE 2 FOR URGENT RECEIVER
CAPACITY WARNINGS. DO NOT ALLOW RECEIVER MOUNTED
ACCESSORIES (RACKS, ETC.) TO BLOCK VEHICLE MIRRORS
OR LIGHTS. READ AND UNDERSTAND ALL CAPACITY WARNINGS.
RISK OF EYE INJURY! SAFETY GLASSES MUST BE WORN AT
ALL TIMES WHILE INSTALLING OR MAINTAINING THIS PRODUCT.
TORQUE AND RECHECK FASTENERS AFTER 250 MILES AND
FREQUENTLY THEREAFTER. INSPECT BUMPER AND MOUNT
BEFORE USE. DO NOT USE IF DAMAGED.
CHECK STATE AND LOCAL HIGHWAY SAFETY LAWS REGARDING
PERMITTED HITCH MOUNTED ACCESSORIES
The Trusted Source
®
QTY 1
QTY 1
