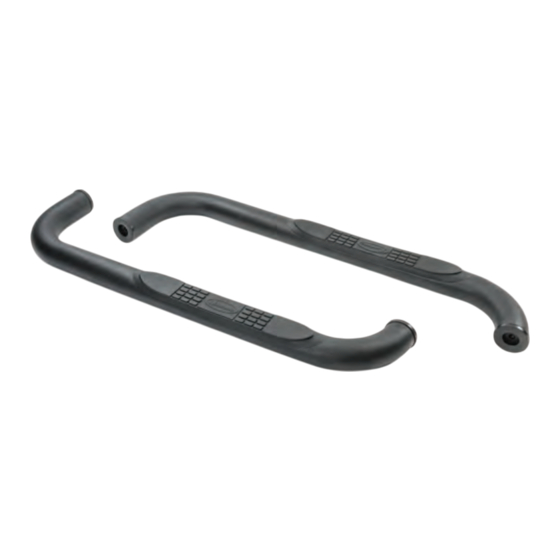

3" Tubular Side Steps
Installation Manual for '87-'06 Jeep Wrangler (YJ & TJ)
A

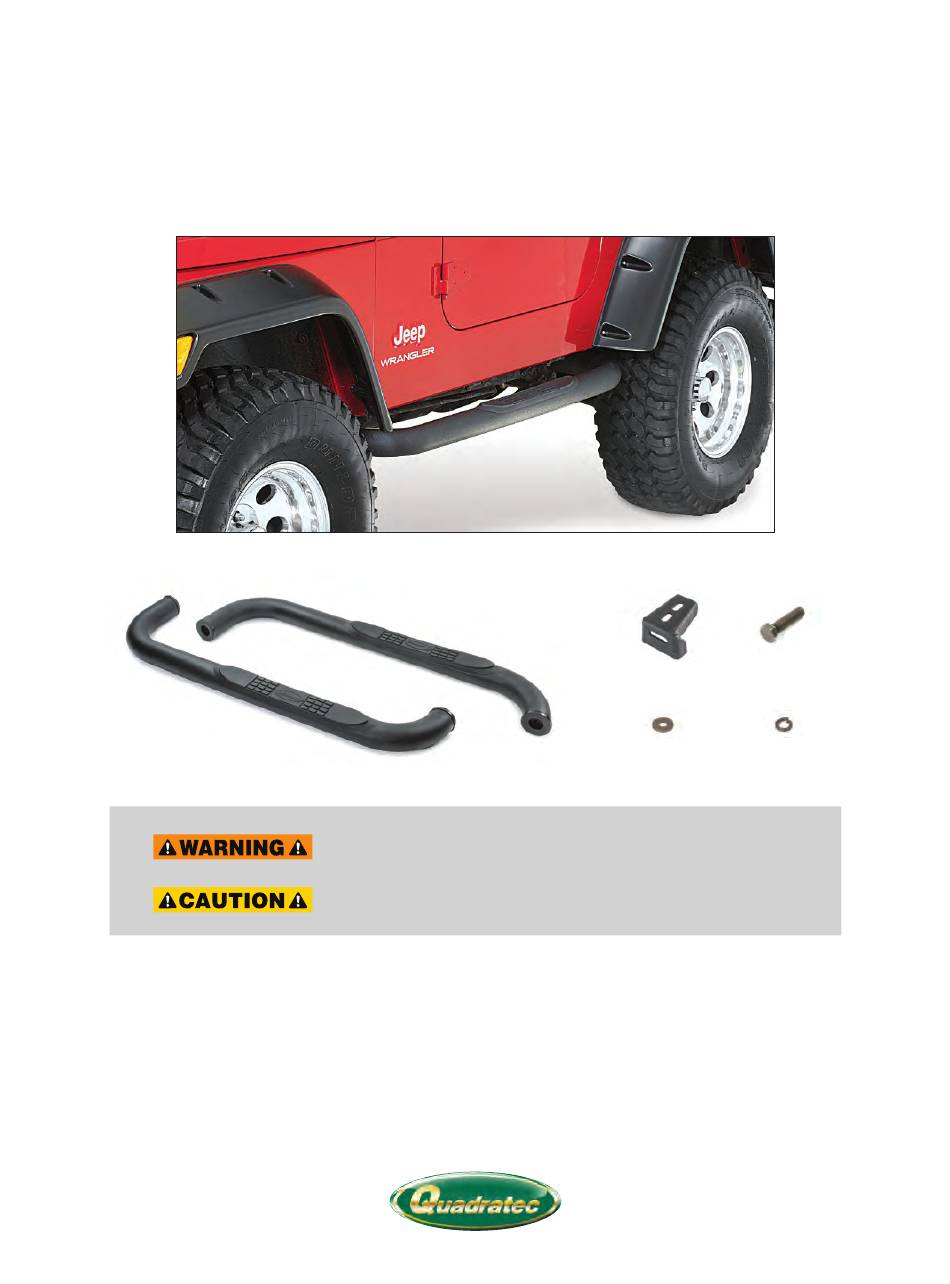

PARTS LIST:
A. DRIVER SIDE TUBE STEP - QTY 1
B. PASSENGER SIDE TUBE STEP - QTY 1
C. MOUNTING BRACKETS - QTY 4
D. 12mm TUBE BOLTS - QTY 4
E. 12mm FLAT WASHERS - QTY 4
F. 12mm LOCK WASHERS - QTY 4
Quadratec
#
12004.30XX (all finishes)
B
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL
INSTRUCTIONS AND PROCEDURE NOTICES BEFORE
ATTEMPTING TO INSTALL OR USE THIS PRODUCT.
RISK OF EYE INJURY! SAFETY GLASSES MUST BE WORN AT ALL
TIMES WHILE INSTALLING OR MAINTAINING THIS PRODUCT.
REQUIRED TOOLS:
SAFETY GLASSES
5/8" SOCKET & DRIVER
3/4" BOX END WRENCH
TORQUE WRENCH
The Trusted Source
®
C
E
®
D
F
