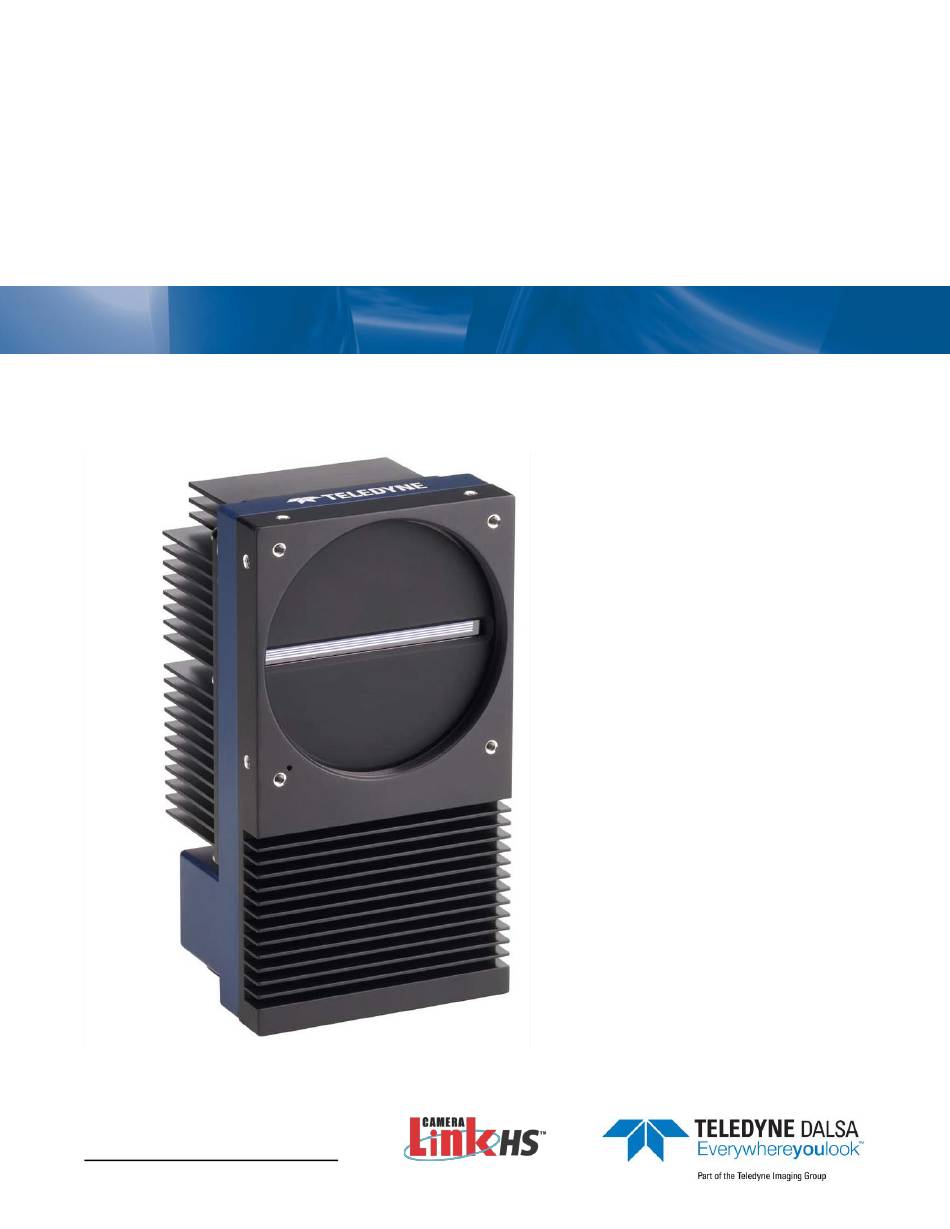

Linea™ HS2 Series
Camera User's Manual
Monochrome CMOS TDI Line Scan
sensors | cameras | frame grabbers | processors | software | vision solutions
03-032-25036-05
www.teledynevisionsolutions.com
Model
H2-HM-16k100H-00-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Linea HS2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dalsa Linea HS2 Series

Summary of Contents for Dalsa Linea HS2 Series

  • Page 1 Linea™ HS2 Series Camera User's Manual Monochrome CMOS TDI Line Scan sensors | cameras | frame grabbers | processors | software | vision solutions Model H2-HM-16k100H-00-B 03-032-25036-05 www.teledynevisionsolutions.com...
  • Page 2 All information provided in this manual is believed to be accurate and reliable. No responsibility is assumed by Teledyne DALSA for its use. Teledyne DALSA reserves the right to make changes to this information without notice. Reproduction of this manual in whole or in part, by any means, is prohibited without prior permission having been obtained from Teledyne DALSA.

  • Page 3: Table Of Contents

    Lens Mount Center and Optical Center ................28 ..........................30 ONNECTORS Camera I/O Connectors ..................... 30 Powering the Camera ......................30 Power and GPIO Connections ..................31 Recommended Cable Providers ..................34 Contents • iii Linea HS2 Series Camera User's Manual...
  • Page 4 Digital IO Control Feature Descriptions ................69 ....................... 72 IELD ATEGORY Flat Field Control Feature Description ................72 ......................74 MAGE ORMAT ATEGORY Image Format Control Feature Description ............... 74 Using Areas of Interest (AOIs) ................... 76 iv • Contents Linea HS2 Series Camera User's Manual...
  • Page 5 Set up Dark and Bright Image Acquisitions with the Histogram Tool ........ 99 Flat Field Correction Calibration ..................101 REVISION HISTORY _________________________________________________________ 106 CONTACT INFORMATION ____________________________________________________ 107 ........................ 107 ALES NFORMATION ....................... 107 ECHNICAL UPPORT Contents • v Linea HS2 Series Camera User's Manual...
  • Page 6 Teledyne Vision Solutions vi • Contents Linea HS2 Series Camera User's Manual...

  • Page 7: Linea™ Hs2 Series Tdi Line Scan Cameras

    (CX4). Teledyne DALSA’s Linea HS2 cameras and compatible frame grabbers combine to offer a complete solution for the next generation of automatic optical inspection systems. This camera excels at detecting small defects at high speeds and over a large field of view in semiconductor wafers, LCD and OLED flat panel displays, high density packaging, DNA sequencing, printed circuit boards, film, and large format web materials.

  • Page 8: Camera Highlights

    Flat panel LCD and OLED display inspection • Web inspection • Printed circuit board inspection • Pathology • DNA sequencing • High throughput and high resolution applications 2 • Linea™ HS2 Series TDI Line Scan Cameras Linea HS2 Series Camera User's Manual...

  • Page 9: Part Numbers

    Sapera LT is a free image acquisition and control software development toolkit (SDK) for Teledyne DALSA’s 1D / 2D / 3D cameras and frame grabbers. Hardware independent in nature, Sapera LT offers a rich development ecosystem for machine vision OEMs and system integrators.

  • Page 10: Supported Industry Standards

    Camera Link. For more information on the Camera Link HS standard see A3 Vision & Imaging. 4 • Linea™ HS2 Series TDI Line Scan Cameras Linea HS2 Series Camera User's Manual...

  • Page 11: Specifications

    < ±2 DN 10-bit Integral non-linearity < 2% 1 - Calibration at 80% saturation, measurements at 50% saturation. 2 - Light sources vary spectrally and spatially: re-calibrate cameras in actual system. Specifications • 5 Linea HS2 Series Camera User's Manual...

  • Page 12: Environmental Specifications

    4 GB Certification & Compliance This camera complies with the following standards: RoHS 2, CE/UKCA/FCC, KC, GenICam SFNC 1.5. See the Declarations of Conformity section at the end of this manual. 6 • Specifications Linea HS2 Series Camera User's Manual...

  • Page 13: Model Specifications

    NEE @ 670 nm 0.3 pJ/cm § Sensor ADC readout is 10 bits. * Random noise below quantization limit cannot be measured accurately; use higher bit depth or higher gain for comparison. Specifications • 7 Linea HS2 Series Camera User's Manual...

  • Page 14: Responsivity And Quantum Efficiency Graphs

    Teledyne Vision Solutions Responsivity and Quantum Efficiency Graphs The following graph shows the spectral responsivity and QE from the main array (128 stages), in 10-bit. Figure 2: Spectral responsivity and QE. 8 • Specifications Linea HS2 Series Camera User's Manual...

  • Page 15: Camera Pixel Arrangement

    Binning (Offset) System Gain (Digital) – – – Output Video Analog Video Analog PRNU Row Gain EOI Offset Vertical Gain + A/D Binning Conversion (Digital) Figure 4: Video data processing chain. Specifications • 9 Linea HS2 Series Camera User's Manual...

  • Page 16: Installation

    Please carefully read section Handling Precautions and Preventing Operational Faults Due to ESD before installation. If you are familiar with Camera Link HS (CLHS) cameras and Teledyne DALSA frame grabbers, follow the Quick Start section to quickly install and test image acquisition with the Linea HS2 and the CamExpert tool provided with Sapera LT.

  • Page 17: Preventing Operational Faults Due To Esd

    Static electricity can disrupt camera operation or damage sensitive electronic components. Before handling the camera, always discharge any static electrical charge from your body by touching a grounded surface. Teledyne DALSA has performed ESD testing on cameras using an 8 kV ESD generator without any indication of operational faults.

  • Page 18: Requirements

    Data transmits at 10.3125 Gbps, which limits the effective distance of copper-based cables. Cables can be purchased from an OEM, such as Alysium and Hewtech. OEM cables are also available for applications where flexing is present. Contact Teledyne DALSA support for recommended cable vendors, cables, and part numbers.

  • Page 19: Power Cable And Power Supply

    Firmware, Software, and Device Driver Downloads Sapera LT SDK Sapera LT SDK is the image acquisition and control software development kit for Teledyne DALSA cameras. It includes the CamExpert application, which provides a graphical user interface to access camera features for configuration and setup.

  • Page 20: Camera Firmware

    1.41 or higher. Software & Firmware Downloads | Teledyne Vision Solutions Camera Firmware A new camera will typically require a firmware update. Contact your Teledyne DALSA representative for the latest firmware for your camera model. Camera Configuration File You will need configuration files (.ccf) to begin operating with your camera.

  • Page 21: Quick Start Using A Teledyne Dalsa Frame Grabber

    Teledyne Vision Solutions Quick Start Using a Teledyne DALSA Frame Grabber The following steps summarize the installation procedure. See Installation Details for further information on each step. NOTE You need administrator rights for software installation and updates. Installation • 15...

  • Page 22: Installation Details

    10. Upload new camera firmware. (Typically, a new camera will require a firmware update, which will be provided. Otherwise, contact your Teledyne DALSA representative). See File Access and Firmware Update. 11. Upload configuration files (.ccf) (File > Open Configuration).

  • Page 23: Installing Sapera Lt

    Sapera development is required, you may install the Sapera LT runtime with CamExpert (SaperaLTCamExpertSetup.exe). Start the Sapera LT installer and follow instructions. On the Acquisition Components page, select the Teledyne DALSA frame grabbers and CameraLink GenCP compatible cameras option. Installation • 17 Linea HS2 Series Camera User's Manual...

  • Page 24: Installing The Frame Grabber Driver

    The camera may be connected to one or two frame grabbers, with or without data forwarding. The different configurations are depicted in section Connection Configurations. For guidelines on connectors, power supply and connector pinout, see section Connectors. Figure 6: Back side connectors and LED. 18 • Installation Linea HS2 Series Camera User's Manual...

  • Page 25: Connection Configurations

    • Connect the CLHS cable from either Port on the camera to the Input port on the frame grabber. Figure 7: CLHS connections for single port, single frame grabber operation. Installation • 19 Linea HS2 Series Camera User's Manual...
  • Page 26 Connect CLHS cable #3 from Port 2 on the camera to the Input port on frame grabber #3. • Connect CLHS cable #4 from the Output port on frame grabber #3 to the Input port on frame grabber #4. 20 • Installation Linea HS2 Series Camera User's Manual...

  • Page 27: Camera Status Led Indicator

    • CamExpert will search for installed Sapera devices. • In the Devices list, the connected frame grabber will be shown. • Select the frame grabber device by clicking on the name. Installation • 21 Linea HS2 Series Camera User's Manual...

  • Page 28: Testing Acquisition

    Testing Acquisition Starting Sapera CamExpert Sapera CamExpert is included as part of the Sapera LT SDK. It is Teledyne DALSA’s camera and frame grabber interfacing tool that allows you to quickly validate hardware setup, change parameter settings, and test image acquisition.
  • Page 29 To verify basic acquisition, the camera can output a test pattern to validate that parameter settings are correctly configured between the camera and frame grabber. • In the Image Format category, select Test Pattern > Grey Diagonal Ramp. • Click Snap to view the diagonal ramp. Installation • 23 Linea HS2 Series Camera User's Manual...

  • Page 30: Using Camexpert With Linea Hs2

    Device Selector pane: View and select from any installed Sapera acquisition device. Once a device is selected, CamExpert will only show acquisition parameters for that device. Optionally, select a camera file included with the Sapera installation or saved previously. 24 • Installation Linea HS2 Series Camera User's Manual...
  • Page 31 Output Message Pane: Displays messages from CamExpert or the device driver. At this point you are ready to start operating the camera, acquire images, set camera functions and save settings. Installation • 25 Linea HS2 Series Camera User's Manual...

  • Page 32: Technical Specifications

    The camera has an internal temperature monitor and will automatically stop imaging if the temperature rises above 80 °C. To prevent this, the temperature of the front plate camera should always be kept below 50 °C. 26 • Technical Specifications Linea HS2 Series Camera User's Manual...

  • Page 33: Mechanical Drawings

    Teledyne Vision Solutions Mechanical Drawings Figure 13: H2-HM-16K100H-00 Mechanical Drawing Technical Specifications • 27 Linea HS2 Series Camera User's Manual...

  • Page 34: Sensor Alignment Specification

    (e.g. TDI HDR Mono uses pixel arrays 2 and 3, while TDI Mono uses pixel array 2 only). The offset between the lens mount center and the optical center in each imaging mode will therefore vary (see Table 10). 28 • Technical Specifications Linea HS2 Series Camera User's Manual...
  • Page 35 1 + 2 660 µm below lens mount center Area Mono 1080 µm below lens mount center Area Extended 1 + 2 + 3 840 µm below lens mount center Technical Specifications • 29 Linea HS2 Series Camera User's Manual...

  • Page 36: Connectors

    Keep leads as short as possible to reduce voltage drop. • Use high quality cables and power supply to minimize noise. NOTE If your power supply does not meet these requirements, then the camera performance specifications are not guaranteed. 30 • Technical Specifications Linea HS2 Series Camera User's Manual...

  • Page 37: Power And Gpio Connections

    The camera can only accept +24 V. Refer to the section Voltage & Temperature Measurement for more details. NOTE Connect all power pins as indicated; the rated current is too high for just one pin. Each pin is rated 2 A. Technical Specifications • 31 Linea HS2 Series Camera User's Manual...
  • Page 38 Return path for GPIO signal only. Not a power ground. Signal Ground Signal Ground Warning Do not connect to pins 1 or 9, or to the camera chassis. Figure 19: Depiction of power and IO connections. 32 • Technical Specifications Linea HS2 Series Camera User's Manual...
  • Page 39 To reduce the chance of stress and vibration on the cables, we recommend that you use cable clamps, placed close to the camera, when setting up your imaging system. Stress or vibration of the heavy CLHS AOC cables may damage the camera’s connectors. Technical Specifications • 33 Linea HS2 Series Camera User's Manual...

  • Page 40: Recommended Cable Providers

    Teledyne Vision Solutions Mating GPIO Cable Assembly An optional GPIO breakout cable (12-pin Female Hirose to 13-Pos Euro Block) is available for purchase from Teledyne DALSA under accessory number #CR-GENC-IOP00 to order. Figure 20: GPIO cable accessory #CR-GENC-IOP00 Recommended Cable Providers The following is a recommended OEM supplier of power cables.

  • Page 41: Overview Of Tdi Technology

    See the TDI Primer - High Sensitivity Line Scanning on Teledyne Vision Solutions website for an illustration of how TDI works. Overview of TDI Technology • 35 Linea HS2 Series Camera User's Manual...

  • Page 42: Arrays And Stages

    Figure 23: A 16K x 160 (128+32), dual array TDI sensor. The main array includes 128 stages, the secondary array has 32 stages. The arrays are separated by several rows, typically a multiple of the pixel size. 36 • Overview of TDI Technology Linea HS2 Series Camera User's Manual...

  • Page 43: Camera Operation

    CamExpert can be used to configure the frame grabber for routing the encoder signal from the frame grabber input to the trigger input of the camera via the Camera Link HS data cable. Camera Operation • 37 Linea HS2 Series Camera User's Manual...

  • Page 44: Measured Line Rate

    Table 16. Direction change time with respect to imaging mode. Change time is per array. Imaging Mode # Arrays Used Direction Change Time per array (µs) TDI Mono, TDI Low-Mono, Area Mono TDI HDR, TDI HFW Mono Area Extended 38 • Camera Operation Linea HS2 Series Camera User's Manual...
  • Page 45 Figure 25: Object movement and scan direction. In Forward direction, the object crosses the sensor line from top to bottom. In Reverse direction, the object crosses the sensor line from bottom to top. Camera Operation • 39 Linea HS2 Series Camera User's Manual...

  • Page 46: Line Spatial Correction

    Spatial correction is not necessary when using the camera with one array only. For single array TDI operation, this functionality is disabled. Teledyne DALSA Xtium2/Xtium3 CLHS frame grabbers automatically perform spatial correction for Linea HS2 cameras. 40 • Camera Operation...
  • Page 47 In a dual array output with different number of stages (e.g., 128 x 32), the distance between the readout lines would differ according to scan direction. Camera Operation • 41 Linea HS2 Series Camera User's Manual...

  • Page 48: Alignment Markers

    When enabled, alignment markers are displayed as a grid overlay in the image output. Spacing, offset and color of markers may be adjusted to facilitate alignment. 42 • Camera Operation Linea HS2 Series Camera User's Manual...
  • Page 49 Teledyne Vision Solutions Figure 29: Alignment Markers Camera Operation • 43 Linea HS2 Series Camera User's Manual...

  • Page 50: Achieving Maximum Line Rate

    PC. Minimum Line Rate The minimum practical line rate is 20 kHz. Devices can be operated under the minimum line rate, but specifications will no longer be valid. 44 • Camera Operation Linea HS2 Series Camera User's Manual...

  • Page 51: Imaging Modes

    Features from the Image Format Category such as binning and AOIs are unavailable in area mode. There is no cosmetic image-quality specification for area modes. Area mode images may appear noisy, contain dark lines, or other image artifacts. Camera Operation • 45 Linea HS2 Series Camera User's Manual...

  • Page 52: Area Mono

    When the Trigger Mode feature is set to Internal, the line rate is controlled with the AcquisitionLineRate or AcquisitionFrameRate feature. The chosen TDI mode, number of areas of interest (AOIs), bit depth (8-bit vs. 10- 46 • Camera Operation Linea HS2 Series Camera User's Manual...
  • Page 53 143130 1000000 1000000 8-bit (4 x 4096 px) 500000 500000 333333 824176 824176 10-bit (4 x 4096 px) 806452 806452 401070 401070 267857 * With Vertical sensor binning x2 enabled. Camera Operation • 47 Linea HS2 Series Camera User's Manual...

  • Page 54: Establishing The Optimal Response

    Using the GPIO controls the camera can be set up to strobe a light source, effectively giving exposure control. Figure 31 shows an example of an output signal used as a strobe signal. 48 • Camera Operation Linea HS2 Series Camera User's Manual...
  • Page 55 In addition, an Exposure Active signal is generated and can be supplied to any of the GPIO outputs. This allows triggering or timing external light sources. The following diagram illustrates the logical control signal flow in the Linea HS2 series camera family. The outputLineSource, outputLinePulseDelay, outputLinePulseDuration and LineInverter allow the user to control a strobe light source in order to coordinate with the sensor exposure.

  • Page 56: Flat Field Correction (Ffc) And Photo-Response Non-Uniformity (Prnu)

    Flat Field Correction is applied. • FFCOffset is the offset coefficient value to subtract from the sensorPixelValue. • FFCGain is the gain coefficient value that is multiplied with the sensorPixelValue. 50 • Camera Operation Linea HS2 Series Camera User's Manual...

  • Page 57: Saving & Loading A Prnu Set Only

    30 kHz, it is recommended to recalibrate the FFC coefficients; the difference in FPN is minimized if the camera is used at higher line rates but may become noticeable at reduced speed. Camera Operation • 51 Linea HS2 Series Camera User's Manual...

  • Page 58: Adjusting Responsivity And Contrast Enhancement With Gain And Black Level

    For monochrome cameras in TDI HDR Mono mode, row gain can be adjusted independently for output rows from 1 to ~4x. System Gain can be adjusted from 1 to 10x. 52 • Camera Operation Linea HS2 Series Camera User's Manual...

  • Page 59: Binning

    The camera line rate remains almost the same, but the pixel height doubles: the object scan speed must also double to bring the image into focus. Camera Operation • 53 Linea HS2 Series Camera User's Manual...

  • Page 60: Setting Up Binning

    3. In the Image Format category, select values for features Binning Horizontal, Binning Vertical, Averaging Horizontal, Averaging Vertical, Binning Sensor Vertical. 4. Start acquisition, using Acquisition and Transfer Control > Acquisition Start > Press. 54 • Camera Operation Linea HS2 Series Camera User's Manual...

  • Page 61: Areas Of Interest (Aois)

    The rules are dictated by how image data is organized for transmission over the available CLHS data lanes. The camera/XML will enforce these rules, truncating entered values where necessary. NOTE You must stop acquisition to modify AOI parameters. See Setting up Areas of Interest below. Camera Operation • 55 Linea HS2 Series Camera User's Manual...

  • Page 62: Setting Up Areas Of Interest

    5. Repeat for each AOI in turn. 6. Start acquisition, using Acquisition and Transfer Control > Acquisition Start > Press. 56 • Camera Operation Linea HS2 Series Camera User's Manual...

  • Page 63: Enhancement Of Interest (Eoi)

    EOI Width c. EOI Offset d. EOI Gain 4. Set EOI > On. NOTE EOI parameter settings are not stored in the camera and are erased at camera reset. Camera Operation • 57 Linea HS2 Series Camera User's Manual...

  • Page 64: Customized Linearity Response (Lut)

    To upload a LUT, use File Access Control Category > Upload / Download File > Settings and select Look Up Table to upload a file. LUTs are saved with User Sets. A spreadsheet is available from Teledyne DALSA Technical Support, which allows LUTs to be viewed, edited and saved.
  • Page 65 4. In the Lookup Table dialog, under the Value column, select the output LUT by scrolling through the different options. Configure any required parameters (for example, Gamma correction requires a Correction factor). Camera Operation • 59 Linea HS2 Series Camera User's Manual...
  • Page 66 In the Parameters pane, a frame grabber feature must be selected, not a camera feature. • The Lookup table must be enabled to be created but should be disabled to use the camera LUT. 60 • Camera Operation Linea HS2 Series Camera User's Manual...

  • Page 67: Changing Output Pixel Format

    2. In Image Format category, set Pixel Format to Mono 10. 3. In Basic Timing category of the frame grabber, set Pixel Depth to 10. 4. In Acquisition and Transfer Control category, click Press next to Acquisition Start. Camera Operation • 61 Linea HS2 Series Camera User's Manual...

  • Page 68: Saving & Restoring Camera Setup Configurations

    To reset the camera to factory configuration • Select Factory Setting and click Load. To save the current camera configuration • Select one of the user sets and click Save. 62 • Camera Operation Linea HS2 Series Camera User's Manual...
  • Page 69 Changes made after a configuration is loaded will be lost if the camera resets, is powered down or loses power, unless the current configuration is saved again. By default, all user sets contain the factory settings. Camera Operation • 63 Linea HS2 Series Camera User's Manual...

  • Page 70: Operational Reference

    The following description tables list and describe the device features along with their visibility attribute (Beginner, Expert, Guru). The View column also indicates whether the parameter is a member of the DALSA Features Naming Convention (using the tag DFNC), versus the GenICam Standard Features Naming Convention (SFNC tag not shown).

  • Page 71: Camera Information Category

    BIST error. Green Green Operational. Waiting for EXSYNC Fast_Green 4 Hz Green. Thermal Shutdown Medium_Red 2 Hz Red. Looking for link Slow_Green 1 Hz Green. Busy Medium_Orange 2 Hz Orange. Operational Reference • 65 Linea HS2 Series Camera User's Manual...
  • Page 72 Selector to the camera and makes it active. Saves the user set specified by the User Set Save User Set UserSetSave Beginner Selector to the camera. The user sets are located on the camera in non-volatile memory. 66 • Operational Reference Linea HS2 Series Camera User's Manual...

  • Page 73: Camera Control Category

    Refresh Measured Line Rate refreshMeasuredLineRate Refresh the Measured Line Rate. (WO) Beginner DFNC Acquisition Frame Rate AcquisitionFrameRate Specifies the camera frame rate, in Hz. Beginner (Valid when camera is running in Area mode.) Operational Reference • 67 Linea HS2 Series Camera User's Manual...
  • Page 74 Amplification factor applied to the video signal. Beginner Line Spatial Correction sensorLineSpatialCorrection Sets the number of lines of delay between output Beginner planes from the sensor for spatial correction. Stop DFNC acquisition to change. 68 • Operational Reference Linea HS2 Series Camera User's Manual...

  • Page 75: Digital Io Control Category

    Edge of the input signal that will trigger the camera. Beginner Rising Edge RisingEdge Rising edge trigger activation. Falling Edge FallingEdge Falling edge trigger activation. Any Edge AnyEdge Any edge trigger activation Operational Reference • 69 Linea HS2 Series Camera User's Manual...
  • Page 76 Line 3 GPIO3 Selects GPIO 3 (output 1). Line 4 GPIO4 Selects GPIO 4 (output 2). Line 5 GPIO5 Selects GPIO5 (output 3). Line 6 GPIO6 Selects GPIO6 (output 4). 70 • Operational Reference Linea HS2 Series Camera User's Manual...
  • Page 77 Refresh Line Status refreshLineStatus Updates the LineStatus. Beginner DFNC Line Status LineStatus Returns the current state of the selected input line. Expert Line is low. High High Line is high. Operational Reference • 71 Linea HS2 Series Camera User's Manual...

  • Page 78: Flat Field Category

    Will push ROI Offset X if necessary. DFNC Calibrate FPN flatfieldCalibrationFPN Captures the Fixed Pattern Noise (FPN) for each pixel. Beginner When flat field correction mode is On, the FPN is DFNC subtracted from the image. 72 • Operational Reference Linea HS2 Series Camera User's Manual...
  • Page 79 Sets the black level offset to apply to the selected EOI. Guru Possible values range from -127 to 127. DFNC EOI Gain enhancedImageGain Sets the gain to apply to the selected EOI. Guru DFNC Operational Reference • 73 Linea HS2 Series Camera User's Manual...

  • Page 80: Image Format Category

    Guru image. (RO) DFNC Mono None Monochrome. Sensor Width WidthMax Sensor width in pixels. (RO) Beginner Horizontal Offset OffsetX Output image horizontal offset from the origin Beginner (always zero). (RO) 74 • Operational Reference Linea HS2 Series Camera User's Manual...
  • Page 81 AOI Selector multipleROISelector Specifies which AOI (Area of Interest) to configure. DFNC Horizontal offset in pixels from the left to the Beginner AOI Offset multipleROIOffsetX current AOI (Area of Interest). DFNC Operational Reference • 75 Linea HS2 Series Camera User's Manual...

  • Page 82: Using Areas Of Interest (Aois)

    AOI for each port. The camera assembles the individual AOI’s into one contiguous image line with a width equal to the sum of the individual AOIs. For details see Areas of Interest (AOIs). 76 • Operational Reference Linea HS2 Series Camera User's Manual...

  • Page 83: Transport Layer Control Category

    Sapera Diagnostics tool. DFNC Refresh GenCP Status refreshGenCPStatus Refresh GenCP Status. (WO) Beginner DFNC Last GenCP Status genCPStatus Last bad GenCP status. Check this if previous Beginner command failed. DFNC Operational Reference • 77 Linea HS2 Series Camera User's Manual...
  • Page 84 Guru DFNC Refresh CLHS Receive Error Refresh CLHS Receive Corrupted/Corrected Guru clhsErrorCountRefresh Counts Counts. DFNC Reset CLHS Receive Error clhsErrorCountReset Reset CLHS Receive Corrupted/Corrected Counts Guru Counts to zero. DFNC 78 • Operational Reference Linea HS2 Series Camera User's Manual...

  • Page 85: Acquisition And Transfer Control Category

    Acquisition Status AcquisitionStatus Indicates whether the camera has been commanded to Beginner send image data. Acquiring Acquiring Acquiring and sending image data. Not Acquiring NotAcquiring Not acquiring or sending image data. Operational Reference • 79 Linea HS2 Series Camera User's Manual...

  • Page 86: File Access Control Category

    PRNU coefficients that are currently being used by the camera (not necessarily saved). Camera Data CameraData This is a text file, please ensure that it has a ".txt" file name extension. 80 • Operational Reference Linea HS2 Series Camera User's Manual...

  • Page 87: File Access And Firmware Update

    File Access and Firmware Update To update the firmware 1. Select the File Access Control category, and next to Upload/Download File, click Setting to open the File Access Control dialog box. Operational Reference • 81 Linea HS2 Series Camera User's Manual...
  • Page 88 To upload or download files other than firmware For other types of files to upload or download, select other from the Type and File Selector lists, click Browse, then Upload (to Camera) or Download (from Camera). 82 • Operational Reference Linea HS2 Series Camera User's Manual...

  • Page 89: Clhs File Transfer Protocol

    Abort and jump to Close if this is less the file size on the host • From FileAccessBuffer.Length you will know that maximum number of bytes that can be written through FileAccessBuffer is 988. Operational Reference • 83 Linea HS2 Series Camera User's Manual...

  • Page 90: Download A List Of Camera Parameters

    In the Type list select Miscellaneous. • In the File Selector list select CameraData. • Click Download (from Camera). • Save the text file and send the file to Teledyne DALSA customer support. 84 • Operational Reference Linea HS2 Series Camera User's Manual...

  • Page 91: Additional Reference Information

    The following simplified illustration describes this but omits any discussion of the optics, physics, and math behind the refraction of light through glass filter media. Additional Reference Information • 85 Linea HS2 Series Camera User's Manual...

  • Page 92: Lens Modeling

    (desired object resolution size). By similar triangles, the magnification is alternatively given by: Where f’ is the focal length and OD is the target object distance. �� = ��′/���� 86 • Additional Reference Information Linea HS2 Series Camera User's Manual...
  • Page 93 45 mm. For each pixel in the image sensor to correspond to 100 µm in the object space, using the preceding equation, the object distance must be 450 mm (0.450 m). (10 ����)/(100 ����) = (45 ����)/���� ���� = 450 ���� (0.450 ��) Additional Reference Information • 87 Linea HS2 Series Camera User's Manual...

  • Page 94: Sensor Handling Instructions

    • When compressed air cannot clean the sensor, Teledyne DALSA recommends using lint-free ESD-safe cloth wipers or swabs that do not contain particles that can scratch the window. Do not use regular cotton swabs, since these can introduce static charge to the window surface.

  • Page 95: Cleaning The Camera Housing Surface

    Do not use volatile solvents such as benzene and thinners, as they can damage the surface finish. Additional Reference Information • 89 Linea HS2 Series Camera User's Manual...

  • Page 96: Troubleshooting Guide

    The camera data file includes the operational configuration and status of the camera. This text file can be downloaded from the camera and forwarded to Teledyne DALSA Technical Customer support team to aid in diagnosis of any reported issues. See Saving & Restoring Camera Setup Configurations for details on downloading the Camera Data file.

  • Page 97: Test Patterns - What Can They Indicate

    Power-On Status indicates Good, otherwise a BIST status code is reported (see list below). None of these should occur in a properly functioning camera except OVER_TEMPERATURE, which may occur if there is insufficient air circulation or heat sinking. Troubleshooting Guide • 91 Linea HS2 Series Camera User's Manual...
  • Page 98 NO_FACT_PRNU 0x00400000 0000 0000 0100 0000 0000 0000 0000 0000 NO_FATFS 0x00800000 0000 0000 1000 0000 0000 0000 0000 0000 IN_FACTORY_PARTITION 0x01000000 0000 0001 0000 0000 0000 0000 0000 0000 92 • Troubleshooting Guide Linea HS2 Series Camera User's Manual...

  • Page 99: Resolving Camera Issues

    From the Frame Grabber > External Trigger, set External Trigger to Enable. If LVAL status turns red, check the following: • Is the transport system moving such that encoder pulses are being generated? Troubleshooting Guide • 93 Linea HS2 Series Camera User's Manual...

  • Page 100: Image Quality Issues

    See File Access and Firmware Update for details on downloading and uploading camera files using CamExpert. NOTE Dust accumulation on the lens will not cause vertical lines. However, a heavy accumulation of dust on the lens will eventually degrade the camera’s responsivity and focus quality. 94 • Troubleshooting Guide Linea HS2 Series Camera User's Manual...
  • Page 101 The loss EXSYNC due to over-speed may also cause horizontal artifacts. Over-speeding may be due to inertia and / or backlash in the mechanical drive mechanism, causing variations around the target speed. Troubleshooting Guide • 95 Linea HS2 Series Camera User's Manual...

  • Page 102: Power Supply Issues

    The camera also benefits from conducting heat away from the body via the face plate into the lens extension tubes and camera mount. It is therefore important not to restrict convection airflow around the camera body, 96 • Troubleshooting Guide Linea HS2 Series Camera User's Manual...
  • Page 103 The only means to recover from a thermal shutdown is to turn the camera’s power off. Once the camera has cooled down, the camera data can be restored by reapplying power to the camera. Troubleshooting Guide • 97 Linea HS2 Series Camera User's Manual...

  • Page 104: Declarations Of Conformity

    This equipment is intended to be a component of a larger industrial system. CE and UKCA Declaration of Conformity Teledyne DALSA declares that this product complies with applicable standards and regulations. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

  • Page 105: Appendix A - Performing Flat Field Calibration Using Camexpert

    Selected view list to select Histogram or Line Profile. Figure 50: CamExpert – Grab & Statistics Buttons Figure 51: CamExpert Statistics Dialog – Selected View Appendix A – Performing Flat Field Calibration Using CamExpert • 99 Linea HS2 Series Camera User's Manual...
  • Page 106 When choosing the target option, it is preferable to set a target value that is above and not too far from the uncorrected peak. 100 • Appendix A – Performing Flat Field Calibration Using CamExpert Linea HS2 Series Camera User's Manual...

  • Page 107: Flat Field Correction Calibration

    Before you begin • Set black level value = 0. • Set system gain and digital gain values = 1. • Clear FFC coefficients. Appendix A – Performing Flat Field Calibration Using CamExpert • 101 Linea HS2 Series Camera User's Manual...
  • Page 108 Bare Image Evaluation Before you perform the FFC, Teledyne DALSA recommends that you to try to improve the bare image quality first: a good bare image will improve the quality of the FFC. A bare image is obtained using your bright target with no gain applied.
  • Page 109 Black Level offset (Camera Control category) value to ensure that all pixel output is above zero. Figure 56: CamExpert Statistics Dialog – FPN Pixel Output 5. Click Press next to Calibrate FPN. You may proceed with PRNU calibration. Appendix A – Performing Flat Field Calibration Using CamExpert • 103 Linea HS2 Series Camera User's Manual...
  • Page 110 Saving a calibration in this way only saves the PRNU coefficients. To save FPN coefficients as well, you need to save a User Set in the Power-up Configuration dialog (see below). 104 • Appendix A – Performing Flat Field Calibration Using CamExpert Linea HS2 Series Camera User's Manual...
  • Page 111 Figure 58: CamExpert – Power-up Configuration Dialog. Appendix A – Performing Flat Field Calibration Using CamExpert • 105 Linea HS2 Series Camera User's Manual...

  • Page 112: Revision History

    Imaging Mode and Line Rate. Various updates. Changed CLHS bandwidth from 10.3Gbps to 10.3125 Gbps. Updated connection configuration diagrams. Added AOC cable direction to troubleshooting section. Added mention ‘Available 2025’ to Xtium3 part number. 106 • Revision History Linea HS2 Series Camera User's Manual...

  • Page 113: Contact Information

    Technical support form via our web page: Support requests for imaging product installations, Support requests for imaging applications Contact Us | Teledyne Vision Solutions Camera support information Product literature and driver updates Contact Information • 107 Linea HS2 Series Camera User's Manual...

This manual is also suitable for:

Linea h2-hm-16k100h-00-b

Table of Contents
