Product:
Vehicle:
Part No.
081ATRBA18A
a)
Do not attach Rear Bar to vehicle using anchorages not intended for this purpose, other than those specified by the Rear Bar
manufacturer in this instruction.
b)
Do not use this product for any vehicle make or model other than those specified by the Rear Bar manufacturer (as above).
c)
Do not modify the structure of the Rear Bar in any way.
For product warranty please refer to our website www.tjm.com.au
F-38296.docx
FITTING INSTRUCTIONS
Page 1 of 17
Rear bar
GWM Tank 300
04/09/2024
Advertisement
Table of Contents
Related Manuals for TJM 081ATRBA18A
Summary of Contents for TJM 081ATRBA18A
- Page 1 Do not use this product for any vehicle make or model other than those specified by the Rear Bar manufacturer (as above). Do not modify the structure of the Rear Bar in any way. For product warranty please refer to our website www.tjm.com.au F-38296.docx...
-

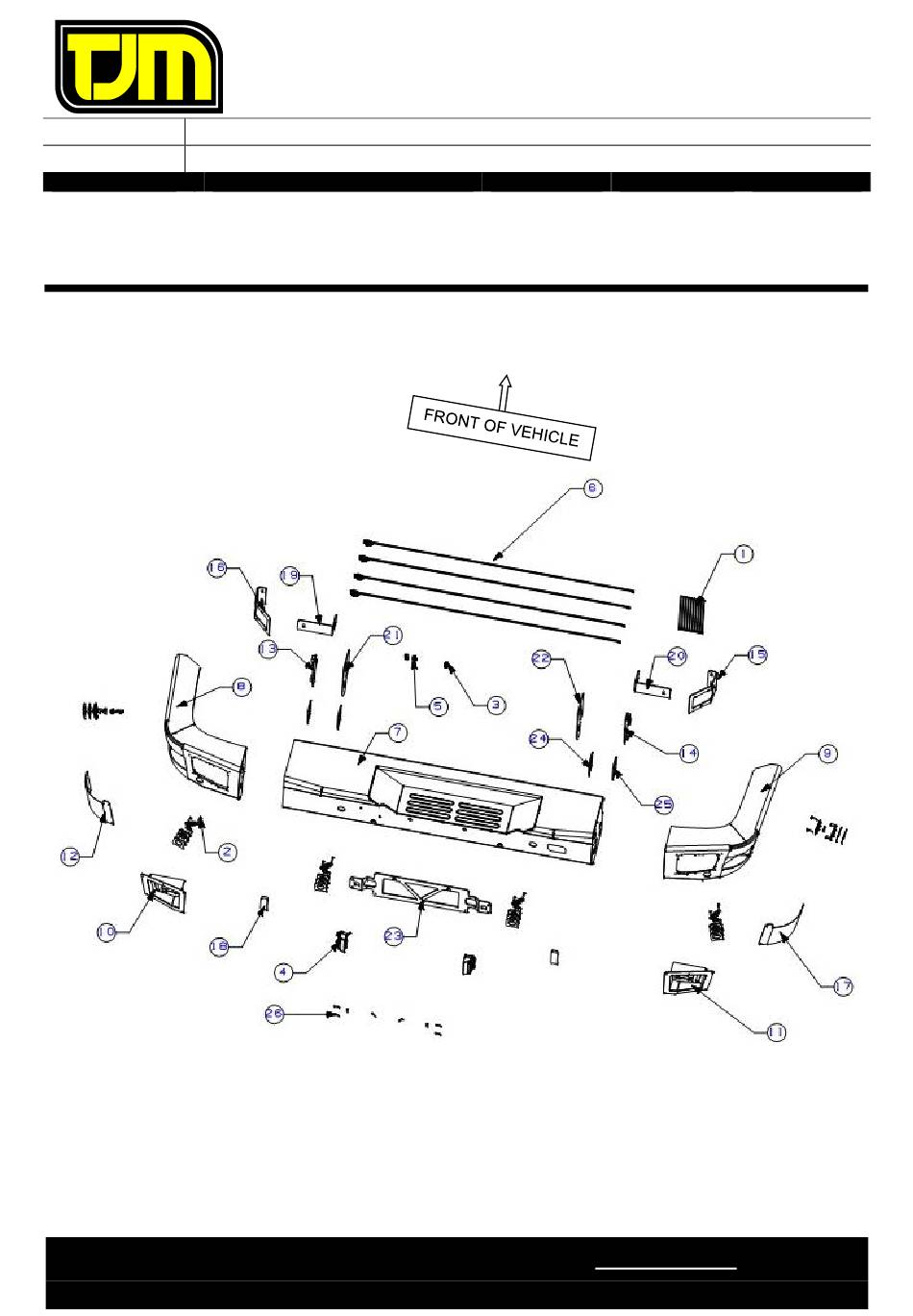

Page 2: Parts List
N/A M12x1.25x40mm Hex bolt RADAR COVER LH N/A M12xØ32mmx3.0mm Flat Washer RADAR COVER RH N/A M12 Spring Washer REFLECTOR FOAM MAT LH FOAM MAT RH DOUBLE SIDE TAPE For product warranty please refer to our website www.tjm.com.au F-38296.docx Page 2 of 17 04/09/2024... -
Page 3: Tools Required
Ensure vehicle is properly Must be worn when using cutting, drilling, or mechanical lifting aid supported before commencing power tools. grinding. required for FPS fitment. work. For product warranty please refer to our website www.tjm.com.au F-38296.docx Page 3 of 17 04/09/2024... - Page 4 • Left hand & right-hand components are determined as seated in the vehicle. • The fitment of TJM products does not nullify the OE manufacturer's operating guidelines and/or warnings. Ensure you are familiar with and adhere to the usage instructions specified by the manufacturer in the owner's manual or other official documentation.
- Page 5 2. Remove and discard the Scrivets (1) securing LHS SHOWN the inner LHS Rear Mud guard. 3. Remove and discard the Scrivets (4) securing LHS SHOWN the plastic LHS rear under guard. For product warranty please refer to our website www.tjm.com.au F-38296.docx Page 5 of 17 04/09/2024...
- Page 6 STEP 8 section) from the vehicle. Repeat Step 4~9 RHS 10. Remove and discard the Bolts (3) securing the OE Rear Bumper to the chassis. For product warranty please refer to our website www.tjm.com.au F-38296.docx Page 6 of 17 04/09/2024...
- Page 7 14. Remove and discard Bolts (3) securing the brackets to Chassis. 15. Remove the brackets from the chassis 16. Remove and discard bolt (2) securing the rear bumper brackets (2). For product warranty please refer to our website www.tjm.com.au F-38296.docx Page 7 of 17 04/09/2024...
- Page 8 20. Remove and discard screws (2) securing Fob Antenna unit to the rear bar. 21. Disconnect the Number plate light harness. STEP 20 STEP 21 For product warranty please refer to our website www.tjm.com.au F-38296.docx Page 8 of 17 04/09/2024...
- Page 9 8gx25mm pan head screws. 27. Apply the supplied 0.64mm (thin) double sided sticker to the front face of the parking sensor housing. For product warranty please refer to our website www.tjm.com.au F-38296.docx Page 9 of 17 04/09/2024...
- Page 10 31. Securing the “RADAR COVER LH” (Item 12) to the “WING LH” (Item 8) using M6x13mm Coach Head BK Bolt (2) & M6 Flange Nut (2). For product warranty please refer to our website www.tjm.com.au F-38296.docx Page 10 of 17...
- Page 11 8&9) to “CENTRE” (Item 7) with “NUT PLATE LH & RH” (Item 13&14) using M12x40mm Hex Bolt (6), M12 Spring Washer (6) & M12xØ32x3mm Flat Washer (6). For product warranty please refer to our website www.tjm.com.au F-38296.docx Page 11 of 17 04/09/2024...
- Page 12 “WING LH” (Item 8) using M8x25mm Hex Head Bolt (2), M8xØ22x2mm Flat Washer (4), M8 Spring Washer (2) & M8 Hex Nut (2). Repeat on RHS. For product warranty please refer to our website www.tjm.com.au F-38296.docx Page 12 of 17 04/09/2024...
- Page 13 Main harness open cable plug. 47. Secure the harness using cable ties, ensuring the harnesses are routed and secured away from any sharp, hot, or moving parts. For product warranty please refer to our website www.tjm.com.au F-38296.docx Page 13 of 17 04/09/2024...
- Page 14 19) to Chassis rail using OE bolts (1) from Step 4. 53. Tighten all the fasteners to the relevant torque settings listed on Page 4. Repeat on RHS. For product warranty please refer to our website www.tjm.com.au F-38296.docx Page 14 of 17 04/09/2024...
- Page 15 Rear bar door in line with the Rear bar. 58. Tighten all the fasteners to the relevant torque settings listed on Page 4. 20mm 25mm For product warranty please refer to our website www.tjm.com.au F-38296.docx Page 15 of 17 04/09/2024...
- Page 16 66. If not already attached, peel the backing off the “TJM Logo Sticker” (K3550) (1), and position it on the Rear bar as shown picture. 100mm For product warranty please refer to our website www.tjm.com.au F-38296.docx Page 16 of 17 04/09/2024...
- Page 17 & that, as a results of fitting the product, no vehicle components are crushed or will chafe. Check the operation of the parking sensors and radar to ensure that they are functioning correctly. For product warranty please refer to our website www.tjm.com.au F-38296.docx Page 17 of 17 04/09/2024...
