FITTING INSTRUCTIONS
Product:
Explorer Front Bumper
Vehicle:
Jeep JT Gladiator / JL Wrangler
Part No.
074ST03N36A
Australian Standards Relating to Installing Vehicle Frontal Protection Systems (VFPS): AS 4876.1-2002
a)
Do not attach V.F.P.S. to vehicle using anchorages not intended for this purpose (e.g., engine mounting bolts), other than those
specified by the V.F.P.S. manufacturer in this instruction.
b)
Do not use this product for any vehicle make or model other than those specified by the V.F.P.S. manufacturer (as above).
c)
Do not remove any plaques or labels from the V.F.P.S.
d)
Do not modify the structure of the V.F.P.S. in any way.
For product warranty please refer to our website www.tjm.com.au
F-34893.docx
Page 1 of 13
12/12/2022
Advertisement
Related Manuals for TJM Explorer 074ST03N36A
Summary of Contents for TJM Explorer 074ST03N36A
- Page 1 Do not use this product for any vehicle make or model other than those specified by the V.F.P.S. manufacturer (as above). Do not remove any plaques or labels from the V.F.P.S. Do not modify the structure of the V.F.P.S. in any way. For product warranty please refer to our website www.tjm.com.au F-34893.docx Page 1 of 13...
-

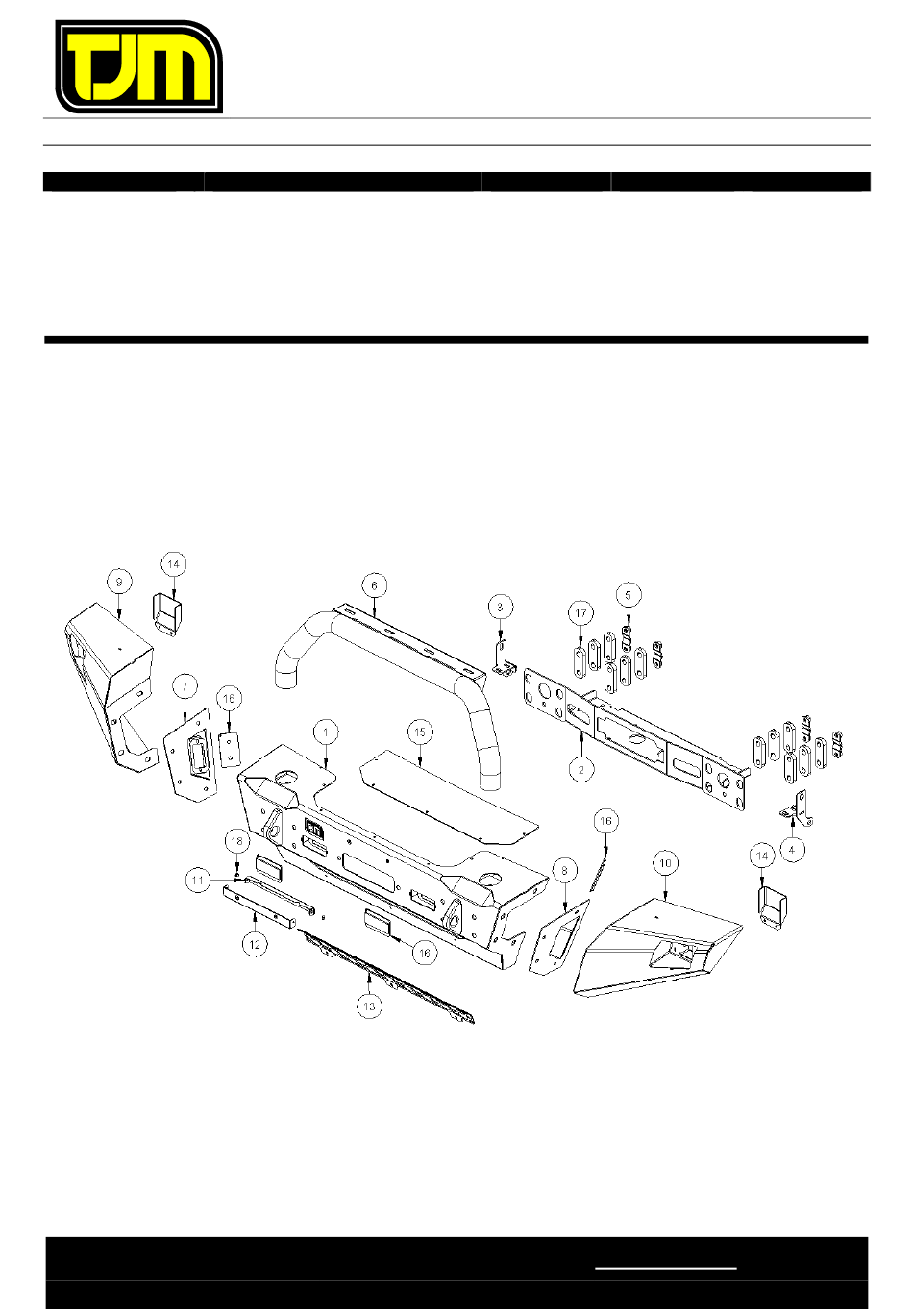

Page 2: Parts List
Number Plate Hinge Bush K1292 1/2" x Ø1-1/4” x 2.5mm Flat Washer SS M12 x 4.0 x 2.5 Spring Washer SS FACTORY FITTED TJM Logo Sticker K3550 For product warranty please refer to our website www.tjm.com.au F-34893.docx Page 2 of 13 12/12/2022... -
Page 3: Tools Required
Ensure vehicle is properly Must be worn when using cutting, drilling, or mechanical lifting aid supported before commencing power tools. grinding. required for FPS fitment. work. For product warranty please refer to our website www.tjm.com.au F-34893.docx Page 3 of 13 12/12/2022... - Page 4 • Left hand & right-hand components are determined as seated in the vehicle. • The fitment of TJM products does not nullify the OE manufacturer's operating guidelines and/or warnings. Ensure you are familiar with and adhere to the usage instructions specified by the manufacturer in the owner's manual or other official documentation.
- Page 5 2. Remove the filler panel by removing the clips RHS SHOWN (2). 3. Unclip the harness from the back of the RHS SHOWN bumper. For product warranty please refer to our website www.tjm.com.au F-34893.docx Page 5 of 13 12/12/2022...
- Page 6 M10 x 1.25 x 35mm Hex Head Bolt (1), M10 x Ø21mm x 2.0mm Flat Washer (2) & M10 x 1.25 Nyloc Nut STEP 6.2 (1). Repeat on LHS. For product warranty please refer to our website www.tjm.com.au F-34893.docx Page 6 of 13 12/12/2022...
- Page 7 (5), M6 x Ø12.5mm x 1.2mm Flat Washer (10) & M6 x 1.0 Nyloc Nut (5) into the holes along the top edge of the bar. STEP 9 For product warranty please refer to our website www.tjm.com.au F-34893.docx Page 7 of 13 12/12/2022...
- Page 8 14. Peel the backing off the double-sided tape on the “Light Blanking Plate” (F-35505) and affix to the back of the “Centre”. Repeat on LHS. For product warranty please refer to our website www.tjm.com.au F-34893.docx Page 8 of 13 12/12/2022...
- Page 9 M10 x 1.5 x 25mm Screw Button Head Socket (4), M10 x Ø21mm x 2.0mm Flat Washer (8) & M10 x 1.5 Nyloc Nut (4). Repeat on LHS. For product warranty please refer to our website www.tjm.com.au F-34893.docx Page 9 of 13 12/12/2022...
- Page 10 21. Disconnect the Rock Lights from the vehicle & install them to the “Wing Cover Plate” (F- 35500), securing them in place using fasteners supplied in the Rock Lights kit. For product warranty please refer to our website www.tjm.com.au F-34893.docx Page 10 of 13 12/12/2022...
- Page 11 26. Fit 3 x “Spacer” (F-25986) at each pair of bolts as shown on the inside of the bumper. If required, tape these into position to aid fitment also. Repeat on LHS. For product warranty please refer to our website www.tjm.com.au F-34893.docx Page 11 of 13 12/12/2022...
- Page 12 M6 x 2.5 x 1.2 Spring Washer (2) & M6 x Ø12.5mm x 1.2mm Flat Washer (2) secure the number plate mount assembly to the “Centre”. For product warranty please refer to our website www.tjm.com.au F-34893.docx Page 12 of 13 12/12/2022...
- Page 13 & that, as a results of fitting the product, no vehicle components are crushed or will chafe. 35. Check the operation of the lights to ensure that they are functioning correctly. For product warranty please refer to our website www.tjm.com.au F-34893.docx Page 13 of 13 12/12/2022...
