TJM T13 Fitting Instructions Manual

Product:
Vehicle:
Part No. 070SB13N82C
Australian Standards Relating to Installing Vehicle Frontal Protection Systems (VFPS): AS 4876.1-2002
a) Do not attach V.F.P.S. to vehicle using anchorages not intended for this purpose (e.g. engine mounting bolts), other than those
specified by the V.F.P.S. manufacturer in this instruction.
b) Do not use this product for any vehicle make or model other than those specified by the V.F.P.S. manufacturer (as above).
c) Do not remove any plaques or labels from the V.F.P.S.
d) Do not modify the structure of the V.F.P.S. in any way.
• Read instructions fully before commencing fitment.
• Left hand and Right hand components are determined as seated in
the vehicle.
• Be aware that a number of government / fleet departments require that
the tow points be painted red.
• Check for (and remove) any build up in all threads fitted to the
product.
• Ensure that the "Rated Recovery Point Label" is affixed alongside the
compliance label, in the driver's side doorjamb.
• When fitting accessories to TJM products (ie. driving lights and
aerials), ensure suitable washer plates are used under the mounting
surface that allow the accessory to be secured in a way that prevents
it from damaging the product.
• When removing protective coatings, ensure all new edges are
deburred, clean any swarf from the area and apply rust preventative
to exposed surfaces.
Bolt tensions
All bolt tensions
are as follows
unless otherwise
specified.
For product warranty please refer to our website www.tjm.com.au
File: F-11094.docx
FITTING INSTRUCTIONS

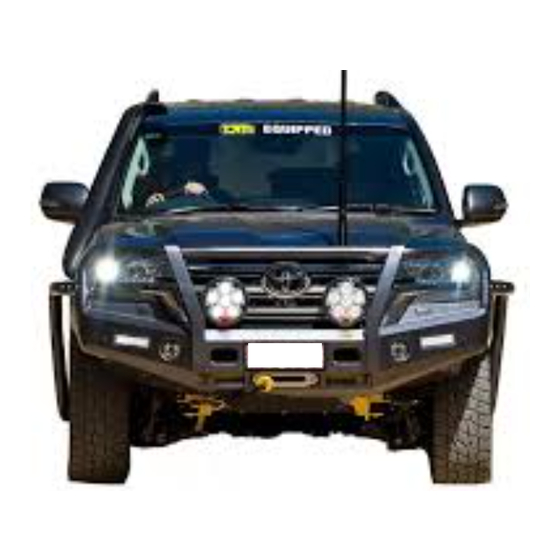

T13 Outback Frontal Protection System
Toyota LandCruiser 200
Dia. (mm)
5
6
8
10
12
Page 1 of 25
Nm ft.lbs Dia. (inch)
1/4"
5 4
5/16"
9 7
3/8"
22 16
7/16"
44 32
1/2"
77 57
Nm ft.lbs
9 7
22 15
33 27
55 43
86 66
20/10/2022
