Meech Hyperion 945IPS Operating Manual page 15

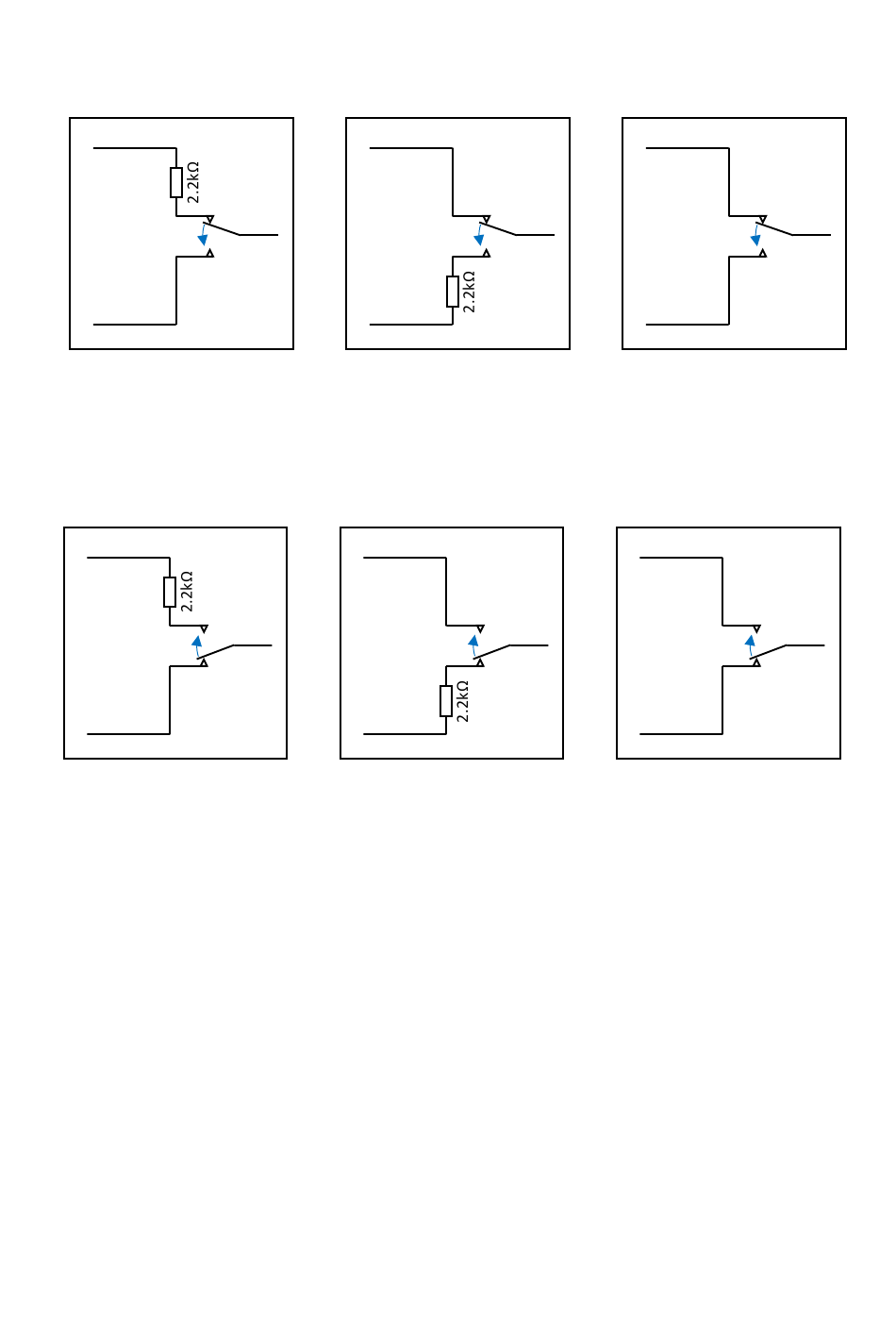

Output Drive = NPN
Alarm True = Lo
24VDC
OUTPUT
GND
Default: Can be used with
multiple devices in parallel.
Output Drive = NPN
Alarm True = Hi
24VDC
OUTPUT
GND
On power on, the output signal stays high for 60 seconds, so Alarm True=Hi may cause issues on power
** = Using NPN (Alarm True = Hi) or PNP (Alarm True = Lo) allows for multiple products to be connected
in parallel, triggering a common alert without interfering with each other's operation.
*** = Using N+P does not allow for any products to be connected in parallel.
Output Drive = PNP
Alarm True = Lo
24VDC
GND
When Alarm True = Lo, OK = 24V & Alert/Fault = 0V
Output Drive = PNP
Alarm True = Hi
24VDC
GND
cycle.
When Alarm True = Hi, OK = 0V & Alert/Fault = 24V
OUTPUT
OUTPUT
15
Output Drive = N+P
Alarm True = Lo
24VDC
OUTPUT
GND
Output Drive = N+P
Alarm True = Hi
24VDC
OUTPUT
GND
