8.Monitoring

The Hyperion 945IPS continually monitors its internal health and can trigger an alarm should any
parameter fall outside a predetermined range. This includes parameters such as ion current
monitoring, meaning that the user can be alerted when an ionising bar needs cleaning.
Alarms can be monitored either via the status LED, or through the alarm outputs.

8.1.Status LED

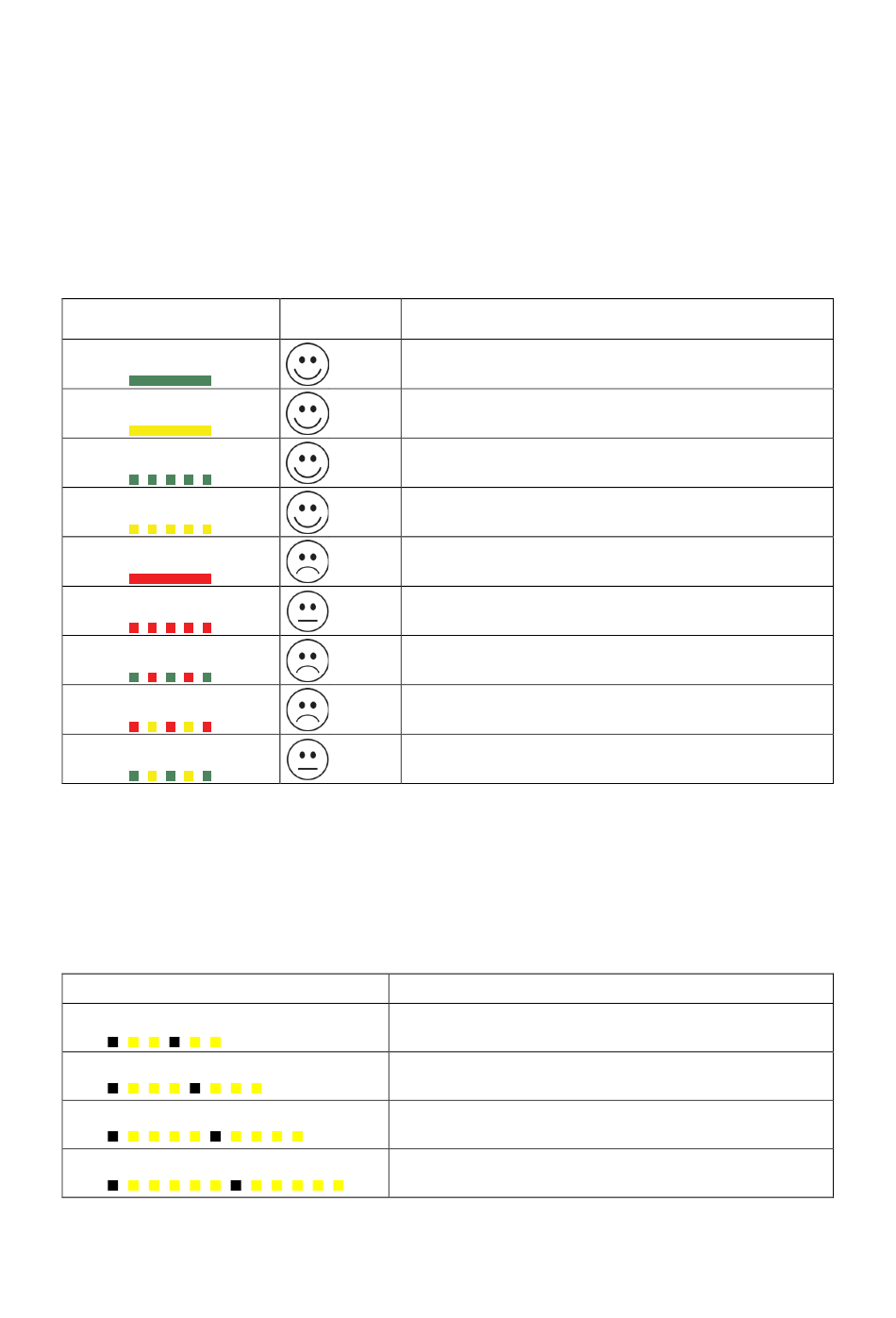

The LED colour combinations are as follows.
LED colours
Green
Yellow
Flashing green
Flashing yellow
Red
Flashing red
Flashing green/red
Flashing red/yellow
Flashing green/yellow
• Fault – The 945IPS has a fault, and the output has been shut off.
Alert – Attention may be required for the 945IPS.
•

8.1.1.Real Time Fault Monitoring codes

For the 945IPS, the following RTFM codes may be observed through a red or green LED with yellow
flashes to provide a more detailed status on the bar's health.
Below, red and green LEDs are shown as black for simplicity.
Yellow flashes
Alarm status
Normal Normal operation
Normal Standby
Normal
Normal
Fault
Alert
Fault
Fault
Alert
2
3
4
5
Description – corrective actions
Normal operation –
BarMaster/SmartControl connected
Standby –
HV output is off, BarMaster/SmartControl connected
HV (Overcurrent) –
Check outputs
Low ion current –
Check for contamination
Internal issue –
Restart the device
Real Time Fault Monitoring (RTFM) –
See table below
Real Time Fault Monitoring (RTFM) –
See table below
Description – corrective actions
HV output:
Over current – Reduce output load
24VDC power supply:
Under voltage – Check power supply
24VDC power supply:
Over voltage – Check power supply
Internal temperature:
Too high – Ensure bar has sufficient cooling
