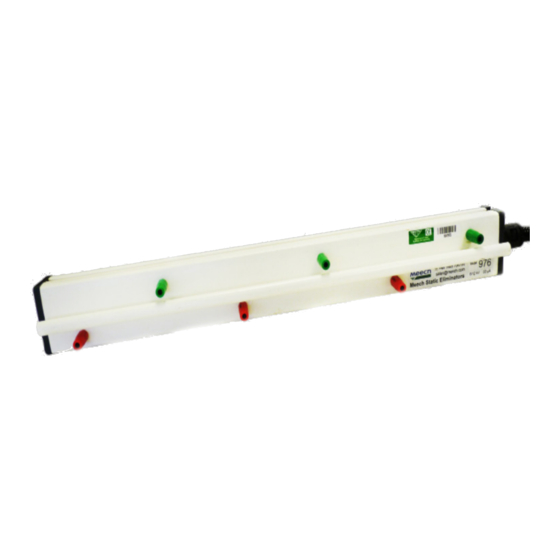

Meech 976 Operating Manual

Long range dc bar
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating
Manual
MODEL 976
Long Range DC Bar

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 976 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Meech 976

Summary of Contents for Meech 976

  • Page 1 Operating Manual MODEL 976 Long Range DC Bar...

  • Page 3: Table Of Contents

    Products shown in this document may be covered by one or more patents, patents applied for and/or registered designs and/or trade marks. For further information please refer to our Head Office or visit www.meech.com. © Meech Static Eliminators Ltd., 5.01,2012...

  • Page 5: Introduction

    The extruded profile has been designed to enhance emitter life and allow easy cleaning while giving linear strength. The profile incorporates “T” slots on three faces to provide universal mounting points. The Meech Model 976 is powered by any of the range of Meech Pulsed DC Controllers.

  • Page 6: Unpacking And Inspection

    Unpacking And Inspection Your Model 976 Bar was carefully packed at the factory in a container designed to protect it from accidental damage. Nevertheless, we recommend careful examination of the carton and contents for any damage. If damage is evident, do not destroy the carton or packing material and immediately notify the carrier of a possible damage claim.

  • Page 7: Installation

    It should typically be between 300mm and 600mm away from the target area. The Meech Model 976 can be connected to any of the Meech range of Pulsed DC Controllers.
  • Page 8 The shockless emitter pins produce ions of positive and negative polarity. These, because of the product’s unique design, propel themselves away from the emitter points towards the target area. Optimum static elimination can be achieved by adjustment of the “Rate” (frequency of pulsing) and the “Balance”...
  • Page 9 I.E. a) If the static charge is known to be positive the balance should be adjusted towards negative on the controller. b) If the static charge is known to be negative the balance should be a adjusted towards positive on the controller.

  • Page 10: Maintenence

    Maintenance Ionisers require periodic cleaning. During normal operation, dirt will build-up on the emitter pins and upon the body of the ioniser. This will cause a reduction in performance. Typically, weekly cleaning is sufficient. However, equipment used in some heavy contamination areas, such as gravure printing or where plastic fumes are present, may require daily cleaning.
  • Page 11 Let dry for a minute and replace the outer cap. Re-assemble the emitter pin onto the bar and turn back on. If on inspection, the emitter pins of the Bar are very dirty or damaged they should be replaced. Replacement emitters are available from Meech Static Eliminators Ltd. or your local Meech Distributor.

  • Page 12: Fault Finding

    Fault Finding Tests must be completed by a qualified electrical engineer. If in doubt contact the Meech head office or your local distributor. CAUTION: Whilst no danger to personnel exists, it is essential that any high voltage ionising equipment, makes no contact with water or water based fluids.
  • Page 13 Disconnect all bars from the controller. Reconnect the supply and switch on the unit.
  • Page 14 Using a high voltage probe (RS type 610 281) and meter (RS type 610 950) measure the voltage on each of the output sockets. The reading should be at minimum power 4kV and at maximum power 8kV Having checked the power supply, reconnect one Model 976 Bar.
  • Page 15 Using a high voltage probe (RS 610 281) and meter (RS 610 590) measure the voltage on the pins of the bar. This voltage should be between 3 and 6kV. If there is more than one bar to test, disconnect the first item and repeat the above steps.
  • Page 16 If no meter and probe is available, then a fast and simple test is to simply short a pin of one of the ionising bars to earth using a length of insulated electrical cable bared back 3 mm at either end. Connect one end of the cable to the earth post of the bar.

  • Page 17: Repairs And Warranty

    Repairs And Warranty The Meech 976 Bar is warranted by Meech Static Eliminators Ltd. to the original purchaser against defects in material and workmanship for one year after purchase. Should any malfunction occur, please return the bar directly to Meech Static Eliminators Ltd.

  • Page 18: Technical And Construction

    Technical and Construction Output voltage : Up to 10kV D.C. Operating current : Less than 50 micro amps. Max temperature : 60°C. Weight : 400g per 300 mm Cable : 2 metres as standard shielded in flexible conduit longer lengths can be specified when ordering. Dimensions : 50mm x 50mm x length required.(Max 4000mm) Construction...

  • Page 19: Ce Approval

    CE Approval A CE Declaration of Conformity for this product exists in respect of the Low Voltage Directive:72/23/EEC (“LVD”) & Electromagnetic Compatibility Directive: 89/336/EEC (“EMCD”) Health and Safety Emission of Ozone: Considerably below international standard of 0.1ppm.
  • Page 20 Meech International (UK) Meech Static Eliminators USA Inc Meech Elektrostatik SA 2 Network Point 1298 Centerview Circle Kaiserbaracke 66 Range Road, Witney Akron, OH 44321 B-4780 St.Vith OX29 0YN, UK Belgium Tel: +44 (0)1993 706700 Tel: +1 330 564 2000 / 1 800 232 4210...
