Meech Hyperion 314IPS Operating Manual

Hygienic short-range dc bar

Advertisement

Quick Links

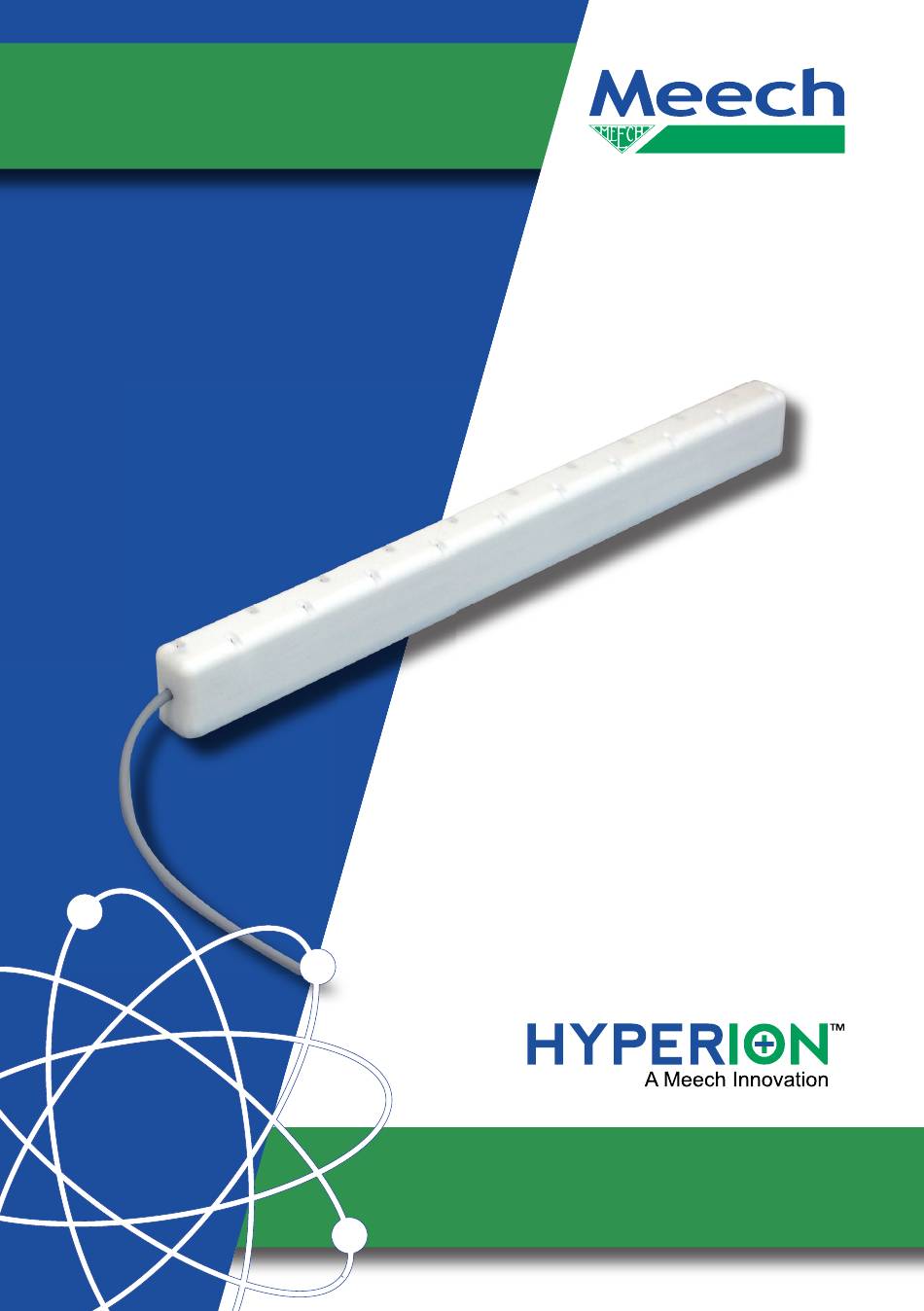

Opera� ng Manual
Hyperion 314IPS
Hygienic Short-Range DC Bar
So� ware Version:3.02 Copy Version:1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hyperion 314IPS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Meech Hyperion 314IPS

  • Page 1 Opera� ng Manual Hyperion 314IPS Hygienic Short-Range DC Bar So� ware Version:3.02 Copy Version:1...
  • Page 3: Table Of Contents

    Dual Alarm Lines – Clean Pin Alert and Fault Output Divider Mounting Installation Mechanical Installation Electrical Installation Connection using Meech 24V DC power supply Connection using customer’s own power supply Dual Alarm Alert – Remote Monitoring Alarm Logic Level Output Drive Operation...
  • Page 5: Introduction

    The Hyperion BarMaster remote programmer and SmartControl Touch are available for purchase from the Meech network: Visit www.meech.com to fi nd your nearest Meech offi ce or distributor for further product information.
  • Page 6: Unpacking And Inspection

    Unpacking And Inspection Your Hygienic 314IPS bar was carefully packed at the factory in a container designed to protect it from accidental damage. Nevertheless, we recommend careful examination of the carton and contents for any damage. If damage is evident, do not destroy the carton or packing material and immediately notify the carrier of a possible damage claim.
  • Page 7: Feature And Benefits

    Features and Benefits Low Voltage Wiring and Integrated Power Supply 314IPS Hygienic Bar - Cable The 314IPS Hygienic is powered by 24V DC via a 4-pin M8 Cable. Shockless Emitters The Titanium emitter pins on the 314IPS are resistively coupled to the high voltage supply.
  • Page 8: Clear Pin Alert And Fault Led

    Clean Pin Alert and Fault LED 314IPS Hygienic Bar - Red Fault LED The local LED illuminates constant green to indicate that the bar is on and working correctly. Red fl ashing LED shows that bar is dirty and needs cleaning. Solid red illumination indicates a fault with the high voltage output.
  • Page 9: Divider

    Cleaning Recesses Cleaning Recesses The 314IPS is designed to operate in clean, hygienic environments. To maximise the interval between cleaning, the design incorporates a unique feature surrounding each high voltage pin, which increases the tracking distance between the two rows of pins. It is important to clean this area during cleaning operations.
  • Page 10: Installation

    Installation Mechanical Installation CAUTION The 314IPS Bar should only be installed in the manner which it is designed for. If the 314IPS Bar is used in any other way than instructed in this manual, it will be considered improper use. To install the 314IPS Bar the provided M5 female mounting points need to be used.
  • Page 11 The bar should also not be placed with the target over a conductive/grounded object. This will hamper the ionisation performance and unsatisfactory results may be seen. Figures below illustrate the correct method of installing in these locations. Good positi oning away from grounded roller Bad positi oning over roller Good positi oning away from frame Bad positi oning over metal frame...
  • Page 12: Electrical Installation

    WARRANTY. Connection using a grounded 24V DC power supply. E.g. Meech part number A900IPS-SM2MS. Meech 24V DC supplies are grounded internally. They are supplied with a three  wire IEC C5 cable. The ground connection must be correctly connected at the mains connection.
  • Page 13: Connection Using Meech 24V Dc Power Supply

    Connection using Meech 24V DC power supply 314IPS Hygienic Bar with cable Meech 24V DC supplies are grounded internally. It is important that the mains connection offers a ground connection. Two-pin outlets without a ground connection must not be used.
  • Page 14: Connection Using Customer's Own Power Supply

    Connection using customer’s own power supply It is the customer’s responsibility to check that the 24V power supply they will be using is grounded. The 24V supply should be protected with a 1 Amp fuse. Dual Alarm Alert – Remote Monitoring Remote monitoring of the need to clean the bar is provided by the output signal on pin 2 (white) and fault alert is provided on pin 4 (black).
  • Page 15: Alarm Logic Level

    Alarm Logic Level This is given by the configuration of the “Alarm True” setting using the BarMaster or SmartControl Touch. Alarm True = hi This means the logic on both the alarm pins is active high. Alarm True, Hi Logic Alarm True = lo This means the logic on both the alarm pins is active high.
  • Page 16: Output Drive

    Output Drive There are 3 different output drive options which are designed to fulfil the vast majority of user requirements and to allow easy integration to PLC equipment. Option 1 - NPN Transistor-driven switch which presents a pull-up resistor to 24VDC on the alarm pin. This configuration is the same for both alarm pins (pin-2 and pin-4).
  • Page 17 Option 2 - PNP Transistor-driven switch which presents a pull-down resistor to GND on the alarm pin. This configuration is the same for both alarm pins (pin-2 and pin-4). 2.2kΩ Simplified diagram of PNP output (internally in bar) Logic Table Alarm True = Hi Start State Solid Green...
  • Page 18 Option 3 - N+P This option presents the combination of both of the previous cases, NPN and PNP, however, the alarm lines are hard-driven to either 24VDC or GND.This configuration is the same for both alarm pins (pin-2 and pin-4). Simplified diagram of N+P output (internally in bar) Logic Table Alarm True = Hi...
  • Page 19: Operation

    Operation Having connected the M8 connector to the bar, power up the 24V supply and check for a green constant LED on the bar. This indicates that the bar is running correctly with a good ion output. Caution Always turn off the 24V supply before connecting or disconnecting the M8 connector. Failure to do so could result in stored charges giving a small electric shock.
  • Page 20: Maintenance

    Maintenance Ionising bars become contaminated with usage. Dirt build-up on the body of the ioniser and, particularly on the pins, will cause a drop in performance. To get the best from your bar, it should be cleaned as part of regular machine maintenance. If regular cleaning is not carried out, the bar will detect the drop in performance and trigger the Clean Pin alert.
  • Page 21: Fault Finding

    Status of the LED (i.e., solid green, flashing red, solid red, flashing green) Please provide a photo of the equipment as it is installed A description and a photo or video of the problem you are experiencing The action you want Meech to take e.g., repair, replace, warranty etc.
  • Page 22: Led Status

    If the Ion level is well below the alarm level % the Ion output, it will shut down and a solid red LED will show. Should the solid red LED persist, connect your BarMaster and follow the Troubleshooting section or contact your local Meech distributor.
  • Page 23: Warning

    Switch off power supply and clean as described in the Maintenance section. Solid Red Likely cause Abnormal output current detected. Action Check installation for metallic objects on the emitter pins. Should the solid Red LED persist, Contact your Meech distributor.
  • Page 24: Repairs And Warranty

    Repairs And Warranty The Meech 314IPS Bar is warranted by Meech Static Eliminators Ltd. to the original purchaser against defects in material and workmanship for two years after shipment. The 314IPS requires a grounded 24V DC supply. The 0V line must be connected to ground.
  • Page 25: Technical And Construction

    Technical and Construction Dimensions (W x H) 25mm x 38mm Maximum Length 920mm Operating Range 20mm - 150mm Weight 1.7kg/metre Construction PTFE (Body and Base) 2 x M5 x 6mm Female Locations for lengths 0240mm; 0360mm and Mounting 0560mm. 4 x M5 x 6mm Female Locations for 0920mm length.
  • Page 26 Technical Drawing...
  • Page 27 Technical Drawing...
  • Page 30 Gábor László utca 2 Budapest 1041 Hungary Tel: +36 1 7977039 / +36 30 2803334 Email: ce@meech.com View and save a digital version of this operati ng manual by © Meech Interna� onal 2021 following the QR code or visiti ng www.meech.com/downloads:...
