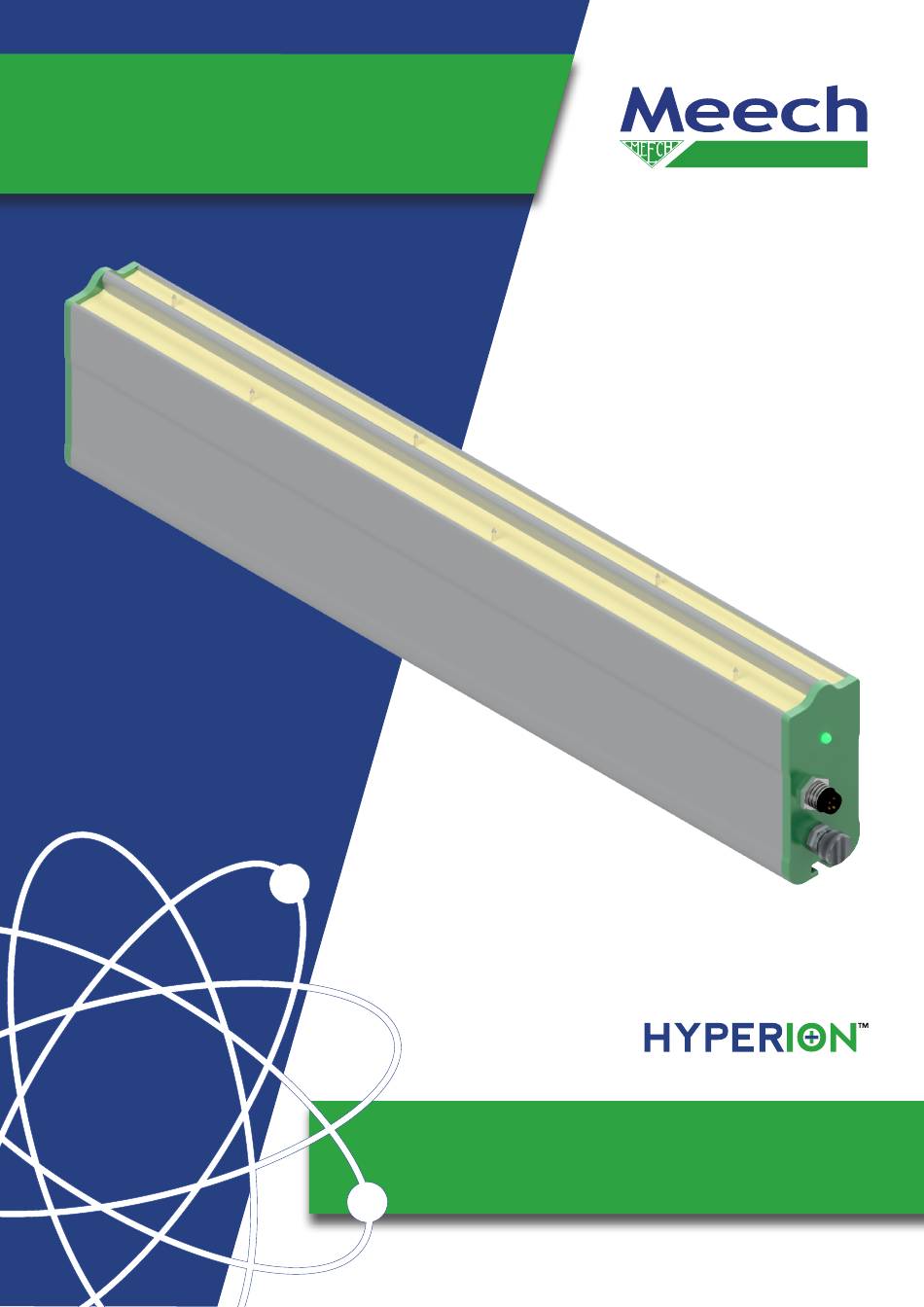

- Page 1 Operating Manual A Meech Innovation Hyperion 945IPS Pulsed DC Ionising Bar...
-
Page 2: Table Of Contents
15. Repairs & warranty ........................20 Products shown in this document may be covered by one or more patents, patents applied for and/or registered designs and/or trademarks. For further information, please refer to our head office or visit www.meech.com. M0040 – REV2 CN0558... -
Page 3: Safety Instructions
1.Safety instructions Before using this product, read the following safety and operating notes to ensure your own personal safety and to help protect your equipment. Failure to do so could result in injury. Connected equipment may require additional safety instructions. Observe all safety instructions for additional equipment before operating. -
Page 4: General Safety
Before installing or performing maintenance on the equipment, ensure the system is • electrically isolated. Failure to do so could result in injury. Check the equipment and cables for any damage. If damaged, contact your local Meech • representative before continuing. -
Page 5: Introduction
2.Introduction The Hyperion 945IPS is powered from a 24VDC power supply and produces an output of up to ±15kV, designed for use in short to mid-range applications (150 to 600mm). Settings & configurations can be set with the following optional extra products: BarMaster controller or SmartControl Touch. -
Page 6: Package Contents
1x Hyperion 945IPS Pulsed DC Ionising Bar A945IPS-XXXX Mounting hardware 1x Quick start guide M0041 3.1.Options The following items can be purchased from Meech to supplement & provide extra functionality to the 945IPS. Item Product code Switchmode power adaptor A900IPS-SM2MS... -
Page 7: Component Overview
5.Component overview The 945IPS comprises of the following components: 1. Ionising emitter pins 2. Status LED 3. M8 4-pin socket 4. M4 earth post 5. Mounting channel 6. Mounting hardware Each component is highlighted in the image below. Major components of the 945IPS bar Caution –... -
Page 8: Installation
6.Installation 6.1.Mechanical installation The 945IPS must be mounted securely using the supplied M4 hardware, which should be positioned along the bar as evenly as possible. Where this is not possible, a maximum of 300mm should be between each bracket and a minimum of two brackets must be used. Use a 7mm spanner to tighten the M4 mounting hardware nuts To ensure optimum performance, the bar must be positioned so there are no metallic objects or obstructions between it and the target material. -
Page 9: Electrical Installation
6.2.Electrical installation The following sections detail how to directly connect the 945IPS bar to a power supply, BarMaster or SmartControl using the M8 connector on the end of the bar. Notice – Before making any connections, ensure the power supply is electrically isolated and switched off. - Page 10 2. Remove the M4 thumb nut from the earth post. 3. Fit one end of the earth cable onto the earth post and refit the M4 thumb nut.
- Page 11 4. Connect the 24VDC supply cable into the 24VDC input port.
-
Page 12: Grounding & 24Vdc Supply
The 945IPS must be grounded through the power supply, as well as the M4 earth post on the unit. 7.1.Powering using a Meech 24VDC power supply This refers to the use of a Meech A900IPS-SM2MS 24VDC power supply to power the 945IPS, which is grounded internally & supplied with an IEC C5 cable. -
Page 13: Monitoring
8.Monitoring The Hyperion 945IPS continually monitors its internal health and can trigger an alarm should any parameter fall outside a predetermined range. This includes parameters such as ion current monitoring, meaning that the user can be alerted when an ionising bar needs cleaning. -
Page 14: Electronic Alarms
8.2.Electronic alarms 8.2.1.Remote monitoring Remote monitoring is provided by Pins 2&4 of the 24VDC input port. These signals output • approximately 0V/24V and are suitable for direct connection to a PLC input, or to control an external 24V relay. • On bar power-up, Pins 2&4 will remain in Hi state for up to 60 seconds before they are used as outputs. - Page 15 Output Drive = NPN Output Drive = PNP Output Drive = N+P Alarm True = Lo Alarm True = Lo Alarm True = Lo 24VDC 24VDC 24VDC OUTPUT OUTPUT OUTPUT Default: Can be used with multiple devices in parallel. When Alarm True = Lo, OK = 24V & Alert/Fault = 0V Output Drive = NPN Output Drive = PNP Output Drive = N+P...
-
Page 16: Operation
9.Operation When 24VDC is supplied to the bar through the M8 connector, the status LED will illuminate green to indicate it is running correctly with a good ion output. 9.1.Output setup The 945IPS has variable outputs that can be monitored and adjusted using a BarMaster or SmartControl, to ensure optimum performance. -
Page 17: Technical & Construction Data
10.Technical & construction data 300 to 3900mm x 30mm x 67mm Dimensions (LxWxH) Approx. 0.9kg/metre Weight Maximum ambient temperature 60 ‘T’ slot with M4 x 35mm studs Mounting To comply with UL 62368-1, the 945IPS must be mounted at a height Mounting height ≤2m 150 to 600mm... -
Page 18: Technical Drawings
11.Technical drawings For additional technical drawings, contact Meech customer services at customerservice@meech.com, providing the model code (see section 3). - Page 19 DIMENSIONS IN MM DO NOT SCALE MATERIAL : CHECKED BY : Fax: +44 (0) 1993 776977 THIS DOCUMENT AND THE INFORMATION THEREIN IS THE PROPERTY OF MEECH INTERNATIONAL AND 'Meech International' is a trading style email: sales@meech.com CRITICAL TO FUNCTION (CTF)
-
Page 20: Maintenance
15.Repairs & warranty The Hyperion 945IPS Pulsed DC Ionising Bar is warrantied by Meech International Ltd. to the original purchaser against defects in material and workmanship for 2 years after shipment. - Page 21 Meech CE Gábor László utca 2 Budapest 1041 Hungary Tel: +36 1 7977039 / +36 30 2803334 Email: ce@meech.com View and save a digital version of this operating manual by © Meech International 2025 following the QR code or visiting www.meech.com/downloads:...
