- Page 1 Operating Manual Hyperion 971IPS Hyperion 929IPS Long-Range DC Bar Mid-Range DC Bar...
-
Page 3: Table Of Contents
Contents Introduction Unpacking and Inspection Contents Options Features of Hyperion 929IPS Installation Operation Maintenance Fault Finding Troubleshooting Repairs and Warranty Technical Characteristics UL Approval CE Approval Health and Safety Technical Drawing Products shown in this document may be covered by one or more patents, patents applied for and/or registered designs and/or trade marks. -
Page 5: Introduction
Additionally, the lon Current alarm setting can be changed to guarantee the required performance levels on critical processes. The Hyperion BarMaster remote programmer is available for purchase from the Meech network: Visit www.meech.com to find your nearest Meech office or distributor for further product information. -
Page 6: Unpacking And Inspection
Unpacking And Inspection Your Hyperion 929IPS bar was carefully packed at the factory in a container designed to protect it from accidental damage. Nevertheless, we recommend careful examination of the carton and contents for any damage. If damage is evident, do not destroy the carton or packing material and immediately notify the carrier of a possible damage claim. -
Page 7: Features Of Hyperion 929Ips

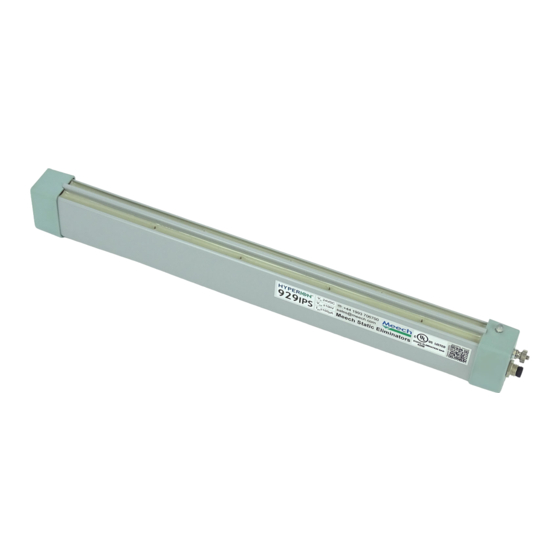

Features and Benefits of Hyperion 929IPS Low voltage wiring and Integrated Power Supply The 929IPS is powered by 24V DC via a 4-pin M8 Connector. Shockless Emitters The Titanium emitter pins on the 929IPS are resistively coupled to the high voltage supply. - Page 8 Clean Pin Alert LED The local LED illuminates green to indicate that the bar is on and working correctly. Red flashing LED shows that bar is dirty and needs cleaning. Solid red illumination indicates a fault with the high voltage output. Green - OK „...
- Page 9 Divider The 929IPS is designed to operate in dirty, factory environments. To maximise the interval between cleaning the bar features a divider to increase the surface tracking distance between the two rows of high voltage pins. It is important to clean this area during cleaning operations.
-
Page 10: Installation
Installation Mechanical Installation The 929 is a short to mid-range bar. Dependent on the application, the bar will be mounted between 50mm and 500mm from the target surface. The bar should be mounted securely, using all the M4 T-bolts provided with the bar. Correct positioning of the bar is vital for effective static control. - Page 11 When installed at short range over a web or sheet, the bars must be positioned away from surfaces and rollers, as shown in the following diagrams. Your Meech distributor will be able to assist with questions regarding positioning of your equipment.
- Page 12 Failure to do so, will result in damage to the bar or the 24V supply and will void the warranty. A grounding post on the bar is provided for this purpose. Meech recommend that, for certainty, the bar is grounded using this post, in addition to using a grounded 24V DC supply.
- Page 13 Connection using Meech 24V DC power supply Meech 24V DC supplies are grounded internally. It is important that the mains connection offers a ground connection. Two-pin outlets without a ground connection must not be used, unless the ground post on the 929IPS bar is connected to ground.
- Page 14 PLC Wiring M8 Pin 1 24VDC 10kΩ Pull up M8 Pin 2 Output 0V, 24V M8 Pin 3 Output Signal Voltage Normally Open Output Matrix Normally Closed Output Matrix 24V Supply 24V Supply 24V Supply 24V Supply Power ON Power OFF Power ON Power OFF OK (Green LED)
-
Page 15: Operation
Operation Having connected the M8 connector to the bar, power up the 24V supply and check for a green constant LED on the bar. This indicates that the bar is running correctly with a good ion output. Caution Always turn off the 24V supply before connecting or disconnecting the M8 connector. Failure to do so could result in stored charges giving a small electric shock. - Page 16 Before cleaning, ensure that the equipment is switched off. Emitter pins can be cleaned very effectively with a brush. A dry toothbrush is ideal. Ionising bars will need periodic wiping to clean grey deposits from the surface of the bar. A cloth moistened with a small amount of IPA or methylated spirits is recommended.
-
Page 17: Fault Finding
Fault Finding To reduce the time it takes to resolve a problem with a Hyperion product, the following process must be completed before requesting assistance from Meech. The information below shows what is required for a 929IPS bar however, the same process can be used for any of the Hyperion range of products. - Page 18 Please provide a photo of the equipment as it is installed A description and a photo or video of the problem you are experiencing The action you want Meech to take e.g. repair, replace, warranty etc. LED Status When the equipment powers on, the LED will show green whilst the system monitors the bars performance.
-
Page 19: Troubleshooting
Check installation for metallic objects on the emitter pins. Should the solid red LED persist, contact your Meech distributor Warning Do not reset the Ion Reference without cleaning the ionising bar first. Resetting the Ion Reference with a low or 0% reading will provide a green LED, but will only mask any problem with the system. -
Page 20: Repairs And Warranty
Repairs And Warranty The Meech 929IPS Bar is warranted by Meech Static Eliminators Ltd. to the original purchaser against defects in material and workmanship for two years after shipment. The 929IPS requires a grounded 24V DC supply. The 0V line must be connected to ground. -
Page 21: Technical Characteristics
Adjustable with BarMaster from 80:20 to 20:80 Pos:Neg Environmental Protection IP66 Max Ambient Temperature 60 °C UL Approval Static elimination bar Hyperion 929IPS has been investigated by UL in accordance with the following standard(s): UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07. operating manual ational STATIC ELIMINATION BAR... -
Page 22: Ce Approval
COPYRIGHT © MEECH STATIC ELIMINATORS THIS DOCUMENT AND THE INFORMATION THEREIN IS THE PROPERTY OF THE MEECH GROUP AND SHOULD NOT BE COPIED IN WHOLE OR PART OR USED FOR MANUFACTURE OR OTHERWISE DISCLOSED WITHOUT THE PRIOR... - Page 24 Meech International Meech Static Eliminators USA Inc Meech Elektrostatik SA Meech CE 2 Network Point 2915 Newpark Drive Kaiserbaracke 166 Gábor László utca 2 Range Road, Witney Norton, OH 44203 B-4780 St.Vith Budapest 1041 Belgium Hungary OX29 0YN, UK Tel: +44 (0)1993 706700 Tel: +1 330 564 2000 / 1 800 232 4210 Tel.: +49 (0)6555 3733 399...
