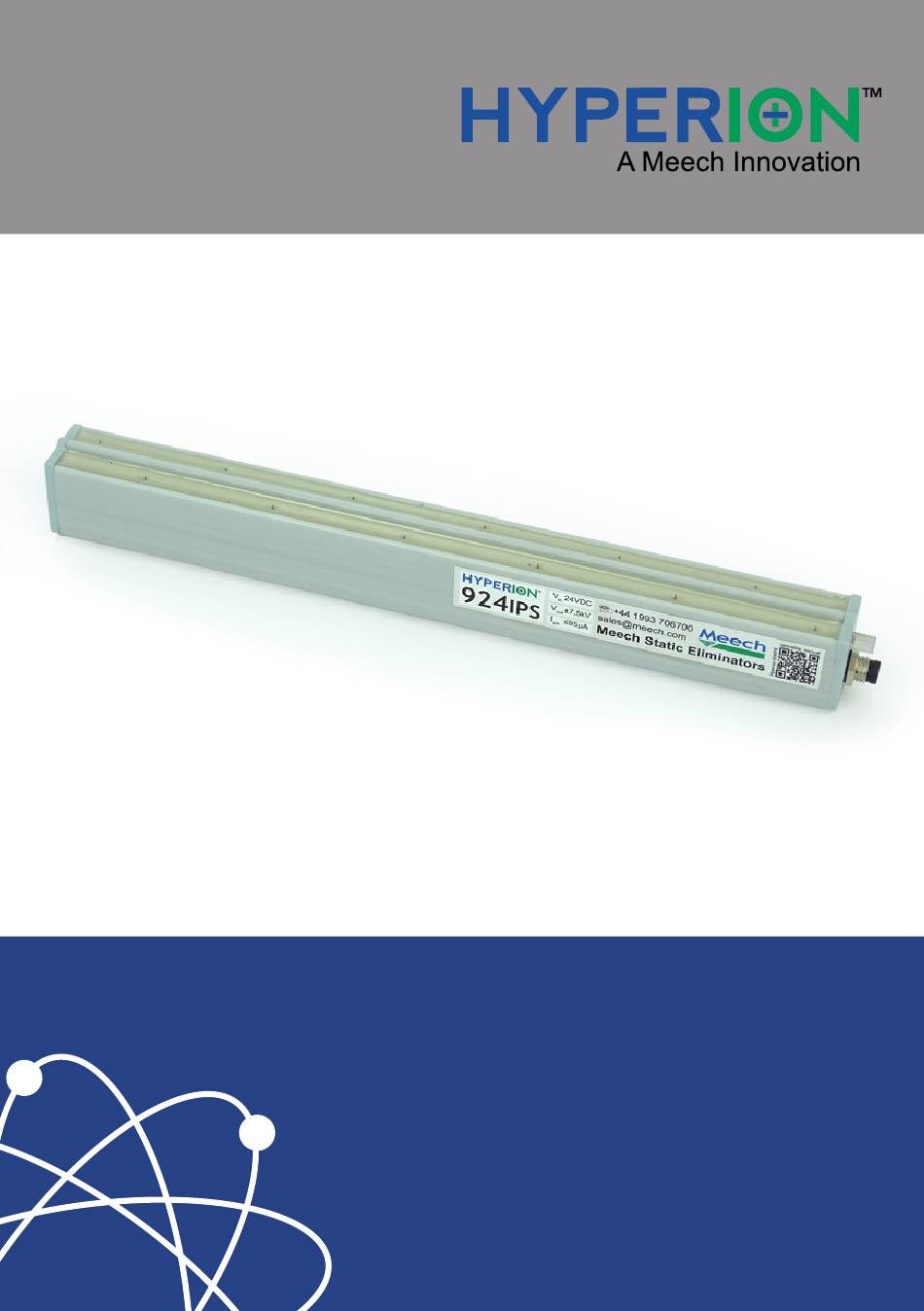

- Page 1 Operating Manual Hyperion 971IPS Hyperion 924IPS Long-Range DC Bar Short-Range DC Bar...
-
Page 3: Table Of Contents
Products shown in this document may be covered by one or more patents, patents applied for and/or registered designs and/or trade marks. For further information please refer to our Head Office or visit www.meech.com. © Meech Static Eliminators Ltd., 18.02.2016... -
Page 5: Introduction
Current alarm setting can be changed to guarantee the required performance levels on critical processes. The Hyperion BarMaster remote programmer is available for purchase from the Meech network: Visit www.meech.com to find your nearest Meech office or distributor for further product information. -
Page 6: Unpacking And Inspection
Unpacking And Inspection Your Hyperion 924IPS bar was carefully packed at the factory in a container designed to protect it from accidental damage. Nevertheless, we recommend careful examination of the carton and contents for any damage. If damage is evident, do not destroy the carton or packing material and immediately notify the carrier of a possible damage claim. -
Page 7: Features Of Hyperion 924Ips

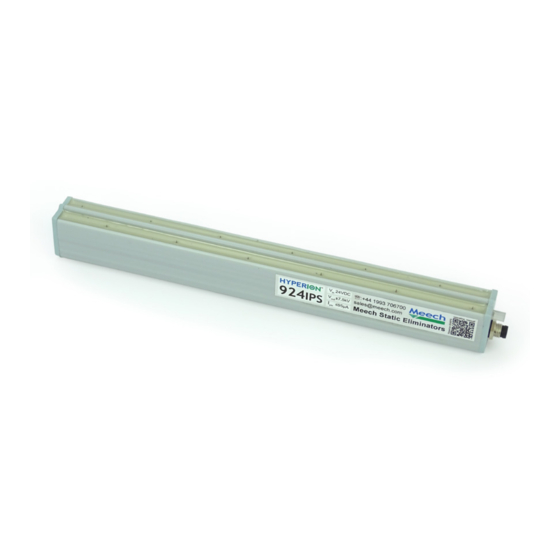

Features and Benefits of Hyperion 924IPS Low voltage wiring and Integrated Power Supply The 924IPS is powered by 24V DC via a 4-pin M8 Connector. Shockless Emitters The Titanium emitter pins on the 924IPS are resistively coupled to the high voltage supply. - Page 8 Clean Pin Alert LED The local LED flashes constant green to indicate that the bar is on and working correctly. Red flashing LED shows that bar is dirty and needs cleaning. Solid red illumination indicates a fault with the high voltage output. Green constant –...
- Page 9 Divider The 924IPS is designed to operate in dirty, factory environments. To maximise the interval between cleaning the bar features a divider to increase the surface tracking distance between the two rows of high voltage pins. It is important to clean this area during cleaning operations.
-
Page 10: Installation
Installation Mechanical Installation The 924 is a short to mid-range bar. Dependent on the application, the bar will be mounted between 20mm and 150mm from the target surface. The bar should be mounted securely, using all the M4 T-bolts provided with the bar. Correct positioning of the bar is vital for effective static control. - Page 11 When installed at short range over a web or sheet, the bars must be positioned away from surfaces and rollers, as shown in the following diagrams. Your Meech distributor will be able to assist with questions regarding positioning of your equipment.
- Page 12 0V/ Ground Black No connection Connection using Meech 24V DC power supply The switchmode power supply has a standard IEC C5 mains socket and a 2000mm HT cable to M8 Connector. A break-out wire from the switchmode power supply provides the Clean Pin Alert output signal.
- Page 13 Connection using customer’s own power supply: It is the customer’s responsibility to check that either the 24V power supply they will be using is grounded. The 24V supply should be protected with a 1 Amp fuse. Clean Pin Alert - Remote Monitoring Remote monitoring of the need to clean the bar is provided by the output signal on pin 2.
-
Page 14: Operation
External Relay Wiring 24VDC 10kΩ Pull up 20mA Relay Power Normally Open Output Matrix Normally Closed Output Matrix 24V Supply 24V Supply 24V Supply 24V Supply Power ON Power OFF Power ON Power OFF OK (Green LED) OK (Green LED) Dirty/Faulty Dirty/Faulty (Red LED) -
Page 15: Maintenance
Optimum Frequency Vs Operating Distance for 924IPS Do not use closer than 20mm Operating Distance (mm) Requires optional BarMaster Remote Programmer. Maintenance Ionising bars become contaminated with usage. Dirt build-up on the body of the ioniser and, particularly on the pins, will cause a drop in performance. To get the best from your bar, it should be cleaned as part of regular machine maintenance. - Page 16 Ionising bars will need periodic wiping to clean grey deposits from the surface of the bar. A cloth moistened with a small amount of IPA or methylated spirits is recommended. Let dry for a minute and turn back on.
-
Page 17: Troubleshooting
Maintenance section. Turn power on and Check for Green flashing Solid Red LED Likely Cause Abnormal output current detected Action Check installation for metallic objects on the emitter pins Should the solid red LED persist, contact your Meech distributor. -
Page 18: Technical Characteristics
Technical and Construction Dimensions (W x H) 22.1mm x 31.2mm Maximum Length 3960mm Operating Range 20mm – 150mm Weight 0.5kg/metre Construction FR ABS Mounting ‘T’ Slot with M4 x 20 studs Emitters Sharp titanium pins Input Current Max 500mA Input Voltage 24V DC (21-27VDC) Output Voltage Adjustable from +/- 3kV to +/- 7.5kV Pulsed DC... -
Page 19: Repairs And Warranty
Repairs And Warranty The Meech 924IPS Bar is warranted by Meech Static Eliminators Ltd. to the original purchaser against defects in material and workmanship for one year after purchase. Should any malfunction occur, please return the bar directly to Meech Static Eliminators Ltd. - Page 20 Meech International (UK) Meech Static Eliminators USA Inc Meech Elektrostatik SA 2 Network Point 2915 Newpark Drive Kaiserbaracke 66 Range Road, Witney Norton, OH 44203 B-4780 St.Vith OX29 0YN, UK Belgium Tel: +44 (0)1993 706700 Tel: +1 330 564 2000 / 1 800 232 4210...
