Diskette drive cable
A three-connector diskette drive signal cable comes attached to the
system board and to the standard 1.44-MB diskette drive.
The cable connector for a 5 1/4-inch diskette drive is keyed to fit only
in the correct position. The colored edge of the cable goes to pin 1 on
the cable connector. Align the red edge of the cable with pin 1 (the
notched end) on the drive connector.
Align the colored edge of the cable with the pin 1 side of the system
board diskette drive cable connector.

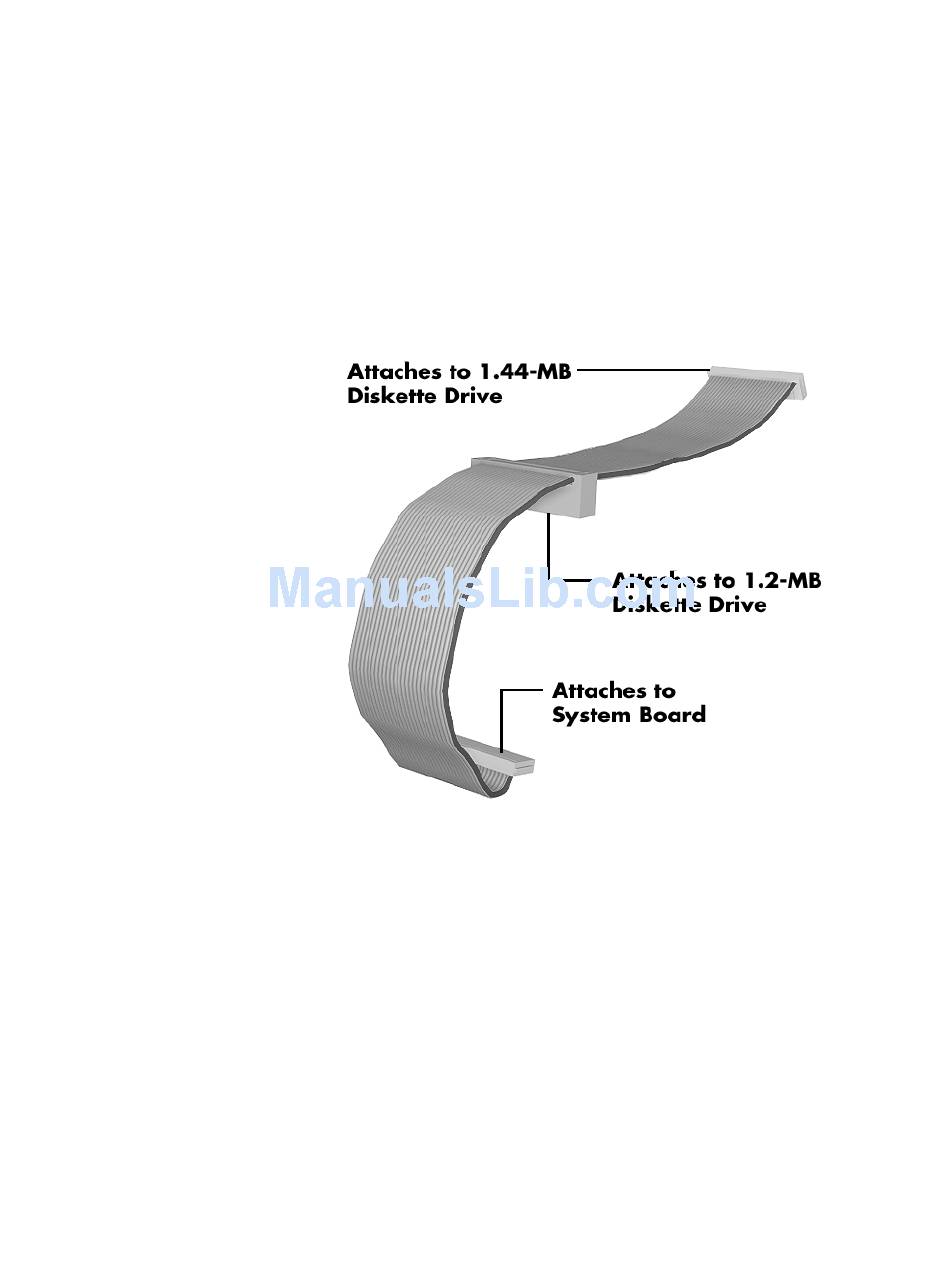

Three-connector diskette drive signal cable
Storage devices 43
