3.
4.
5.
36 System processor
Swing the socket lever down to lock the processor in the
socket.

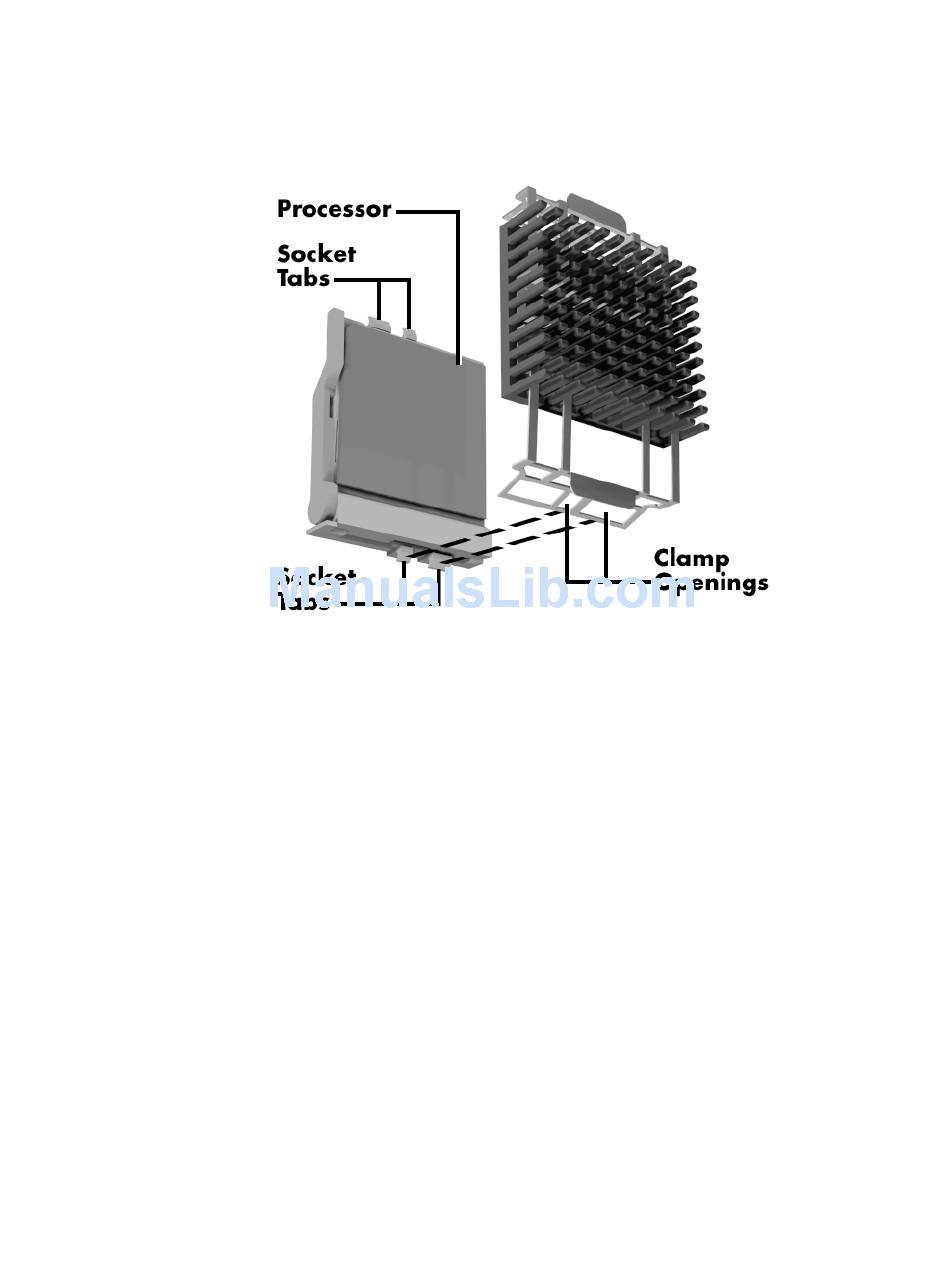

Replace the heatsink by positioning the clamp openings over
the socket tabs.
Be sure your jumper settings are set correctly for your
upgrade processor (see "Checking jumper settings" in the
"System Resources" section of this guide).
Replacing the heatsink
