System Power Cables

Power cables come from the power supply and are attached
to the standard storage devices. System power cables vary
in length and provide connector sizes to accommodate a
variety of supported storage configurations.
Power cable connectors are keyed to fit only in the correct
position.

Diskette Drive Signal Cable

A two-connector diskette drive signal cable comes attached
to the system board and to the standard 1.44-MB diskette
drive.
The installation of a second diskette drive in your system
requires the replacement of the standard two-connector
diskette drive signal cable with a three-connector diskette
drive signal cable (NEC part number 158-050561-000).
5-52 Adding Options

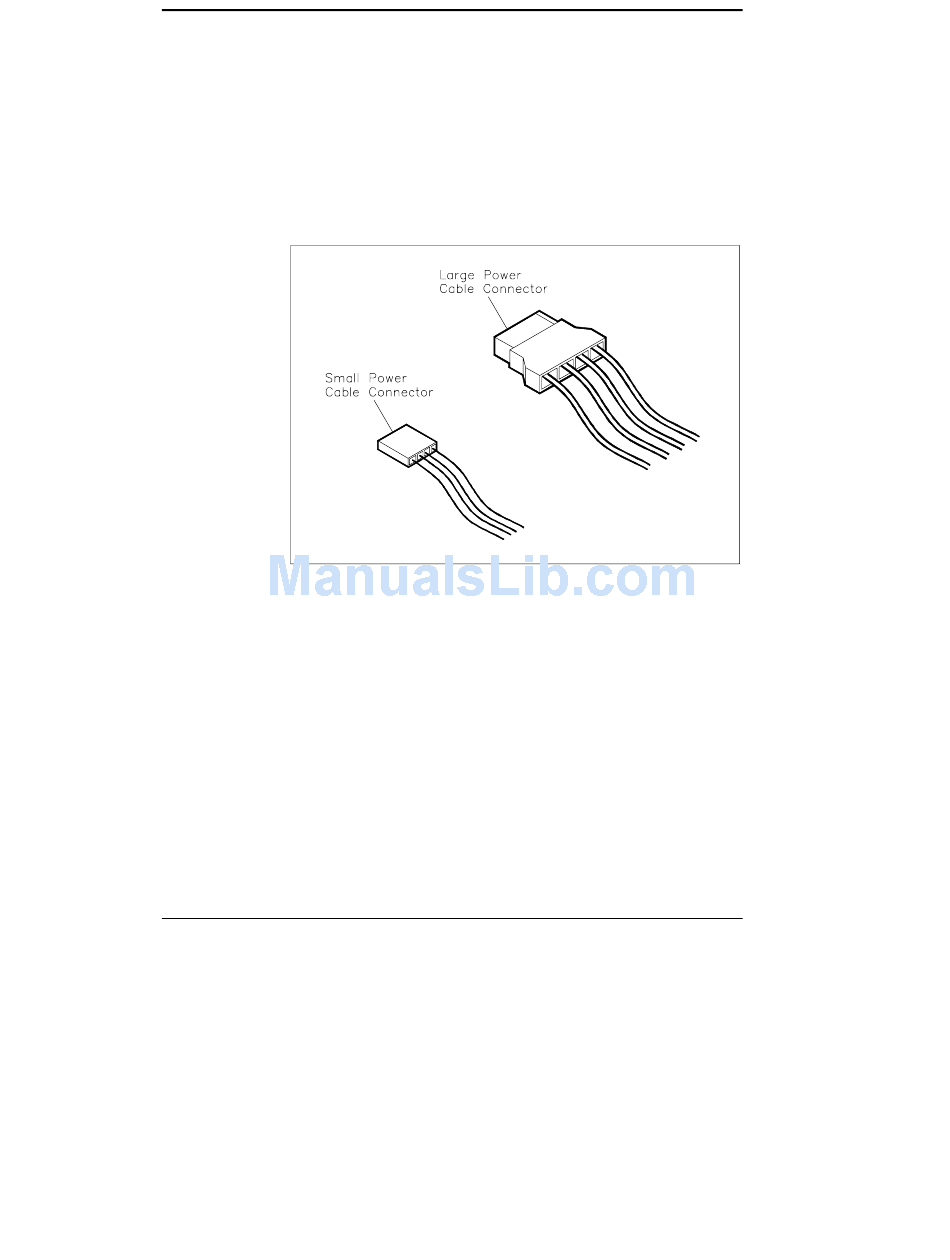

Power cable connectors
