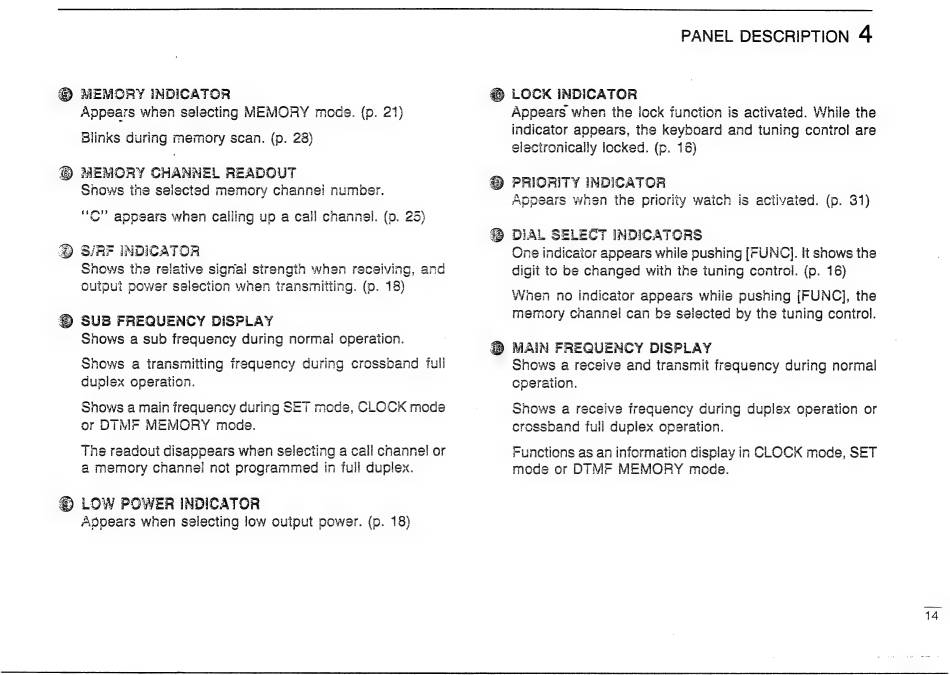

PANEL DESCRIPTION 4
LOCK INDICATOR
Appears when the lock function is activated. While the
indicator appears, the keyboard and tuning conirol are
electronically locked. (p. 18)
PRIORITY INDICATOR
Appears when the priority waich is activated. (p. 31)
DIAL SELECT INDICATORS
One indicator appears while pushing [FUNC]. it shows the
digit to be changed witn tne tuning control. (p. 16)
Wen no indicator appears while pushing [FUNC], the
memory cnannel can be selected by tne tuning control.
MAIN FREQUENCY DISPLAY
Shows a receive and transmit frequency during normal
cperaiion.
snows a receive frequency during duplex operation or
crossband fuil duplex operation.
Functions as an information display in CLOCK mode, SET
mode or DTMF MEMORY mode.
® MEMORY INDICATOR
Appears when selecting MEMORY mode. (p. 21)
Blinks during memory scan. (p. 28)
D MEMORY CHANNEL READOUT
Snows the selected memory channel number.
"C" appears when calling up a call channel. (
® S/RF INDICATOR
Shows the relative signal strength when r 9
output power selection when transmitting. 3 18(
$ SUB FREQUENCY DISPLAY
Shows a sub frequency during normai operation.
Shows a transmitting frequency during crosspand Tull
duplex operation.
Snows a main frequency during SET mode, CLOCK mode
or DIMF MEMORY mode.
Tne readout disappears when selecting a call channe! or
a memory channei not in full duplex.
LOW POWER INDICATOR
Appears when selecting low output power. (p. 18)
